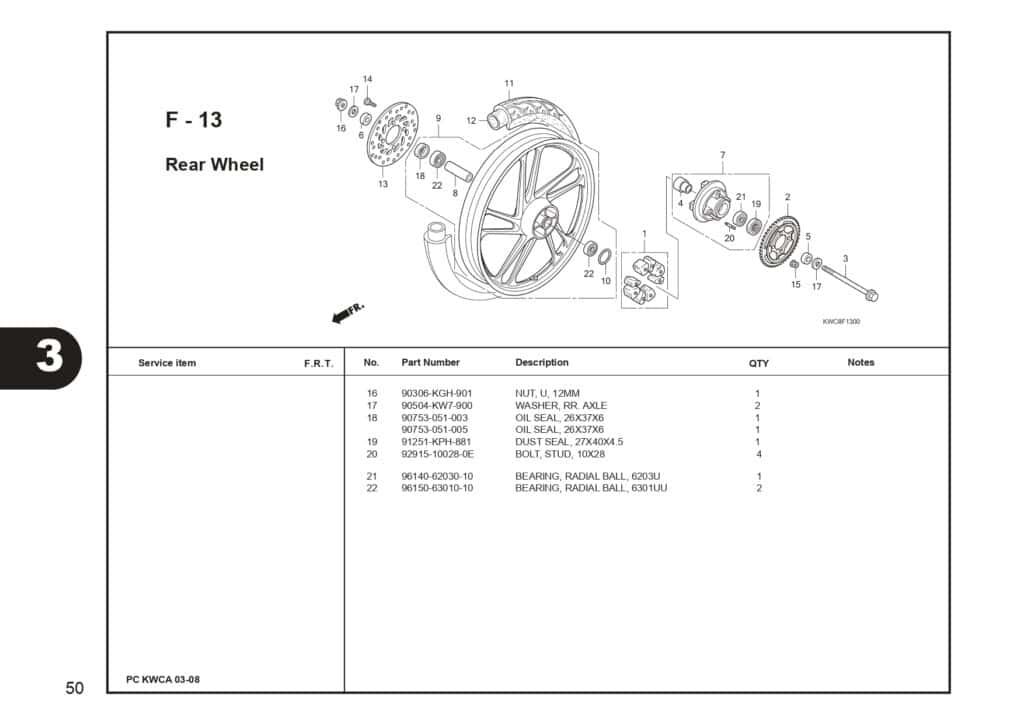

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER DAMPER RR SET | 41241KW7882 |
|
| 2 | SPRKT COMP FINAL DRIVEN 42T | 41200KWC90Z |
|
| 3 | AXLE RR WHEEL | 42301KGH901 | - |
| 4 | SLEEVE RR WHEEL | 42303KBA901 |
|
| 5 | COLLAR L RR WHEEL SIDE | 42304KBA921 | - |
| 6 | COLLAR R RR WHEEL SIDE | 42313KGH901 |
|
| 7 | 42615KWC900 | 42615KWC900 | - |
| 8 | COLLAR RR AXLE DISTANCE | 42620KW7881 |
|
| 9 | CAST, WHEEL RR (MA AX GY) | 42601KWC901 | - |
| 10 | O-RING 40.5X3 | 42653001004 |
|
| 11 | TIRE RR TT (80/90-17) | 42711KPH881 |
|
| 12 | TUBE TIRE (2.75-17) | 2751700000NR00 |
|
| 13 | DISK RR BREAKE | 43351KTMN31 |
|
| 14 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 15 | NUT U10MM | 90304KGH901 |
|
| 16 | NUT,U,12MM | 90306KGH901 |
|
| 17 | WASHER RR.AXLE | 90504KW7901 |
|
| 18 | OIL SEAL 26X37X6 | 90753051003 |
|
| 19 | DUST SEAL 27 X 40 X 4.5 | 91251KPH881 |
|
| 20 | BOLT,STUD,2 10X28 | 92915100280E |
|
| 21 | BEARING BALL 6203 | 91054K03N41 |
|
| 22 | BEARING BALL 6301 | AHB6301RS |
|
| 22 | BEARING BALL 6301 | ALF6201RS |
|
