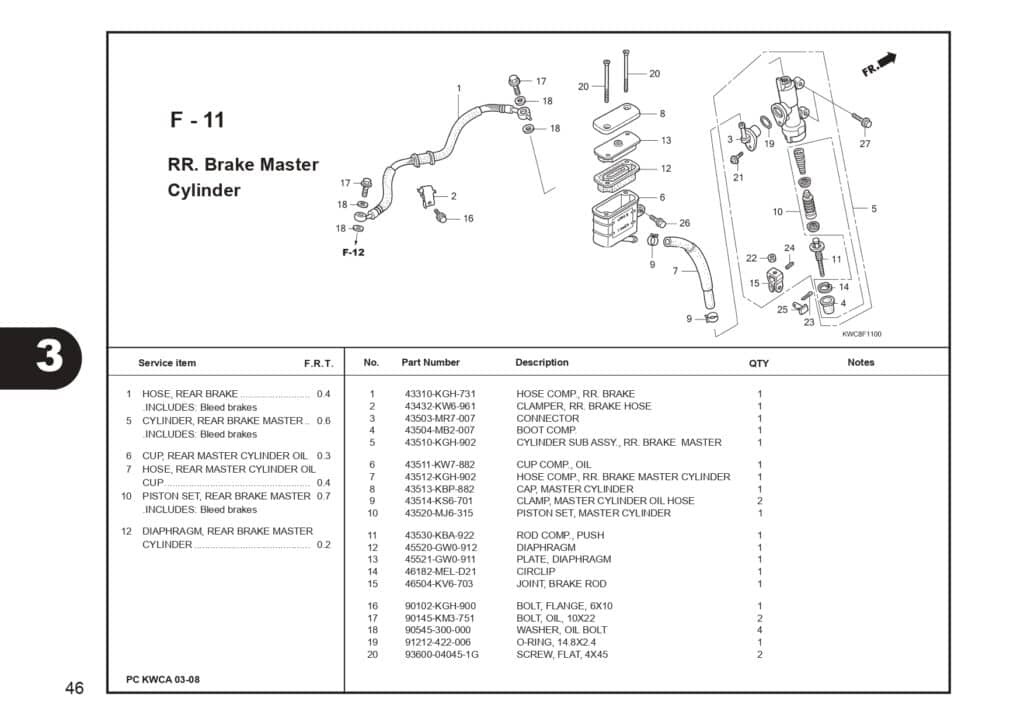

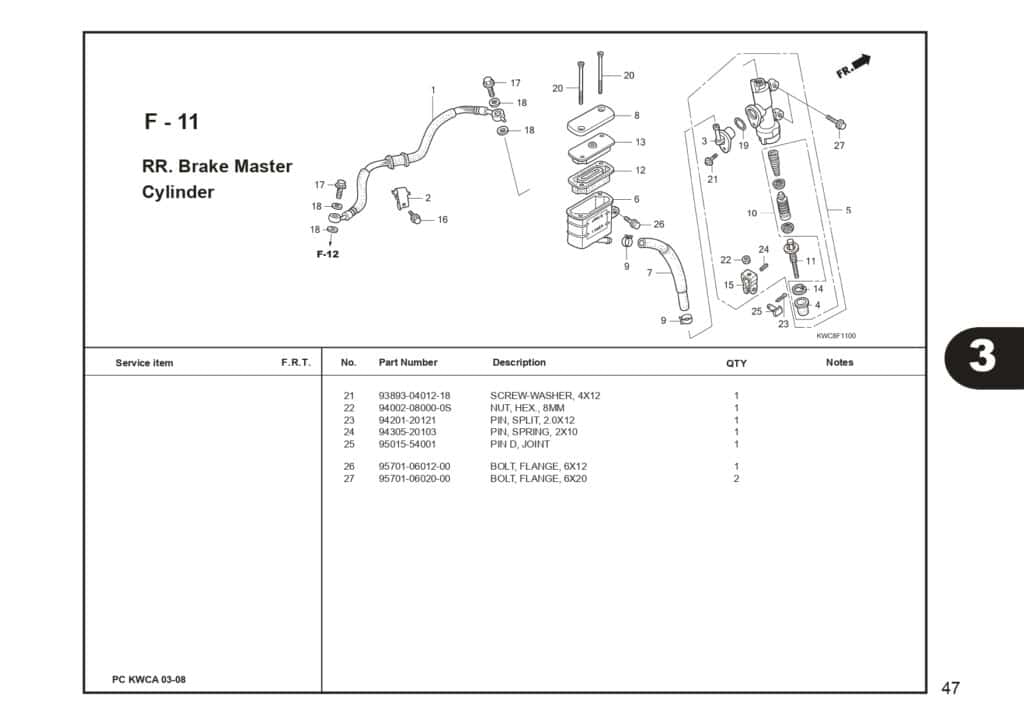

F – 11 RR Brake Master Cylinder – Katalog Suku Cadang Honda CS1

#	Informasi Produk	Visual
1	HOSE COMP RR BRK Part Number : `43310KGH731`
2	CLAMPER RR BRK HOSE Part Number : `43432KW6961`
3	CONNECTOR Part Number : `43503MR7007`
4	BOOT COMP Part Number : `43504MB2007`
5	M/C SUB ASSY RR Part Number : `43510KGH902`
6	OIL CUP COMP Part Number : `43511KW7882`
7	HOSE COMP RR M/C Part Number : `43512KGH902`
8	CAP M/C Part Number : `43513KBP881`
9	CLMP,CYLN.OIL Part Number : `43514KS6701`
10	PISTON,CYLINDER Part Number : `43520MJ6315`
11	RODCOMP.,PUSH(NISSIN) Part Number : `43530KBA921`
12	DIAPHRAGM Part Number : `45520GW0911`
13	PLATE,DIAPHRAGM Part Number : `45521GW0911`
14	CIRCLIP M/C Part Number : `46182MELD21`
15	JOINT BRK ROD Part Number : `46504KV6703`
16	BOLT FLANGE 6X10 Part Number : `90102KGH900`
17	BOLT OIL, 10X22 Part Number : `90145KM3752`
18	WASHER OIL BOLT Part Number : `90545300000`
19	O-RING,14.8X2.4 Part Number : `91212422006`
20	SCREW,FLAT,4X45 Part Number : `93600040451G`
21	SCREW WASHER 4X12 Part Number : `938930401217`
22	NUT,HEX 8MM Part Number : `94002080000S`
23	PIN SPLIT Part Number : `9420120120`
24	PIN SPRING, 2X10 Part Number : `9430520103`
25	PIN D JOINT Part Number : `9501554001`
26	BOLT FLANGE 6X12 Part Number : `957010601200`
27	BOLT FLANGE 6X20 Part Number : `957010602000`
