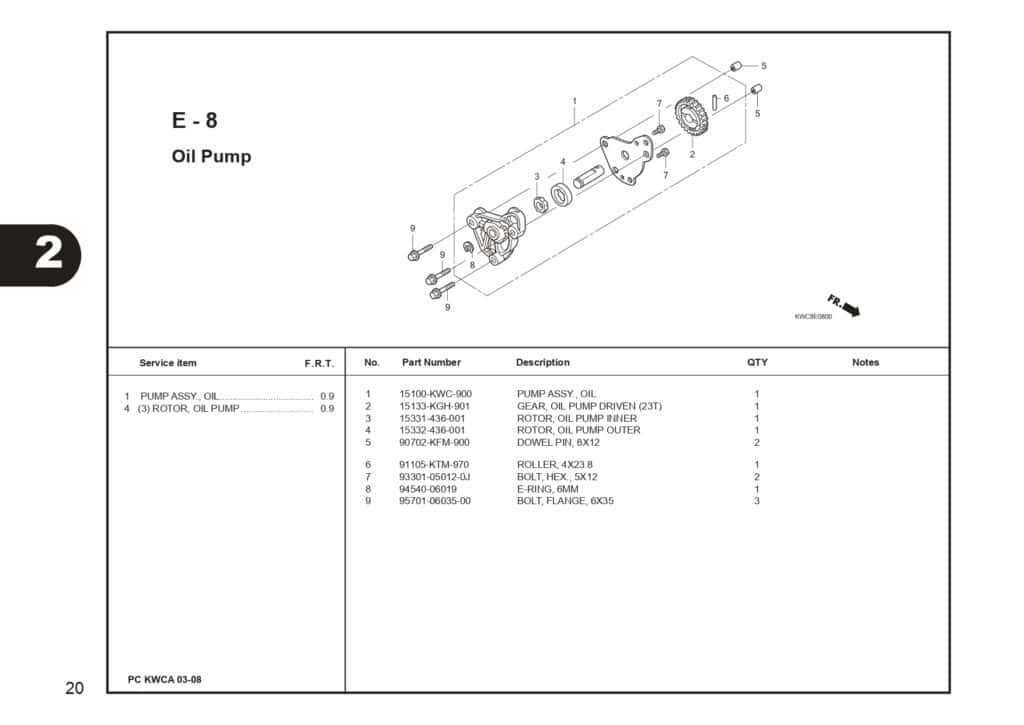

E-8 Oil Pump – Katalog Suku Cadang Honda CS1

#	Informasi Produk	Visual
1	15100KWC900 Part Number : `15100KWC900`
1	OIL PUMP ASSY Part Number : `15100KGH900`
2	GEAR,OIL PUMP DRIVEN Part Number : `15133KGH900`
3	ROTOR OIL PUMP IN Part Number : `15331436000`
4	ROTOR OIL PMP.OUT. Part Number : `15332436000`
5	PIN DOWEL 8X12 Part Number : `90702KFM900`
6	ROLLER 4X23.8 Part Number : `91105KTM970`
7	BOLT, HEX 5 X 12 Part Number : `93301050120J`
8	9454006019 Part Number : `9454006019`
9	BOLT FLANGE 6X35 Part Number : `957010603500`
