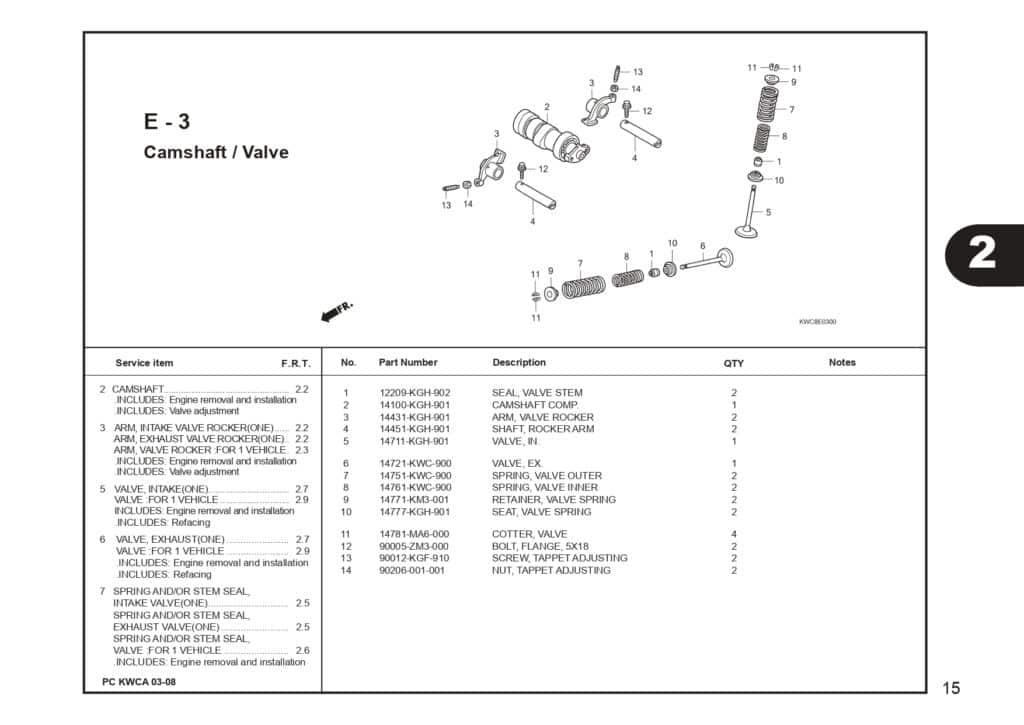

E-3 Camsaft Valve – Katalog Suku Cadang Honda CS1

#	Informasi Produk	Visual
1	SEAL, VALVE STEM Part Number : `12209KGH902`
2	CAMSHAFT COMP. Part Number : `14100KGH901`
3	ARM,VALVE ROCKER Part Number : `14431KGH900`
4	SHAFT ROCKER ARM Part Number : `14451KGH901`
5	VALVE,INLET Part Number : `14711KGH901`
6	VALVE,EXHAUST Part Number : `14721KWC900`
7	SPRING VALVE OUTER Part Number : `14751KWC900`
8	SPRING VALVE INNER Part Number : `14761KWC900`
9	RETAINER,VLV.SPG. Part Number : `14771KM3000`
10	SEAT,VALVE SPRING Part Number : `14777KGH900`
11	COTTER,VALVE Part Number : `14781MA6000`
12	BOLT FLANGE 5X18 Part Number : `90005ZM3000`
13	SCREW,TAPPET ADJUSTING Part Number : `90012KGF910`
14	NUT,TAPPET ADJUST Part Number : `90206001000`
