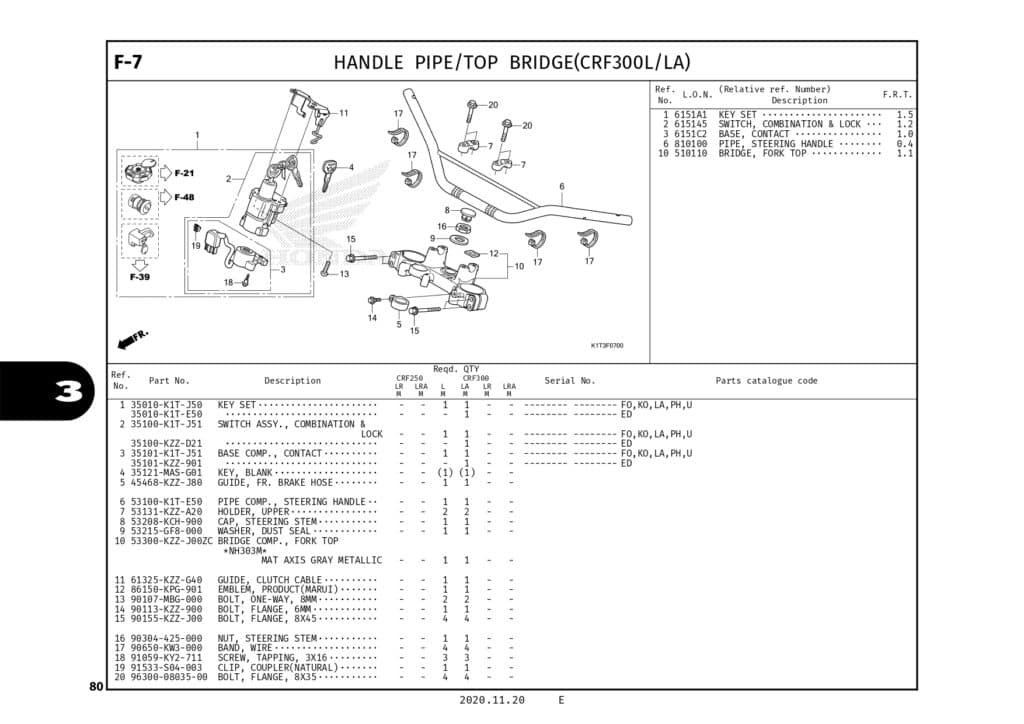

F-7 Handle Pipe Top Bridge CRF300 L LA – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
35010K1TJ50 |
35010K1TJ50 |
-
|
| 1 |
35010K1TE50 |
35010K1TE50 |
-
|
| 2 |
35100K1TJ51 |
35100K1TJ51 |
-
|
| 2 |
35100KZZD21 |
35100KZZD21 |
-
|
| 3 |
35101K1TJ51 |
35101K1TJ51 |
-
|
| 3 |
35101KZZ901 |
35101KZZ901 |
-
|
| 4 |
KEY COMP NO.1 |
35121MASG01 |
-
|
| 5 |
GUIDE FR BRK HOSE |
45468KZZJ80 |
-
|
| 6 |
PIPE STRG HANDLE |
53100K1TE50 |
-
|
| 7 |
HOLDER UPPER |
53131KZZA20 |
-
|
| 8 |
CAP STRG.STEM |
53208KCH900 |
|
| 9 |
WASHER DUST SEAL |
53215GF8000 |
-
|
| 10 |
53131KZZJ00ZC |
53131KZZJ00ZC |
-
|
| 11 |
GUIDE CLUTCH CABL |
61325KZZG40 |
-
|
| 12 |
EMBLEM, WING MARK |
86150KPG901 |
|
| 13 |
BOLT,ONE-WAY 8MM |
90107MBG000 |
|
| 14 |
BOLT FLANGE 6MM |
90113KZZ900 |
|
| 15 |
BOLT SH DR 8X45 |
90155KZZJ00 |
-
|
| 16 |
NUT STEERING STEM |
90304425000 |
|
| 17 |
BAND, WIRE |
90650KW3000 |
-
|
| 18 |
SCREW,TAPP 3X16 |
91059KY2711 |
|
| 19 |
CLIP, COUPLER(NATURAL) |
91533S04003 |
-
|
| 20 |
BOLT FLANGE DR 8X35 |
963000803500 |
-
|
