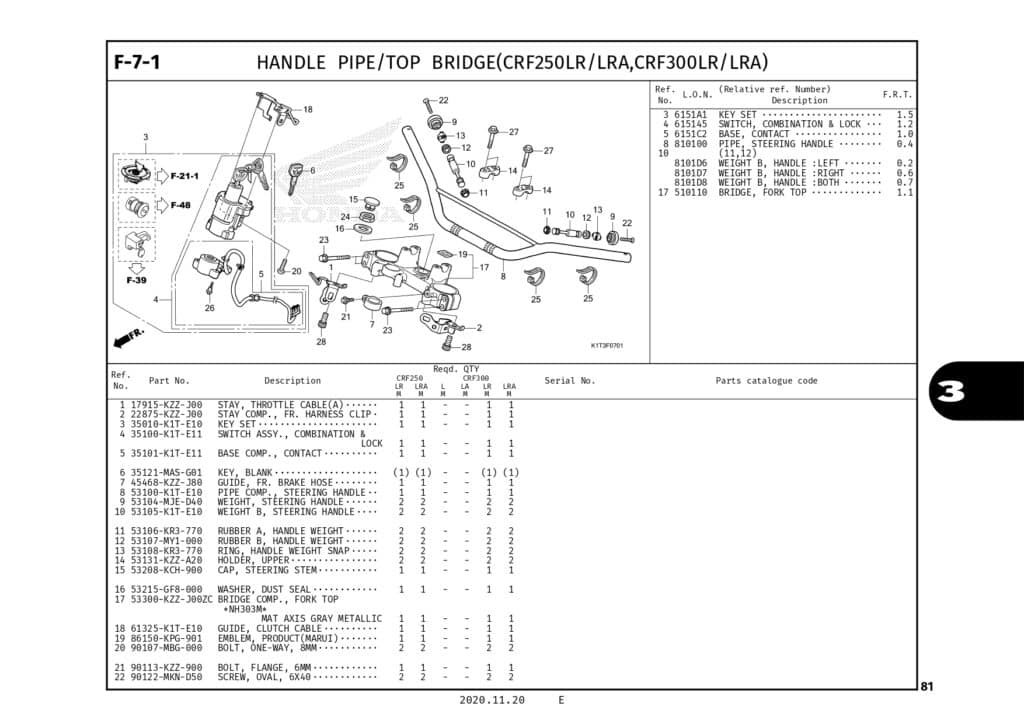

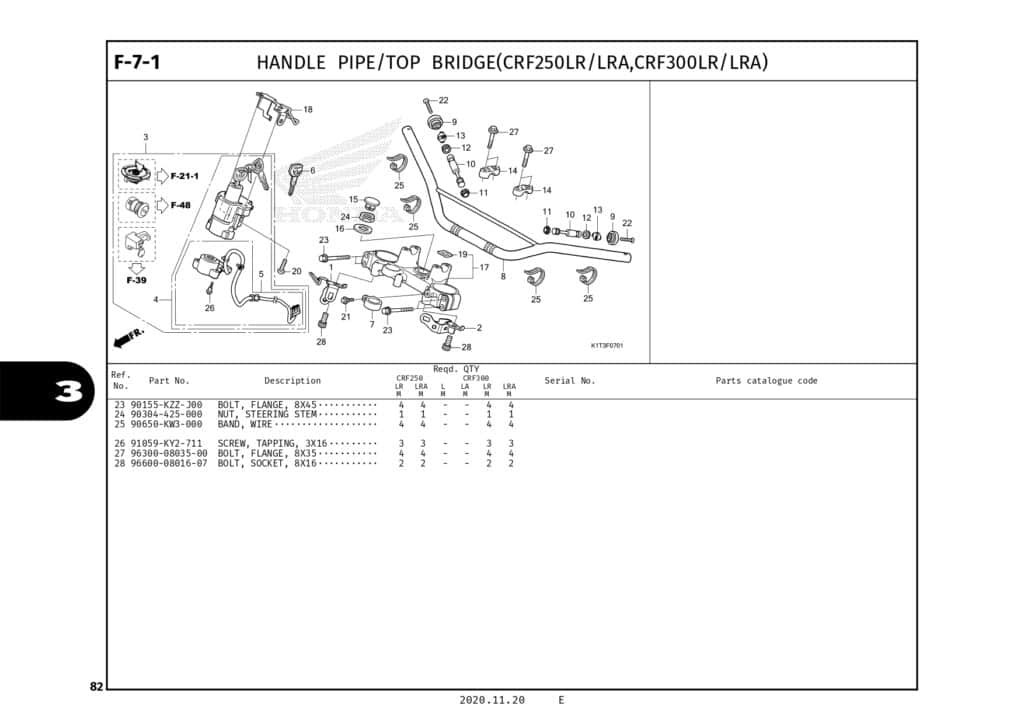

F-7-1 Handle Pipe Top Bridge CRF250LR LRA CRF300LR LRA – Katalog Suku Cadang Honda CRF 250 Rally

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 STAY TH CABLE A B 17915KZZJ00 -
2 STAY COMP FR HARN 22875KZZJ00 -
3 KEY SET 35010K1TE10 -
4 SWITCH ASSY COMB& 35100K1TE11 -
5 BASE COMP CONTACTNG 35101K1TE11 -
6 KEY COMP NO.1 35121MASG01 -
7 GUIDE FR BRK HOSE 45468KZZJ80 -
8 PIPE STRG HANDLE 53100K1TE10 -
9 WEIGHT, STEERING HANDLE 53104MJED40 -
10 WEIGHT B STRG HND 53105K1TE10 -
11 RUBBER A HDL WEIGHT 53106KR3770 RUBBER A HDL WEIGHT
12 RUBBER B, HANDLE WEIGHT 53107MY1000 -
13 RING HDL WHT SNAP 53108KR3770 RING HDL WHT SNAP
14 HOLDER UPPER 53131KZZA20 -
15 CAP STRG.STEM 53208KCH900 CAP STRG.STEM
16 WASHER DUST SEAL 53215GF8000 -
17 BRIDGE COMP FORK 53300KZZJ00ZC -
18 GUIDE CLUTCH CABL 61325K1TE10 -
19 EMBLEM, WING MARK 86150KPG901 EMBLEM, WING MARK
20 BOLT,ONE-WAY 8MM 90107MBG000 BOLT,ONE-WAY 8MM
21 BOLT FLANGE 6MM 90113KZZ900 BOLT FLANGE 6MM
22 SCREW OVAL 6X40 90122MKND50 -
23 BOLT SH DR 8X45 90155KZZJ00 -
24 NUT STEERING STEM 90304425000 NUT STEERING STEM
25 BAND, WIRE 90650KW3000 -
26 SCREW,TAPP 3X16 91059KY2711 SCREW,TAPP 3X16
27 BOLT FLANGE DR 8X35 963000803500 -
28 SOCKET BOLT,8X16 966000801607 SOCKET BOLT,8X16
