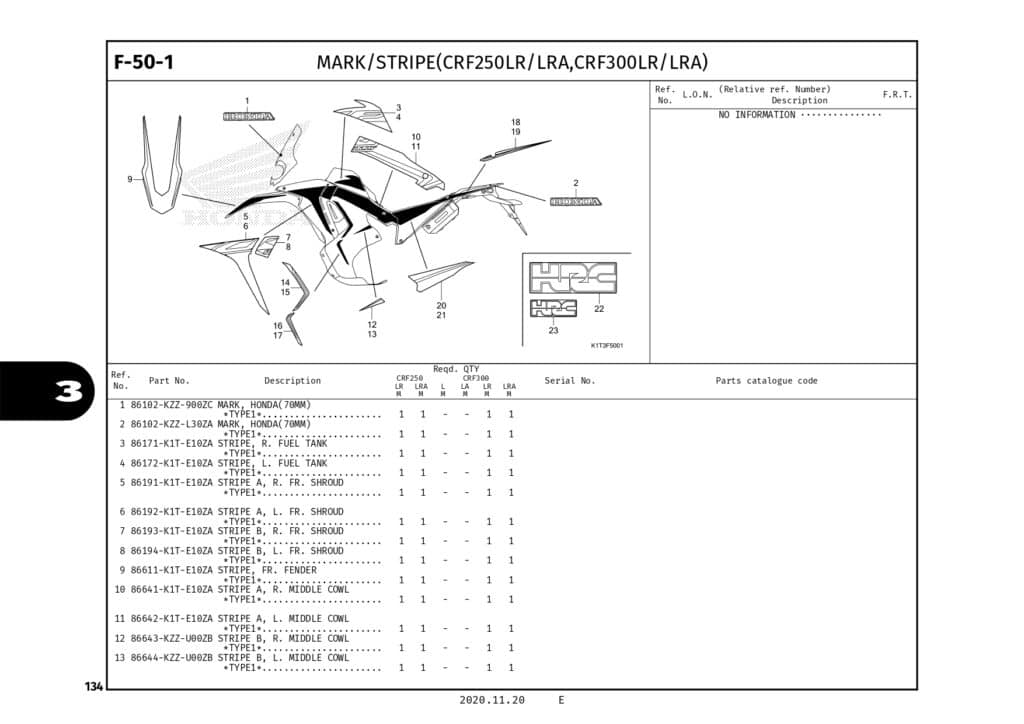

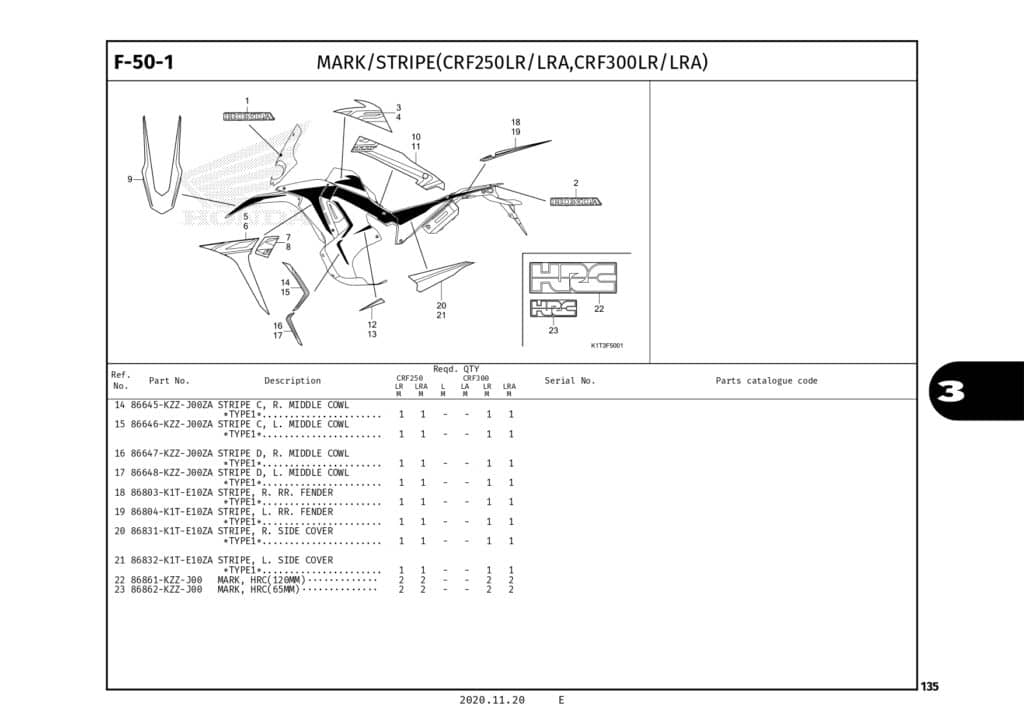

F-50-1 Mark Stripe CRF250LR LRA CRF300LR LRA – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
MARK HONDA70MM |
86102KZZ900ZC |
-
|
| 2 |
MARK HONDA 70MM |
86102KZZL30ZA |
-
|
| 3 |
STRIPE R FUEL TAN |
86171K1TE10ZA |
-
|
| 4 |
STRIPE L FUEL TAN |
86172K1TE10ZA |
-
|
| 5 |
STRIPE A R FR SHR |
86191K1TE10ZA |
-
|
| 6 |
STRIPE A L FR SHR |
86192K1TE10ZA |
-
|
| 7 |
STRIPE B R FR SHR |
86193K1TE10ZA |
-
|
| 8 |
STRIPE B L FR SHR |
86194K1TE10ZA |
-
|
| 9 |
STRIPE FRONT FEND |
86611K1TE10ZA |
-
|
| 10 |
STRIPE A R MIDDLE |
86641K1TE10ZA |
-
|
| 11 |
STRIPE A L MIDDLE |
86642K1TE10ZA |
-
|
| 12 |
STRIPE B R MIDDLE |
86643KZZU00ZB |
-
|
| 13 |
STRIPE B L MIDDLE |
86644KZZU00ZB |
-
|
| 14 |
STRIPE C R MIDDLE |
86645KZZJ00ZA |
-
|
| 15 |
STRIPE C L MIDDLE |
86646KZZJ00ZA |
-
|
| 16 |
STRIPE D R MIDDLE |
86647KZZJ00ZA |
-
|
| 17 |
STRIPE D L MIDDLE |
86648KZZJ00ZA |
-
|
| 18 |
STRIPE R REAR FEN |
86803K1TE10ZA |
-
|
| 19 |
STRIPE L REAR FEN |
86804K1TE10ZA |
-
|
| 20 |
STRIPE R SIDE COV |
86831K1TE10ZA |
-
|
| 21 |
STRIPE L SIDE COV |
86832K1TE10ZA |
-
|
| 22 |
MARK HRC 120MM |
86861KZZJ00 |
-
|
| 23 |
MARK HRC 65MM |
86862KZZJ00 |
-
|
