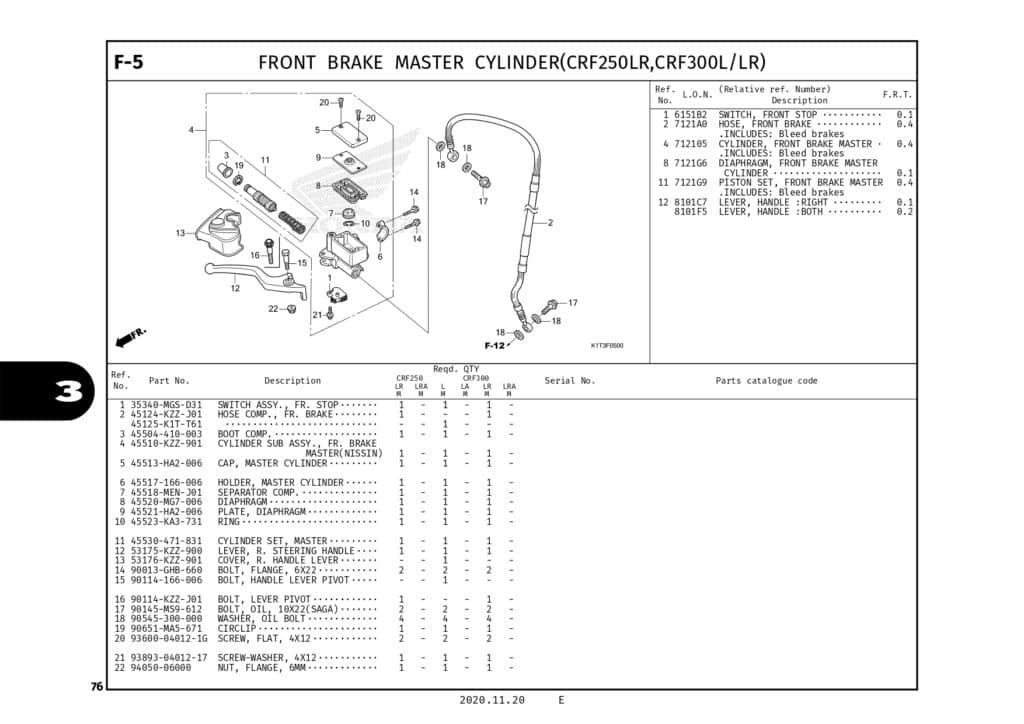

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SWITCH FR STOP ASSY | 35340MGSD31 |
|
| 2 | HOSE COMP FR BRAK16 | 45124KZZJ01 | - |
| 2 | HOSE COMP,FR BRK | 45125K1TT61 | - |
| 3 | BOOT COMP | 45504410003 |
|
| 4 | SUB ASSY FR M/C AKE | 45510KZZ901 | - |
| 5 | CAP,MASTER CYL | 45513HA2006 |
|
| 6 | HOLDER MASTER CYL | 45517166006 |
|
| 7 | SEPARATOR COMP ER | 45518MENJ01 |
|
| 8 | DIAPHRAGM | 45520MG7006 |
|
| 9 | PLATE,DIAPHRAGM | 45521HA2006 |
|
| 10 | RING | 45523KA3731 |
|
| 11 | CYLINDER SET,MAS | 45530471831 |
|
| 12 | LEVER R STRG HNDL | 53175KZZ900 |
|
| 13 | 53176KZZ901 | 53176KZZ901 | - |
| 14 | BOLT FLANGE SH 6X | 90013GHB660 | - |
| 15 | BOLT, HANDLE LEVER PIVOT | 90114166006 |
|
| 16 | BOLT LEVER PIVOT | 90114KZZJ01 | - |
| 17 | BOLT OIL 10X22 | 90145MS9612 | - |
| 18 | WASHER OIL BOLT | 90545300000 |
|
| 19 | CIRCLIP | 90651MA5671 |
|
| 20 | SCREW FLAT, 4X12 | 93600040121G |
|
| 21 | SCREW WASHER 4X12 | 938930401217 |
|
| 22 | NUT,FLANGE 6MM | 9405006000 |
|
