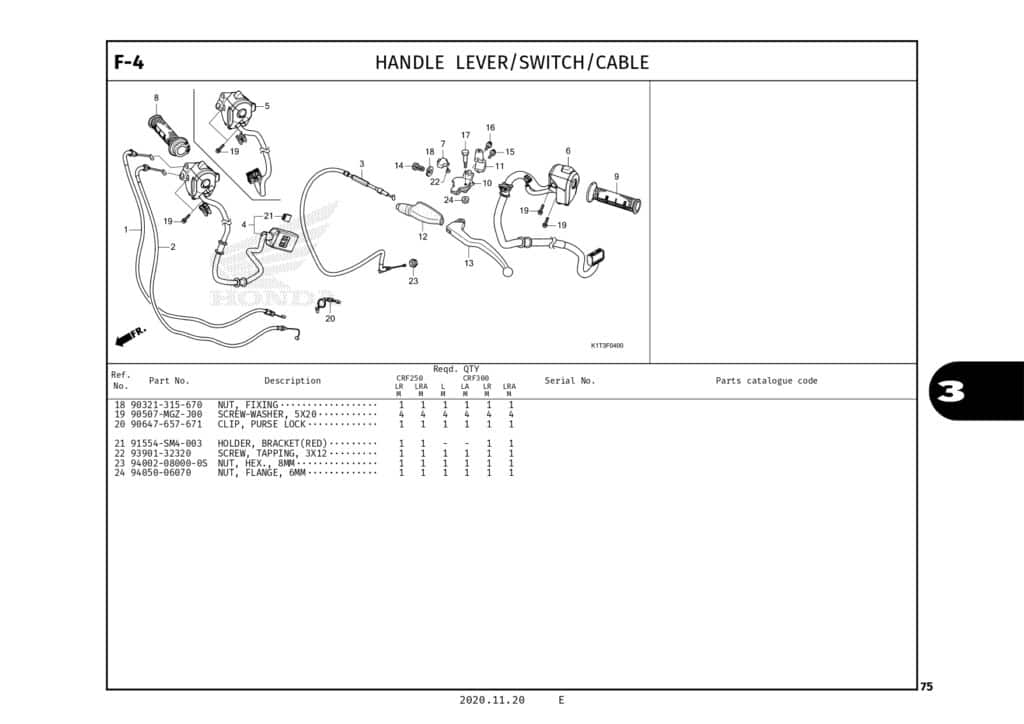

F-4 Handle Lever Switch Cable – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CABLE COMP A THROT |
17910KZZJ00 |
-
|
| 1 |
CABLE COMP A THRO |
17910KZZ900 |
-
|
| 2 |
CABLE COMP B THROT |
17920KZZJ00 |
-
|
| 2 |
CABLE COMP B THRO |
17920KZZ900 |
-
|
| 3 |
CABLE COMP CLUTCH |
22870K1TE11 |
-
|
| 3 |
CABLE COMP,CLUTCH |
22870K1TE51 |
-
|
| 4 |
SW ASSY ENG STOP SWITCH |
35130K1TE11 |
-
|
| 5 |
35130K1TJ51 |
35130K1TJ51 |
-
|
| 5 |
35130K1TE51 |
35130K1TE51 |
-
|
| 6 |
SW ASSY WINKER |
35200K1TE11 |
-
|
| 6 |
35200K1TE51 |
35200K1TE51 |
-
|
| 7 |
SWITCH ASSY. CLUTCH |
35330MK5003 |
-
|
| 8 |
GRIP COMP THROT |
53140K1TE10 |
-
|
| 8 |
GRIP COMP THROT |
53140KZZ900 |
-
|
| 9 |
GRIP L HANDLE |
53150K1TE10 |
-
|
| 9 |
GRIP L HANDLE |
53150KZZ900 |
-
|
| 10 |
BRKT L HNDL LEVER |
53172KZZ900 |
-
|
| 11 |
HOLDER LH LEVER B |
53174KZZ900 |
-
|
| 12 |
COVER L HNDL LEVEVER |
53177KZZ900 |
-
|
| 13 |
LEVER L STRG HNDL |
53178K1TE10 |
-
|
| 14 |
BOLT,CLUTCH ADJ |
53192268000 |
-
|
| 15 |
BOLT FLANGE SH 6X |
90013GHB650 |
-
|
| 16 |
BOLT FLANGE SH 6X |
90013GHB670 |
-
|
| 16 |
BOLT FLANGE SH 6X |
90013GHB650 |
-
|
| 17 |
BOLT HNDL LEVER P |
90113KZZJ00 |
-
|
| 17 |
90113HA0770 |
90113HA0770 |
-
|
| 18 |
NUT,FIXING |
90321315670 |
-
|
| 19 |
SCREW-WASHER 5X20 |
90507MGZJ00 |
-
|
| 20 |
CLIP, PURSE LOCK |
90647657671 |
-
|
| 21 |
HOLDER, BRACKET(RED) |
91554SM4003 |
-
|
| 22 |
SCREW TAP 3X12 |
9390132320 |
-
|
| 23 |
NUT,HEX 8MM |
94002080000S |
|
| 24 |
NUT FLANGE 6MM |
9405006070 |
|
