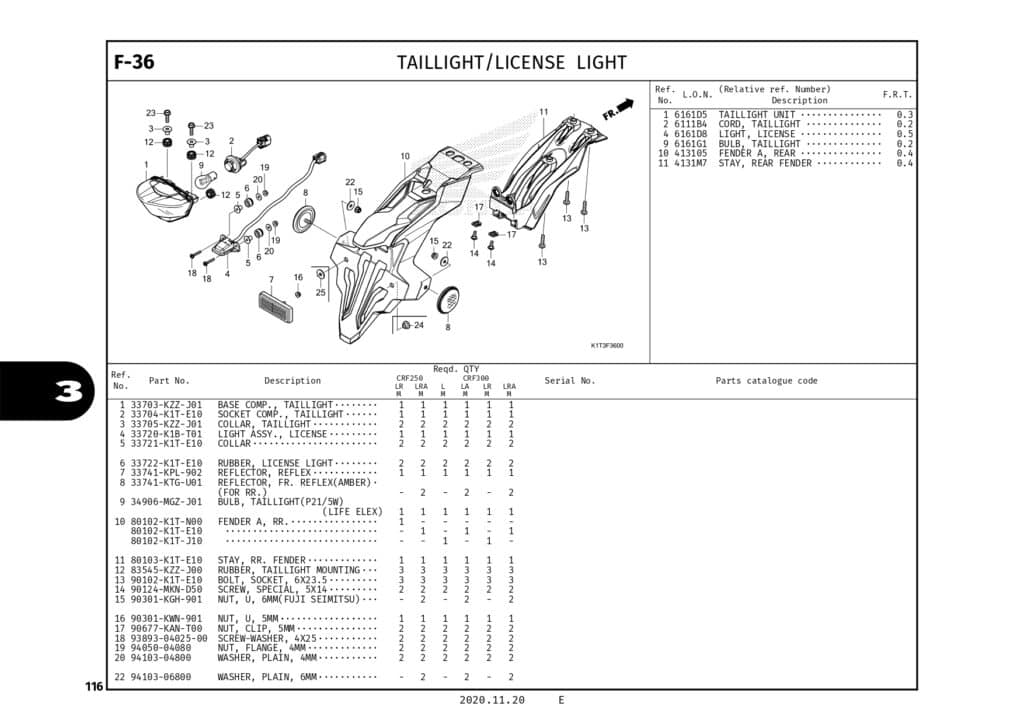

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | BASE COMP TAIL LIGHT | 33703KZZJ01 | - |
| 2 | SOCKET COMP TAIL | 33704K1TE10 | - |
| 3 | COLLAR,TAILLIGHT | 33705KZZJ01 | - |
| 4 | LIGHT ASSY LICENSE | 33720K1BT01 | - |
| 5 | COLLAR | 33721K1TE10 | - |
| 6 | RUBBER LICENSE LI | 33722K1TE10 | - |
| 7 | REFLEX REFLECTOR | 33741KPL902 |
|
| 8 | REFLECT FR REFLEX(AMBER) | 33741KTGU01 | - |
| 9 | BULB, TAIL & STOP LIGHT (FR.) | 34906MGZJ01 | - |
| 10 | FENDER A RR | 80102K1TN00 | - |
| 10 | 80102K1TE10 | 80102K1TE10 | - |
| 10 | 80102K1TJ10 | 80102K1TJ10 | - |
| 11 | STAY RR FENDER | 80103K1TE10 | - |
| 12 | RUBBER TAIL LIGHT | 83545KZZJ00 | - |
| 13 | BOLT SOCKET 6X23. | 90102K1TE10 | - |
| 14 | SCREW SPL 5X14 | 90124MKND50 | - |
| 15 | NUT U 6MM | 90301KGH901 |
|
| 16 | NUT, U, 5MM | 90301KWN901 |
|
| 17 | NUT CLIP 5MM. | 90677KANT00 |
|
| 18 | SCREW-WASHER 4X25 | 938930402500 | - |
| 19 | NUT,FLANGE 4MM | 9405004080 | - |
| 20 | WASHER, PLAIN, 4MM | 9410304800 | - |
| 22 | WASHER, PLAIN, 6MM | 9410306800 |
|
| 23 | BOLT FLANGE 6X20 | 957010602008 |
|
| 24 | COLLAR, FR. WHEEL COVER | 44125MN5000 | - |
| 25 | WASHER PLAIN 6MM | 9410306000 |
|
