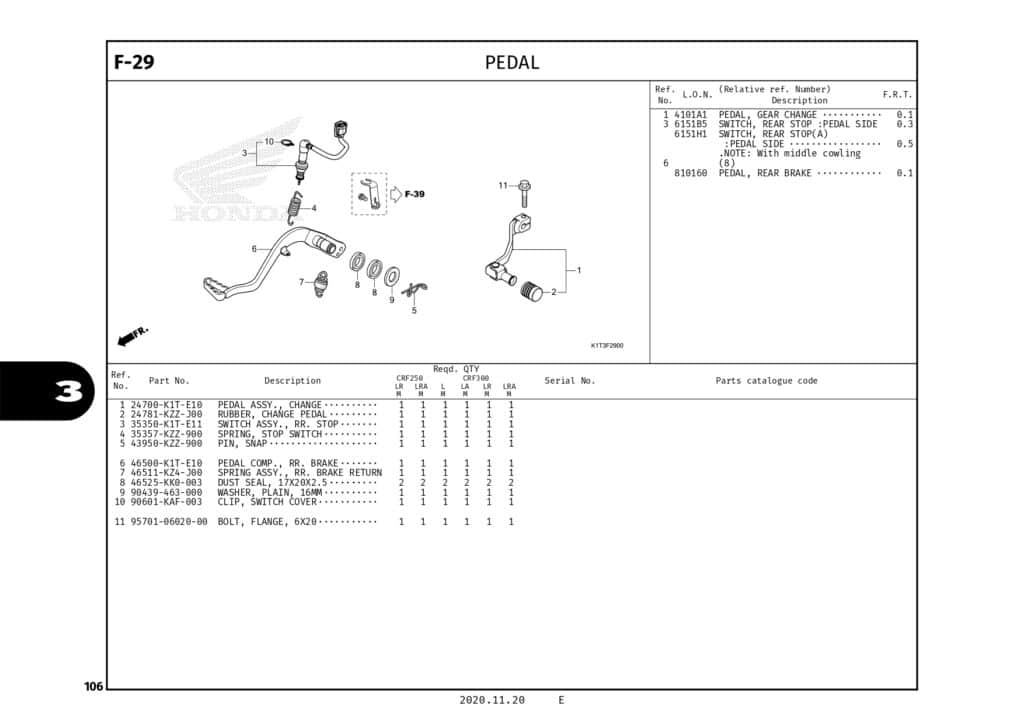

F-29 Pedal – Katalog Suku Cadang Honda CRF 250 Rally

#	Informasi Produk	Visual
1	PEDAL ASSY CHANGE Part Number : `24700K1TE10`
2	RUBBER CHANGE PED Part Number : `24781KZZJ00`
3	SW ASSY REAR STOP Part Number : `35350K1TE11`
4	SPG STOP SW Part Number : `35357KZZ900`
5	PIN SNAP Part Number : `43950KZZ900`
6	PEDAL COMP REAR B Part Number : `46500K1TE10`
7	SPRING ASSY., RR. BRAKE RETURN Part Number : `46511KZ4J00`
8	DUST SEAL 17X20X25 Part Number : `46525KK0003`
9	WASHER PLAIN 16MM Part Number : `90439463000`
10	CLIP,SWITCH COVER Part Number : `90601KAF003`
11	BOLT FLANGE 6X20 Part Number : `957010602000`
