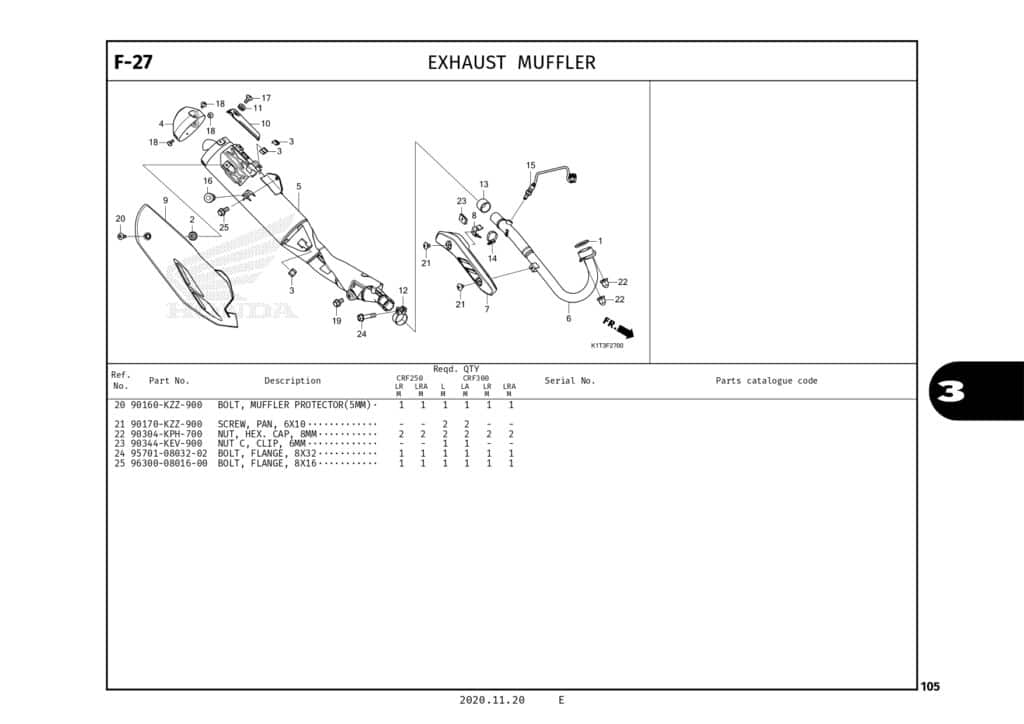

F-27 Exhaust Mufler – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GASKET,EXH.PIPE |
18291MEB670 |
-
|
| 2 |
RUBBER PKG PROTEC |
18293K1TE10 |
-
|
| 3 |
RUBBER PROTECTOR PACK |
18293MCAA20 |
|
| 4 |
CAP TAIL |
18306K1TE10 |
-
|
| 5 |
MUFFLER COMP |
18310K1TN00 |
-
|
| 5 |
18310K1TJ10 |
18310K1TJ10 |
-
|
| 5 |
18310K1TE10 |
18310K1TE10 |
-
|
| 5 |
18310K1TF50 |
18310K1TF50 |
-
|
| 6 |
PIPE COMP EXH |
18320K1TE10 |
-
|
| 6 |
18320K1TE50 |
18320K1TE50 |
-
|
| 6 |
18320K1TF50 |
18320K1TF50 |
-
|
| 7 |
PROTECTOR EXH PIP |
18325K1TE50 |
-
|
| 7 |
18326K1TF50 |
18326K1TF50 |
-
|
| 8 |
STAY RR EXH PIPE |
18327K1TE50 |
-
|
| 9 |
COVER COMP PROTEC |
18340K1TE10 |
-
|
| 10 |
COVER COMP PROTEC |
18341K1TE10 |
-
|
| 11 |
RUBBER,MOUNT |
18345K15920 |
|
| 12 |
BAND L EXH PIPE |
18374ML4003 |
-
|
| 13 |
PACKING,MUFFLER |
18391ML8000 |
|
| 14 |
CLAMP HOSE 30-37 |
19516GAG003 |
-
|
| 15 |
SENSOR OXYGEN |
36531K1TJ11 |
-
|
| 15 |
SENSOR,AIR FUELRA |
36533K1TE11 |
-
|
| 16 |
RUBBER MUFFLER PR |
83512K1TE10 |
-
|
| 17 |
SCREW PAN 6X14 12 |
90113K1TE10 |
-
|
| 18 |
SCREW SPECIAL 5X1 |
90114KZZ900 |
-
|
| 19 |
BOLT FLANGE DR 8X12 |
90118K1TE10 |
-
|
| 20 |
BOLT MUFFLER PROTO |
90160KZZ900 |
-
|
| 21 |
SCREW PAN 6X10 |
90170KZZ900 |
|
| 22 |
NUT HEX CAP,8MM |
90304KPH700 |
|
| 23 |
NUT C CLIP 6MM |
90344KEV900 |
-
|
| 24 |
BOLT FLANGE 8X32 |
957010803202 |
|
| 25 |
BOLT FLANGE 8X16 |
963000801600 |
-
|
