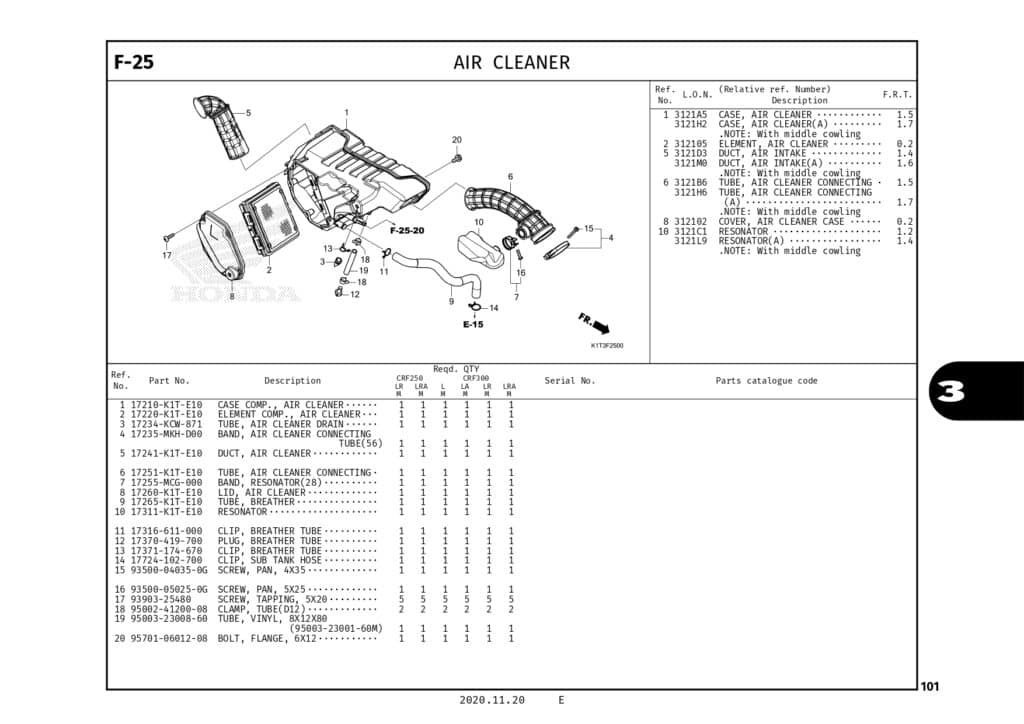

F-25 Air Cleaner – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CASE COMP AIR/C |
17210K1TE10 |
-
|
| 2 |
ELEMENT COMP AIR/ |
17220K1TE10 |
-
|
| 3 |
TUBE A/C DRAIN |
17234KCW871 |
|
| 4 |
BAND 56 AIR/C CON |
17235MKHD00 |
-
|
| 5 |
DUCT AIR/C |
17241K1TE10 |
-
|
| 6 |
TUBE AIR/C CONN |
17251K1TE10 |
-
|
| 7 |
BAND 28,RESONATOR |
17255MCG000 |
-
|
| 8 |
LID AIR/C |
17260K1TE10 |
-
|
| 9 |
TUBE BREATHER |
17265K1TE10 |
-
|
| 10 |
RESONATOR |
17311K1TE10 |
-
|
| 11 |
CLIP BREATHER TUBE |
17316611000 |
-
|
| 12 |
PLUG BRTHR.TUBE |
17370419700 |
|
| 13 |
CLIP BRTHR TUBE |
17371174670 |
-
|
| 14 |
CLIP,TANK HOSE |
17724102700 |
|
| 15 |
SCREW PAN 4X35 |
93500040350G |
-
|
| 16 |
SCREW PAN 5X25 |
93500050250G |
|
| 17 |
SCREW,TAPP 5X2 |
9390325480 |
|
| 18 |
CLAMP D12 TUBE |
950024120008 |
|
| 19 |
V.TUBE 8X12X80 6 |
950032300860 |
-
|
| 20 |
BOLT FLANGE 6X12 |
957010601208 |
|
