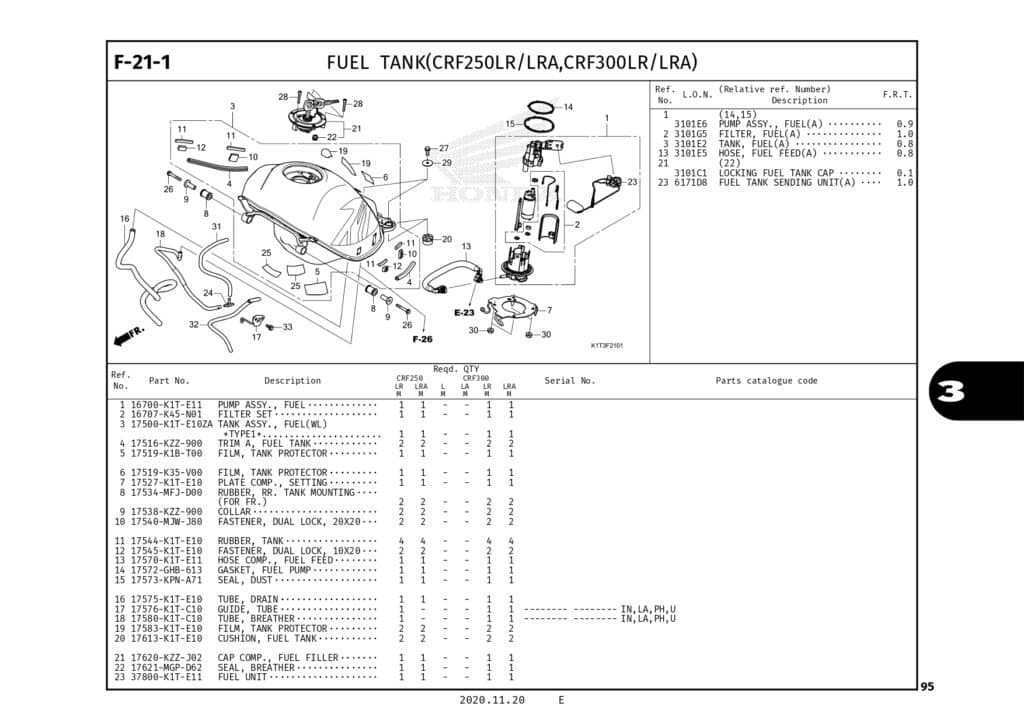

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | UNIT ASSY FUEL PU | 16700K1TE11 | - |
| 2 | FILTER SET | 16707K45N01 |
|
| 3 | TANK ASSY FUEL | 17500K1TE10ZA | - |
| 4 | TRIM A FUEL TANK | 17516KZZ900 | - |
| 5 | FILM TANK PROTECT | 17519K1BT00 | - |
| 6 | FILM TANK PROTECTOR | 17519K35V00 | - |
| 7 | PLATE COMP SETTIN | 17527K1TE10 | - |
| 8 | RUBBER, RR. TANK MOUNTING | 17534MFJD00 | - |
| 9 | COLLAR | 17538KZZ900 | - |
| 10 | FASTENER DUAL LOCANK | 17540MJWJ80 | - |
| 11 | RUBBER TANK | 17544K1TE10 | - |
| 12 | FASTENER DUAL LOC | 17545K1TE10 | - |
| 13 | HOSE COMP FUEL FE | 17570K1TE11 | - |
| 14 | GASKET, FUEL PUMP | 17572GHB613 | - |
| 15 | SEAL DUST | 17573KPNA71 | - |
| 16 | TUBE DRAIN | 17575K1TE10 | - |
| 17 | GUIDE TUBE | 17576K1TC10 | - |
| 18 | TUBE BREATHER | 17580K1TC10 | - |
| 19 | FILM TANK PROTECT | 17583K1TE10 | - |
| 20 | CUSH FUEL TANK | 17613K1TE10 | - |
| 21 | CAP COMP FUEL FILLER | 17620KZZJ02 | - |
| 22 | SEAL, BREATHER | 17621MGPD62 |
|
| 23 | FUEL UNIT | 37800K1TE11 | - |
| 24 | 38581679003 | 38581671003 | - |
| 25 | FILM, PROTECTOR | 84114MFPC80 | - |
| 26 | BOLT FLANGE NSHF 6X40 | 90004GHB710 | - |
| 27 | BOLT FLANGE SH 6X | 90013GHB620 | - |
| 28 | BOLT, SOCKET, 4X25(SUS) | 90120MJED00 | - |
| 29 | WASHER PLAIN 6MM | 90521K1TE10 | - |
| 30 | NUT,FLANGE 6MM | 9405006080 |
|
| 31 | TUBE 4.5X330 | 950054533020 |
|
| 32 | TUBE 4.5X400 | 950054540020 | - |
| 33 | BOLT.FLANGE 6X14 | 963000601400 | - |
