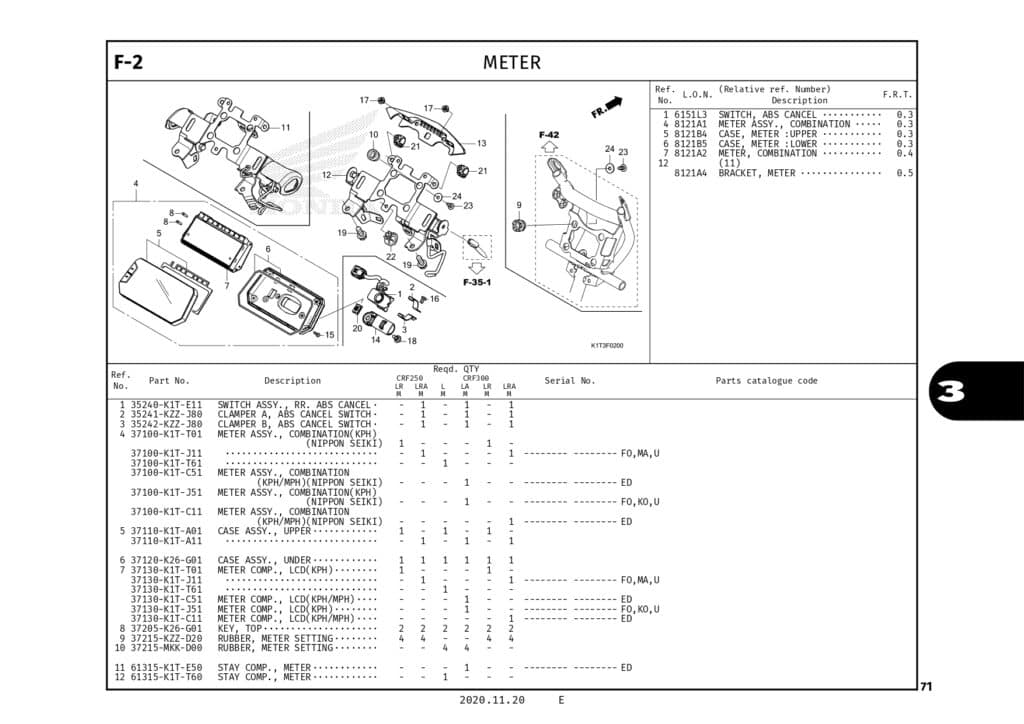

F-2 Meter – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
35240K1TE11 |
35240K1TE11 |
-
|
| 2 |
35241KZZJ80 |
35241KZZJ80 |
-
|
| 3 |
35242KZZJ80 |
35242KZZJ80 |
-
|
| 4 |
METER ASSY COMB |
37100K1TT01 |
-
|
| 4 |
37100K1TJ11 |
37100K1TJ11 |
-
|
| 4 |
METER ASSY COMB |
37100K1TT61 |
-
|
| 4 |
37100K1TC51 |
37100K1TC51 |
-
|
| 4 |
37100K1TJ51 |
37100K1TJ51 |
-
|
| 4 |
37100K1TC11 |
37100K1TC11 |
-
|
| 5 |
CASE UPPER ASSY |
37110K1TA01 |
-
|
| 5 |
37110K1TA11 |
37110K1TA11 |
-
|
| 6 |
CASE UNDER ASSY |
37120K26G01 |
-
|
| 7 |
LCD METER COMP |
37130K1TT01 |
-
|
| 7 |
37130K1TJ11 |
37130K1TJ11 |
-
|
| 7 |
LCD METER COMP |
37130K1TT61 |
-
|
| 7 |
37130K1TC51 |
37130K1TC51 |
-
|
| 7 |
37130K1TJ51 |
37130K1TJ51 |
-
|
| 7 |
37130K1TC11 |
37130K1TC11 |
-
|
| 8 |
KEY TOP |
37205K26G01 |
-
|
| 9 |
RUBBER METER SET |
37215KZZD20 |
-
|
| 9 |
RUBBER METER SET |
37215MKKD00 |
-
|
| 10 |
61315K1TE50 |
61315K1TE50 |
-
|
| 11 |
STAY COMP METER |
61315K1TT60 |
-
|
| 12 |
61315K1TJ50 |
61315K1TJ50 |
-
|
| 13 |
COVER COUPLER |
61329K1TE50 |
-
|
| 14 |
61335K1TE10 |
61335K1TE10 |
-
|
| 15 |
SCREW TAPPING (3X14) |
90101KY6008 |
|
| 16 |
SCREW 5X12 |
90112MJKN20 |
-
|
| 17 |
RIVET PUSH 6MM |
90116K0AE11 |
|
| 18 |
SCREW SPL 5X14 |
90124MKND50 |
-
|
| 19 |
BOLT FLANGE DR 8X |
90163GHB650 |
-
|
| 20 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 21 |
CLIP, HARNESS |
90683MGC920 |
-
|
| 22 |
CLIP, HARNESS |
90684ZA0601 |
|
| 23 |
SCREW TAPPING 5X14PO |
9391325380 |
|
| 24 |
WASHER PLAIN 5MM |
9410305700 |
|
