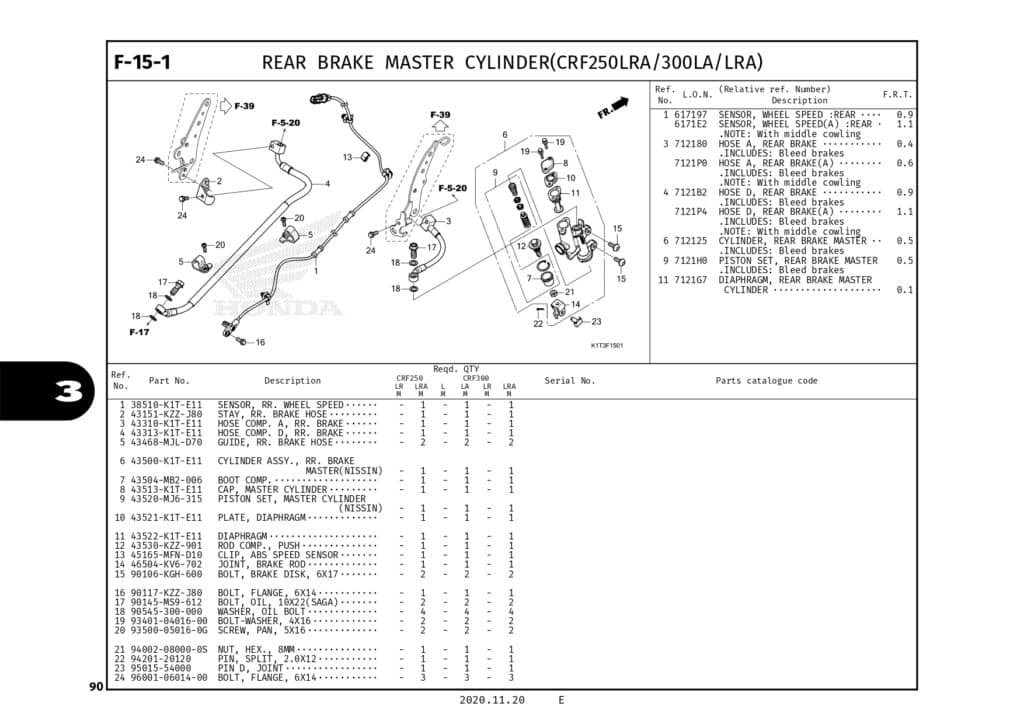

F-15-1 Rear Brake Master Cylinder CRF250LRA 300LA LRA – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
38510K1TE11 |
38510K1TE11 |
-
|
| 2 |
43151KZZJ80 |
43151KZZJ80 |
-
|
| 3 |
43310K1TE11 |
43310K1TE11 |
-
|
| 4 |
43313K1TE11 |
43313K1TE11 |
-
|
| 5 |
GUIDE, RR. BRAKE HOSE |
43468MJLD70 |
-
|
| 6 |
M/C ASSY,RR |
43500K1TE11 |
-
|
| 7 |
BOOT COMP |
43504MB2006 |
|
| 8 |
CAP M/C |
43513K1TE11 |
-
|
| 9 |
PISTON,CYLINDER |
43520MJ6315 |
|
| 10 |
PLATE DIAPHRAGM |
43521K1TE11 |
-
|
| 11 |
DIAPHRAGM |
43522K1TE11 |
-
|
| 12 |
PUSH ROD COMP |
43530KZZ901 |
-
|
| 13 |
45165MFND10 |
45165MFND10 |
-
|
| 14 |
JOINT BRAKE ROD |
46504KV6702 |
|
| 15 |
BOLT BRK DISK 6X17 |
90106KGH600 |
|
| 16 |
BOLT FLANGE SH 6X |
90117KZZJ80 |
-
|
| 17 |
BOLT OIL 10X22 |
90145MS9612 |
-
|
| 18 |
WASHER OIL BOLT |
90545300000 |
|
| 19 |
BOLT-WASHER, 4X16 |
934010401600 |
-
|
| 20 |
SCREW,PAN 5X16 |
93500050160G |
-
|
| 21 |
NUT,HEX 8MM |
94002080000S |
|
| 22 |
PIN SPLIT |
9420120120 |
|
| 23 |
PIN D JOINT |
9501554000 |
|
| 24 |
BOLT FLANGE 6X14 |
960010601400 |
|
