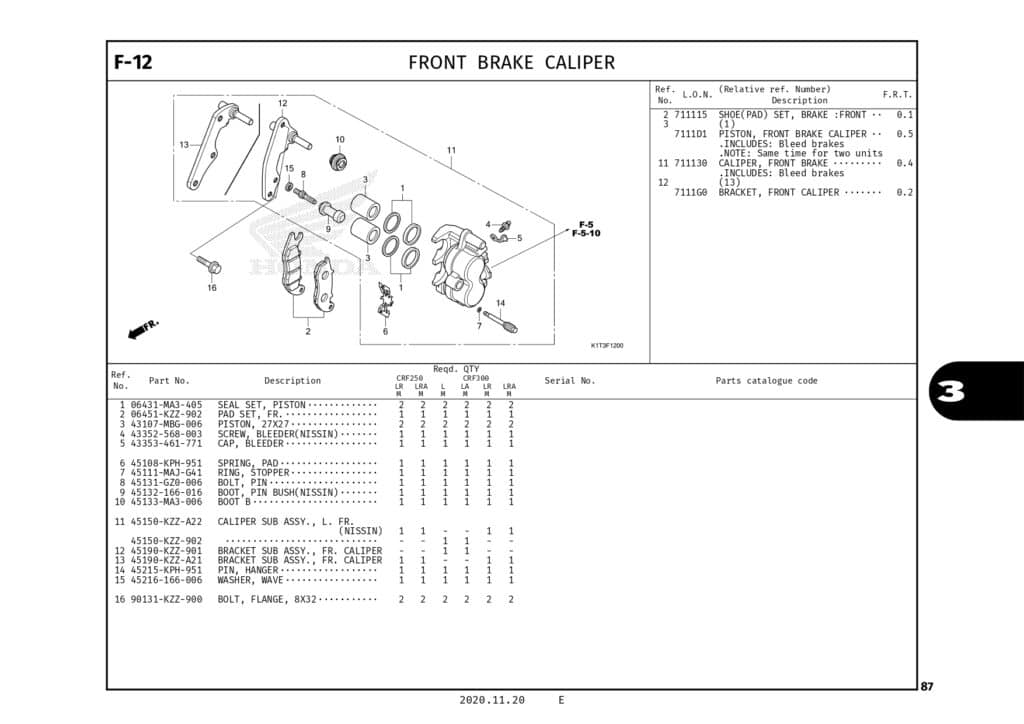

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL SET,PISTON | 06431MA3405 |
|
| 2 | PAD SET FR BRAKE | 06451KZZ902 | - |
| 3 | PISTON 27 C | 43107MBG006 |
|
| 4 | SCREW,BLEEDER | 43352568003 |
|
| 5 | CAP,BLEEDER | 43353461771 |
|
| 6 | SPRIND PAD | 45108KPH951 |
|
| 7 | O-RING,2.5X1.5 | 45111MAJG41 |
|
| 8 | PIN,BOLT | 45131GZ0006 |
|
| 9 | BUSH PIN | 45132166016 |
|
| 10 | BOOT B,PIN | 45133MA3006 |
|
| 11 | CALIPER SUB ASSY | 45150KZZA22 | - |
| 11 | CALIPER SUB ASSY L FR | 45150KZZ902 |
|
| 12 | BRKT SUB ASSY FR L FR | 45190KZZ901 |
|
| 13 | BRKT SUB ASSY FR L FR | 45190KZZA21 | - |
| 14 | PIN HANGER | 45215KPH951 |
|
| 15 | WASHER,WAVE | 45216166006 |
|
| 16 | BOLT, FLANGE, 8X32 | 90131KZZ900 | - |
