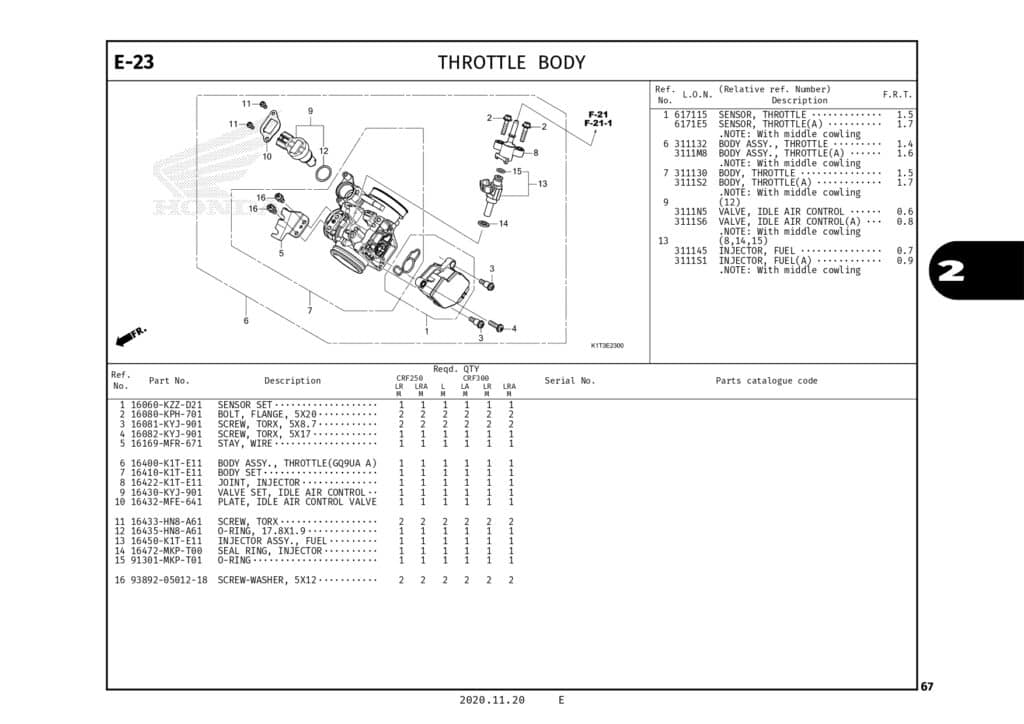

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SENSOR SET | 16060KZZD21 | - |
| 2 | BOLT,FLANGE 5X20 | 16080KPH701 |
|
| 3 | SCREW,TORX 5X8.7 | 16081KYJ901 |
|
| 4 | SCREW,TORX 5X17 | 16082KYJ901 |
|
| 5 | STAY,WIRE | 16169MFR671 | - |
| 6 | THROTTLEBODY ASSY | 16400K1TE11 | - |
| 7 | BODY SET | 16410K1TE11 | - |
| 8 | JOINT INJECTOR | 16422K1TE11 | - |
| 9 | VALVE SET, IDLE AIR CONTROL | 16430KYJ901 | - |
| 10 | PLATE, IDLE AIR CONTROL VALVE | 16432MFE641 | - |
| 11 | SCREW,TORX | 16433HN8A61 |
|
| 12 | O-RING,17.8X1.9 | 16435HN8A61 | - |
| 13 | INJECTOR ASSY FUE | 16450K1TE11 | - |
| 14 | SEAL RING | 16472MKPT00 | - |
| 15 | 191301MKPT01 | 191301MKPT01 | - |
| 16 | SCREW WASHER 5X12 | 938920501218 |
|
