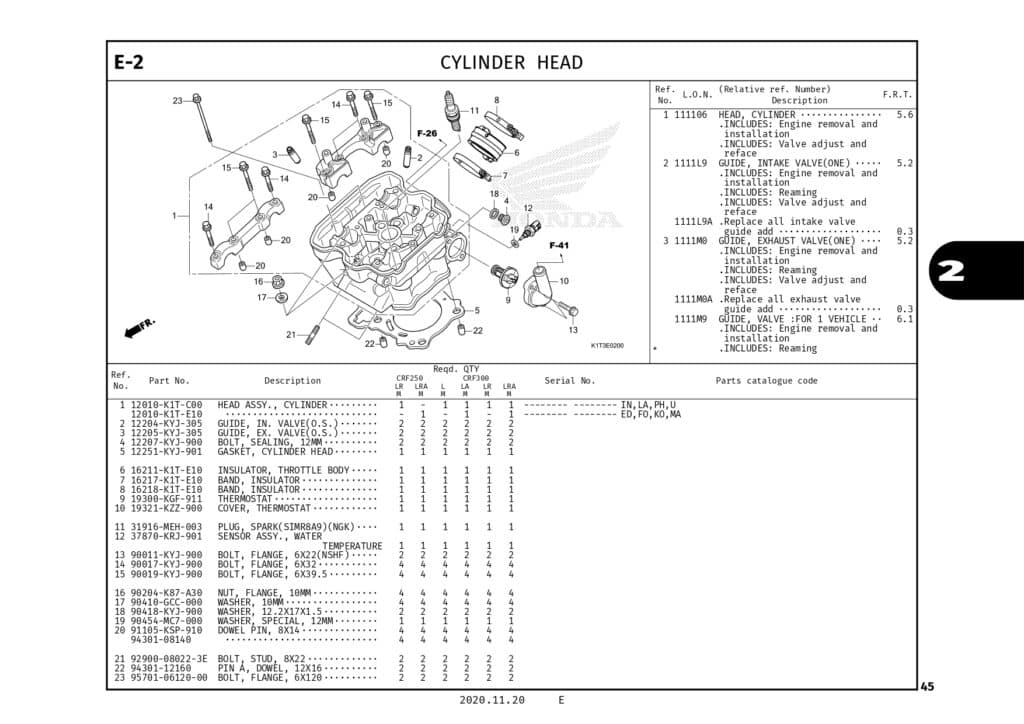

E-2 Cylinder Head – Katalog Suku Cadang Honda CRF 250 Rally
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
HEAD ASSY CYLINDER PLATE |
12010K1TC00 |
-
|
| 1 |
12010K1TE10 |
12010K1TE10 |
-
|
| 2 |
GUIDE,IN VALVE(OV |
12204KYJ305 |
-
|
| 3 |
GUIDE,EX VALVE(OV |
12205KYJ305 |
|
| 4 |
BOLT,SEALING 12MM |
12207KYJ900 |
|
| 5 |
GASKET,CYLINDER H |
12251KYJ901 |
-
|
| 6 |
INSULATOR THROTTL |
16211K1TE10 |
-
|
| 7 |
BAND INSULATOR |
16217K1TE10 |
-
|
| 8 |
BAND INSULATOR |
16218K1TE10 |
-
|
| 9 |
THERMOSTAT |
19300KGF911 |
-
|
| 10 |
COVER THERMOSTAT |
19321KZZ900 |
-
|
| 11 |
SPARK PLUG SIMR8A9 (NGK) |
31916MEH003 |
|
| 12 |
SENSOR ASSY,TW |
37870KRJ901 |
|
| 13 |
BOLT,FLANGE,NSHF, |
90011KYJ900 |
|
| 14 |
BOLT,FLANGE 6X32 RKT |
90017KYJ900 |
-
|
| 15 |
BOLT,FLANGE 6X39 |
90019KYJ900 |
-
|
| 16 |
NUT FLANGE 10MM |
90204K87A30 |
-
|
| 17 |
WASHER,10MM |
90410GCC000 |
-
|
| 18 |
WASHER,12.2X17X1.5 |
90418KYJ900 |
|
| 19 |
WASH SPECIAL,12MM |
90454MC7000 |
|
| 20 |
9430108140 |
91105KSP910 |
-
|
| 20 |
PIN DOWEL 8X14 |
9430108140 |
|
| 21 |
BOLT 2,STUD,8X22 |
92900080223E |
-
|
| 22 |
PIN KNCK,12X16 |
9430112160 |
|
| 23 |
BOLT,FLANGE,6X120 |
957010612000 |
|
