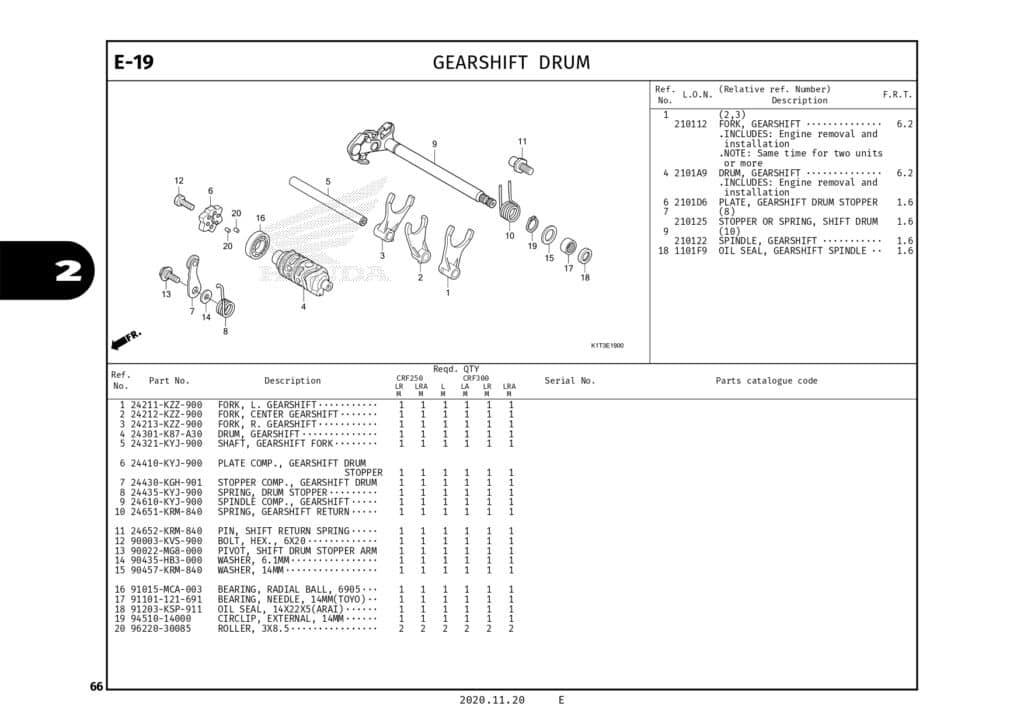

E-19 Gearshift Drum – Katalog Suku Cadang Honda CRF 250 Rally

#	Informasi Produk	Visual
1	FORK L GEARSHIFT Part Number : `24211KZZ900`
2	FORK CENTER GEARSHIFT Part Number : `24212KZZ900`
3	FORK R GEARSHIFT Part Number : `24213KZZ900`
4	DRUM GEAR SHIFT Part Number : `24301K87A30`
5	SHAFT,GEAR SHIFTFORK Part Number : `24321KYJ900`
6	PLATE COMP,SHIFTDRUM STPR Part Number : `24410KYJ900`
7	STOPPER COMP GEAR SHIFT DRUM Part Number : `24430KGH901`
8	SPG,DRUM STOPPER Part Number : `24435KYJ900`
9	SPINDLE COMP,SHIFT Part Number : `24610KYJ900`
10	SPG,SHIFT RETURN Part Number : `24651KRM840`
11	PIN SHIFT RETURN SPRING Part Number : `24652KRM840`
12	BOLT,HEX 6X20 Part Number : `90003KVS900`
13	PIVOT,SFT DRUM STOP.ARM Part Number : `90022MG8000`
14	WASHER 6.1MM Part Number : `90435HB3000`
15	WASHER,14MM Part Number : `90457KRM840`
16	BEARING,BALL RADIAL 6905 Part Number : `91015MCA003`
17	NEEDLE BRG Part Number : `91101121691`
18	OIL SEAL,14X22X5 Part Number : `91203KSP911`
19	CIRCLIP,14MM Part Number : `9451014000`
20	ROLLER,3X8.5 Part Number : `9622030085`
