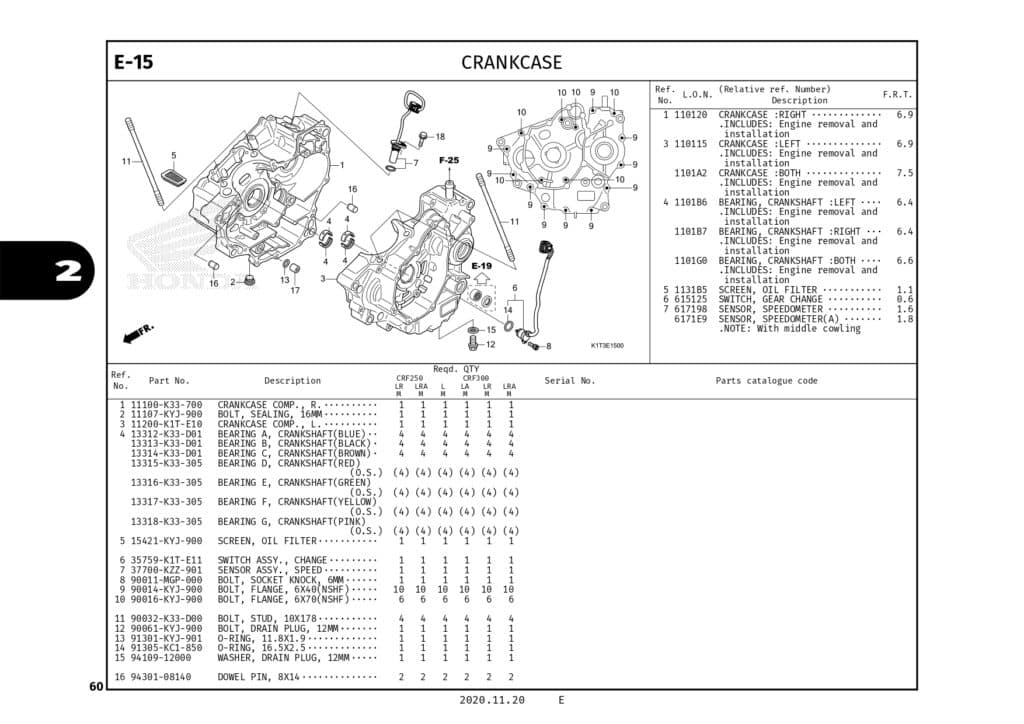

| 1 |
CRANK CASE COMP R |
11100K33700 |
-
|
| 2 |
BOLT,SEALING 16MM |
11107KYJ900 |
-
|
| 3 |
CRANK CASE COMP L |
11200K1TE10 |
-
|
| 4 |
BEARING A CRKSHAFT(BLUE) |
13312K33D01 |
-
|
| 4 |
BEARING B CRKSHAFT(BLACK) |
13313K33D01 |
-
|
| 4 |
BEARING C CRKSHAFT(BROWN) |
13314K33D01 |
-
|
| 4 |
BEARING D CRANKSHAFT(RED) |
13315K33305 |
-
|
| 4 |
BEARING E CRKSHAFT(GREEN) |
13316K33305 |
-
|
| 4 |
BEARING F CRKSHAFT(Y) |
13317K33305 |
-
|
| 4 |
BEARING G CRKSHAFT(PINK) |
13318K33305 |
-
|
| 5 |
SCREEN,OIL FILTER |
15421KYJ900 |
-
|
| 6 |
SW ASSY CHANGE |
35759K1TE11 |
-
|
| 7 |
SENSOR ASSY SPEEDOMETER |
37700KZZ901 |
-
|
| 8 |
BOLT, SOCKET KNOCK, 6MM |
90011MGP000 |
-
|
| 9 |
BOLT,FLANGE,NSHF, |
90014KYJ900 |
|
| 10 |
BOLT,FLANGE,NSHF, |
90016KYJ900 |
-
|
| 11 |
BOLT STUD 10X178 |
90032K33D00 |
-
|
| 12 |
BOLT,PLUG DRAIN 112 |
90061KYJ900 |
|
| 13 |
O-RING,11.8X1.9 |
91301KYJ901 |
-
|
| 14 |
O-RING, 16.5X2.5 |
91305KC1850 |
|
| 15 |
WASHER, DRAIN PLUG, 12MM |
9410912000 |
|
| 16 |
PIN DOWEL 8X14 |
9430108140 |
|
| 17 |
PIN KNCK,12X16 |
9430112160 |
|
| 18 |
957010601801 |
957010601800 |
-
|
