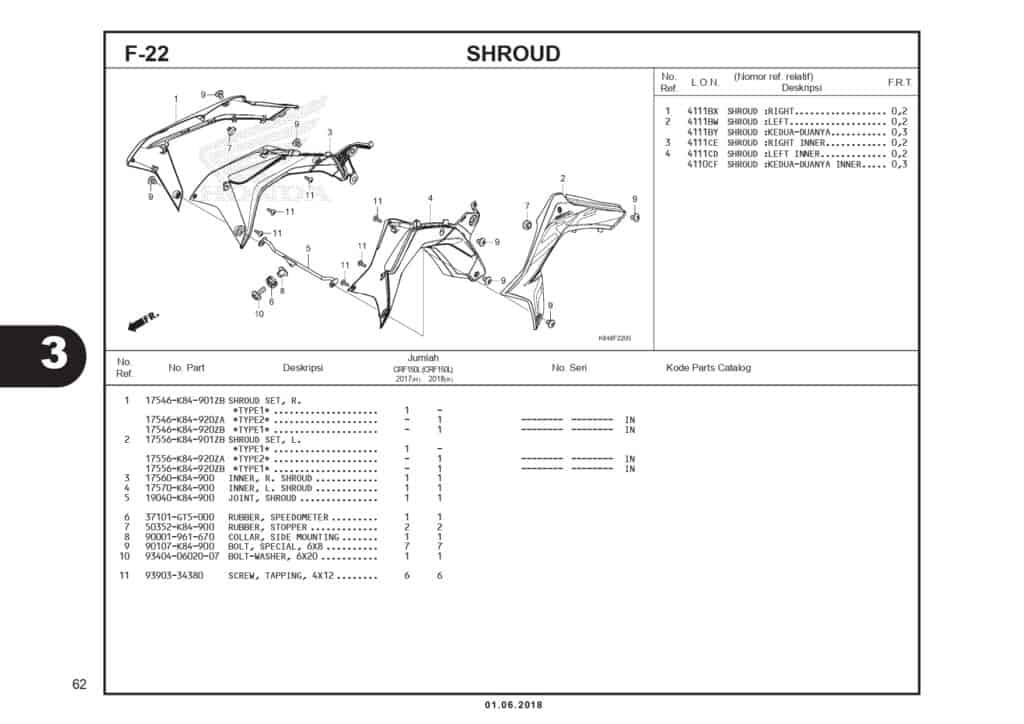

F22 – Shroud – Katalog Honda CFR 150L K84F

#	Informasi Produk	Visual
1	SHROUD SET, R.(WL) Part Number : `17546K84901ZB`
1	SET ILLUST R SHROUD TYPE 2 Part Number : `17546K84920ZA`
1	SET ILLUST R SHROUD TYPE 1 Part Number : `17546K84920ZB`
2	SHROUD SET, L.(WL) Part Number : `17556K84901ZB`
2	SET ILLUST L SHROUD TYPE 2 Part Number : `17556K84920ZA`
2	SET ILLUST L SHROUD TYPE 1 Part Number : `17556K84920ZB`
3	INNER, R. SHROUD Part Number : `17560K84900`
4	INNER, L. SHROUD Part Number : `17570K84900`
5	JOINT SHROUD R Part Number : `19040K84900`
6	RUBBER SPEEDOMETER Part Number : `37101GT5000`
7	RUBBER, STOPPER Part Number : `50352K84900`
8	COLLAR, SIDE MOUNTING Part Number : `90001961670`
9	BOLT SPL 6X8 Part Number : `90107K84900`
10	BOLT WASHER 6X20 Part Number : `934040602007`
11	SCREW TAPPING 4X12 Part Number : `9390334380`
