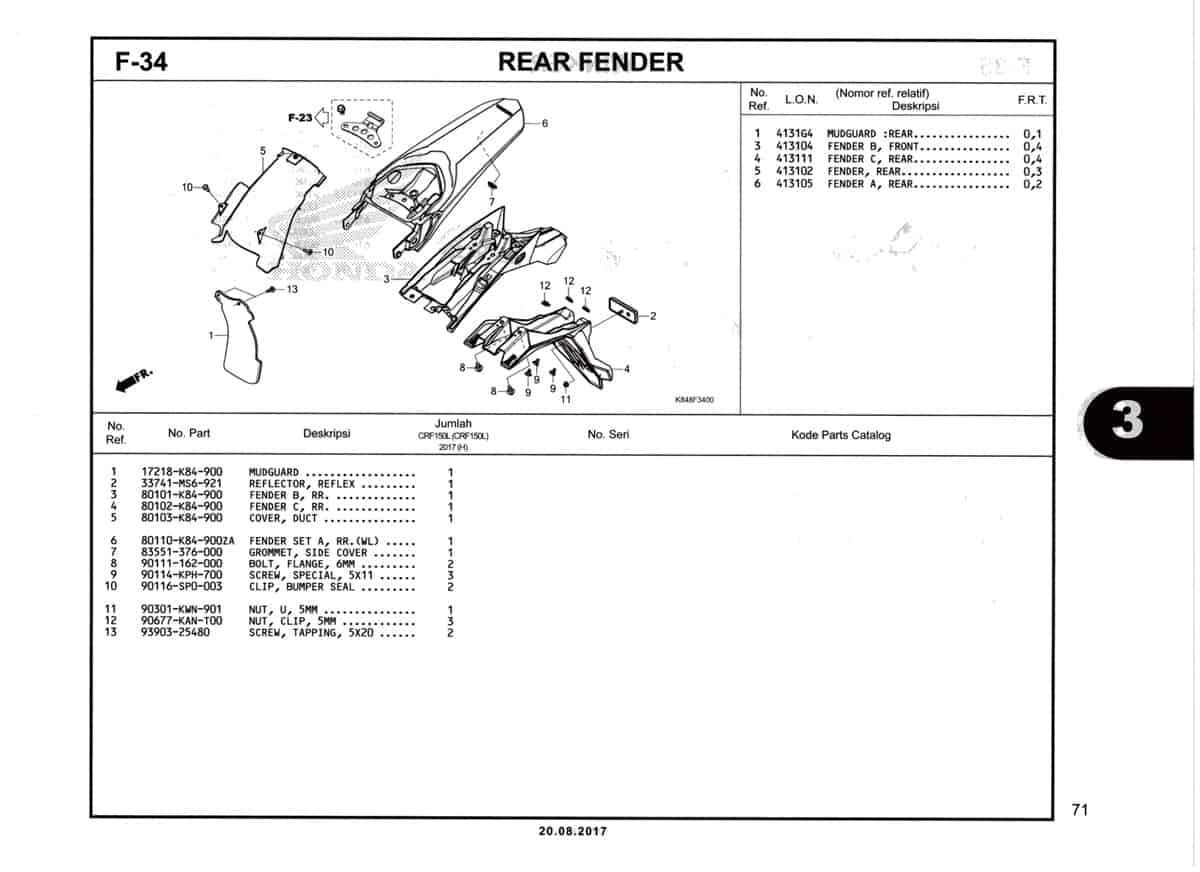

F34 – Rear Fender – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Mud Guard T Set Part Number : `17218K84900`
2	Reflector Reflex (ST) Part Number : `33741MS6921`
3	Fender B RR Part Number : `80101K84900`
4	Fender C RR Part Number : `80102K84900`
5	Cover Duct Part Number : `80103K84900`
6	Fender Set A RR (WL) Part Number : `80110K84900ZB`
7	Grommet Side Cover Part Number : `83551376000`
8	Bolt Flange 6MM Part Number : `90111162000`
9	Screw Special 5X11 Part Number : `90114KPH700`
10	Clip Bumper Seal Part Number : `90116SP0003`
10	Clip Bumper Seal Part Number : `90116K2PV61`
11	Nut U 5MM Part Number : `90301KWN901`
12	Nut Clip 5MM Part Number : `90677KANT00`
13	Screw Tapping 5X2 Part Number : `9390325480`
