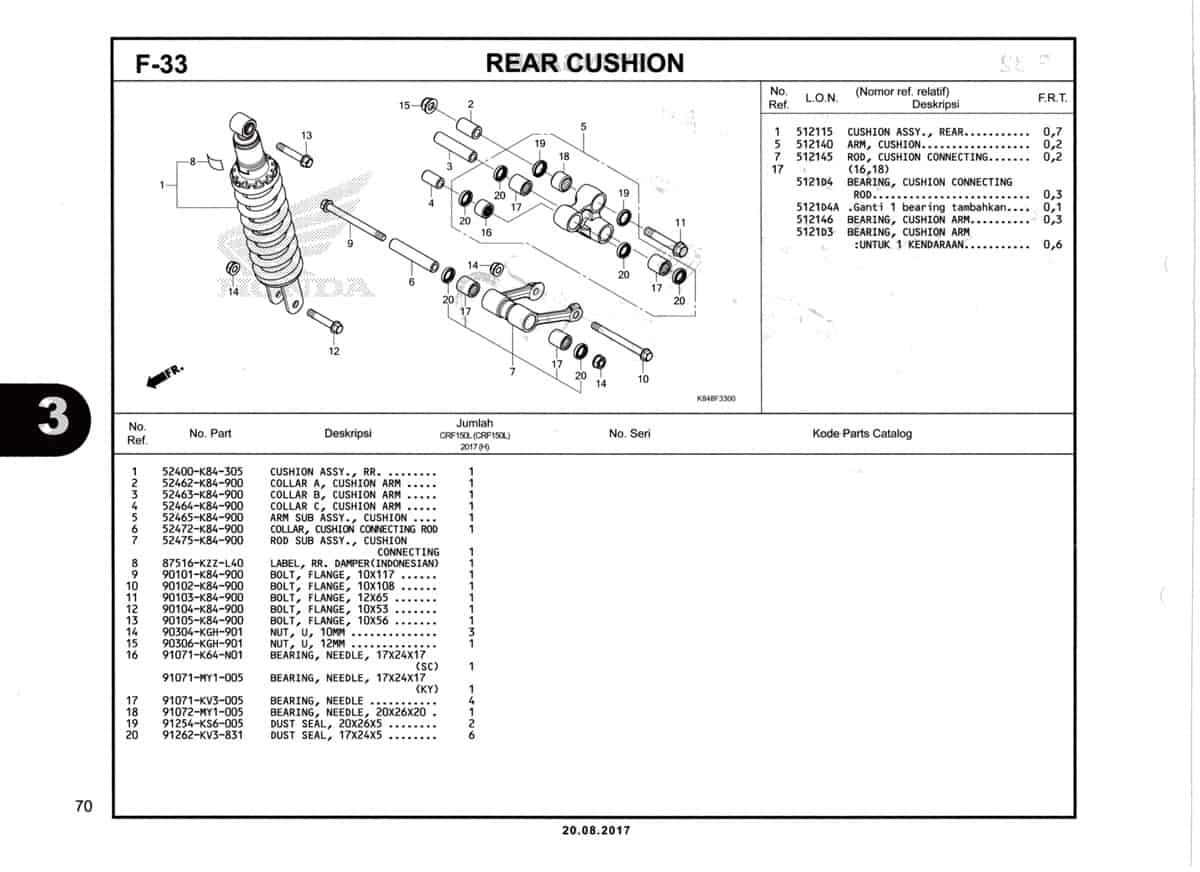

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cushion Assy RR | 52400K84305 |
|
| 2 | Collar A Cushion Arm | 52462K84900 |
|
| 3 | Collar B Cushion Arm | 52463K84900 |
|
| 4 | Collar C Cushion Arm | 52464K84900 |
|
| 5 | Arm Sub Assy Cushion | 52465K84900 |
|
| 6 | Collar Cushion Connecting Rod | 52472K84900 |
|
| 7 | Rod Sub Assy Cushion Connecting | 52475K84900 |
|
| 8 | Label RR Damper | 87516KZZL40 |
|
| 9 | Bolt Flange DR 10 | 90101K84900 |
|
| 10 | Bolt Flange DR 10 | 90102K84900 |
|
| 11 | Bolt Flange DR 12 | 90103K84900 |
|
| 12 | Bolt Flange DR 10X53 | 90104K84900 |
|
| 13 | Bolt Flange DR 10X56 | 90105K84900 |
|
| 14 | Nut U 10MM | 90304KGH901 |
|
| 15 | Nut U 12MM | 90306KGH901 |
|
| 16 | Bearing Needle 17X24X17 | 91071K64N01 |
|
| 16 | Bearing Needle 17X24X17 | 91071MY1005 |
|
| 16 | Bearing Needle 17X24X17 | 91071K45NL1 |
|
| 17 | Bearing Needle (KOYO) | 91071KV3005 |
|
| 18 | Bearing Needle 20X26X20 LBL | 91072MY1005 |
|
| 19 | Dust Seal 20x26x5 | 91254KS6005 |
|
| 20 | Dust Seal 17X24X5 | 91262KV3831 |
|
