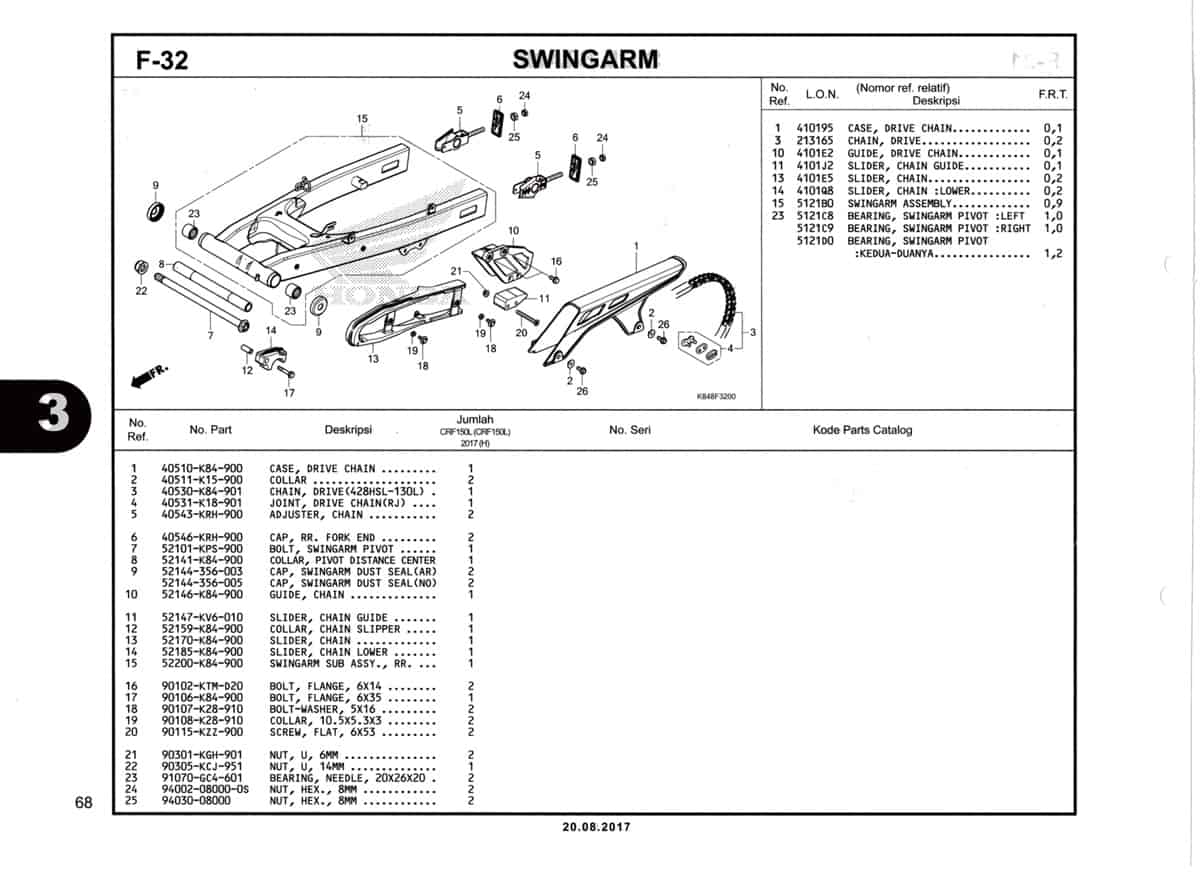

F32 – Swingarm – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Case Drive Chain Part Number : `40510K84900`
2	Collar Part Number : `40511K15900`
3	Chain Drive (428HSL-130L) Part Number : `40530K84901`
4	Joint Drive Chain (RJ) Part Number : `40531K18901`
5	Adjuster Chain Part Number : `40543KRH900`
6	Cap Rear Fork End Part Number : `40546KRH900`
7	Bolt Swingarm Pivot Part Number : `52101KPS900`
8	Center Collar Pivot Part Number : `52141K84900`
9	Cap Dust Seal Part Number : `52144356003`
9	Cap Dust Seal Part Number : `52144356005`
10	Guide Chain Part Number : `52146K84900`
11	Slider Chain Guide Part Number : `52147KV6010`
12	Collar Chain Slipper Part Number : `52159K84900`
13	Slider Chain Pivot L Part Number : `52170K84900`
14	Slider Chain Lower Part Number : `52185K84900`
15	Swingarm Sub Assy RR Part Number : `52200K84900`
16	Bolt Flange 6X14 Part Number : `90102KTMD20`
17	Bolt Flange 6X35 Part Number : `90106K84900`
18	Washer Assy Hex Bolt 5X16 Part Number : `90107K28910`
19	Collar 10.5X5.3X3 Part Number : `90108K28910`
20	Screw Flat 6X53 Part Number : `90115KZZ900`
21	Nut U 6MM Part Number : `90301KGH901`
22	Nut U 14 MM Part Number : `90305KCJ951`
23	Bearing Needle 20X26X20 Part Number : `91070GC4601`
24	Nut Hex 8MM Part Number : `94002080000S`
25	Nut 8MM Part Number : `9403008000`
26	Bolt Flange 6X14 Part Number : `957010601407`
