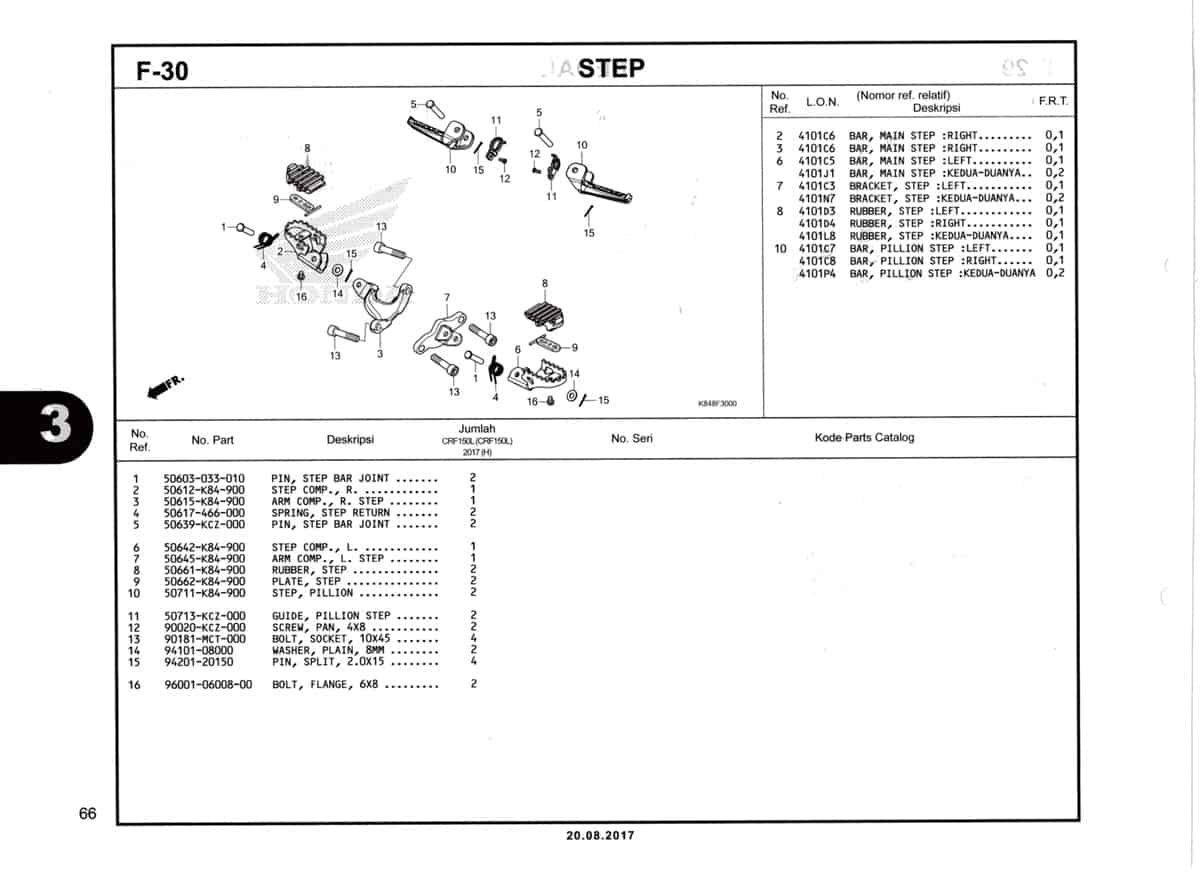

F30 – Step – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Pin Step Bar Joint Part Number : `50603033010`
2	Step Comp R Part Number : `50612K84900`
3	Arm Comp R Step Part Number : `50615K84900`
4	Spring Step Return Part Number : `50617466000`
5	Pin Step Bar Part Number : `50639KCZ000`
6	Step Comp L Part Number : `50642K84900`
7	Arm Comp L Step Part Number : `50645K84900`
8	Step Rubber Part Number : `50661K84900`
9	Plate Step Part Number : `50662K84900`
10	Step Pillion Part Number : `50711K84900`
11	Guide Pillion Step Part Number : `50713KCZ000`
12	Screw Pan 4X8 Part Number : `90020KCZ000`
13	Socket Bolt 10X45 Part Number : `90181MCT000`
14	Washer Plain 8MM Part Number : `9410108000`
15	Pin Cotter 2.0X15 Part Number : `9420120150`
16	Bolt Flange SH 6X8 Part Number : `960010600800`
