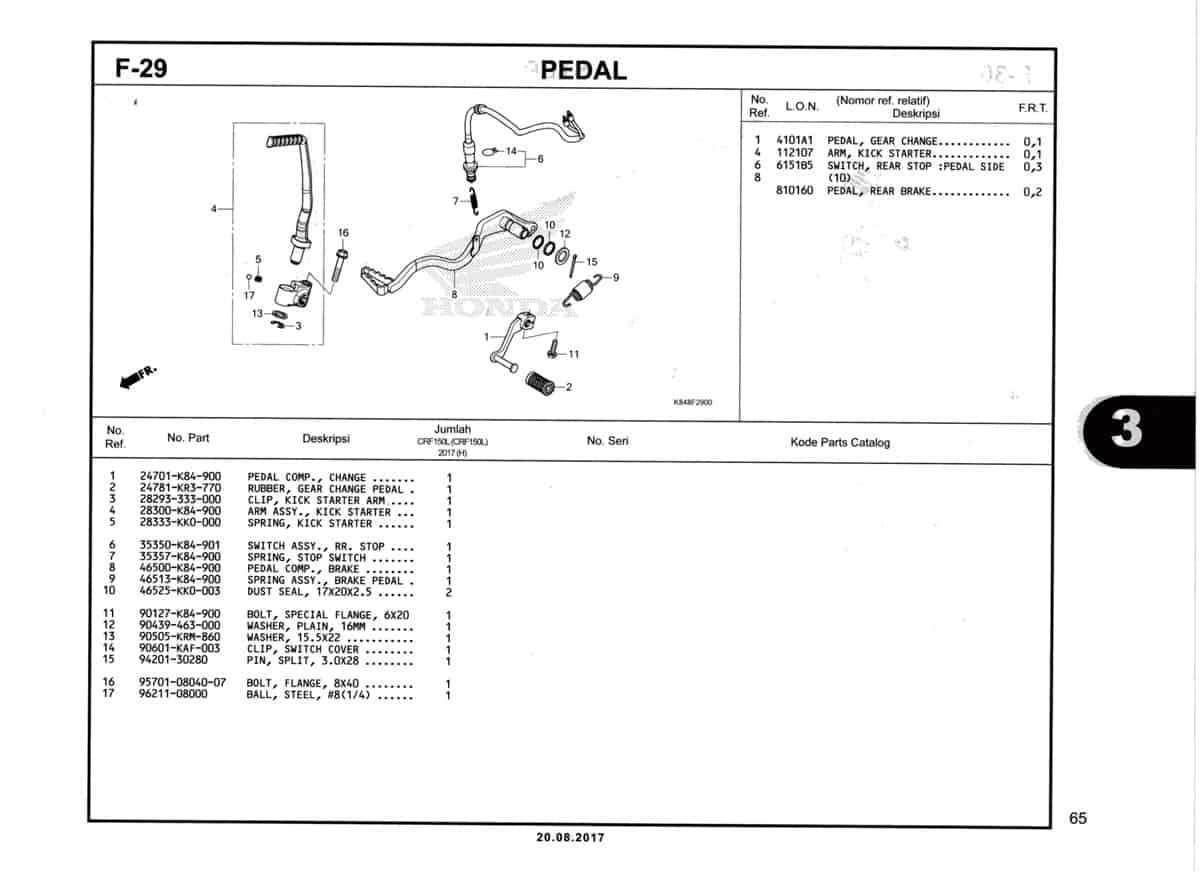

F29 – Pedal – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Pedal Comp Change Part Number : `24701K84900`
2	Rubber Gear Change Part Number : `24781KR3770`
3	Clip Kick Starter Part Number : `28293333000`
4	Arm Assy Kick Starter Part Number : `28300K84900`
5	Spring Kick Starter Part Number : `28333KK0000`
6	Switch Assy Rear Stop Part Number : `35350K84901`
7	Spring Stop Switch Part Number : `35357K84900`
8	Pedal Comp Brake Part Number : `46500K84900`
9	Spring Assy Brake Pedal Part Number : `46513K84900`
10	Dust Seal 17X20X25 Part Number : `46525KK0003`
11	Bolt Special Flange 6X20 Part Number : `90127K84900`
12	Washer Plain 16MM Part Number : `90439463000`
13	Washer 15.5X22 Part Number : `90505KRM860`
14	Clip Switch Cover Part Number : `90601KAF003`
15	Pin Split 3.0 Part Number : `9420130280`
16	Bolt Flange 8X40 Part Number : `957010804007`
17	Ball Steel 8 Part Number : `9621108000`
