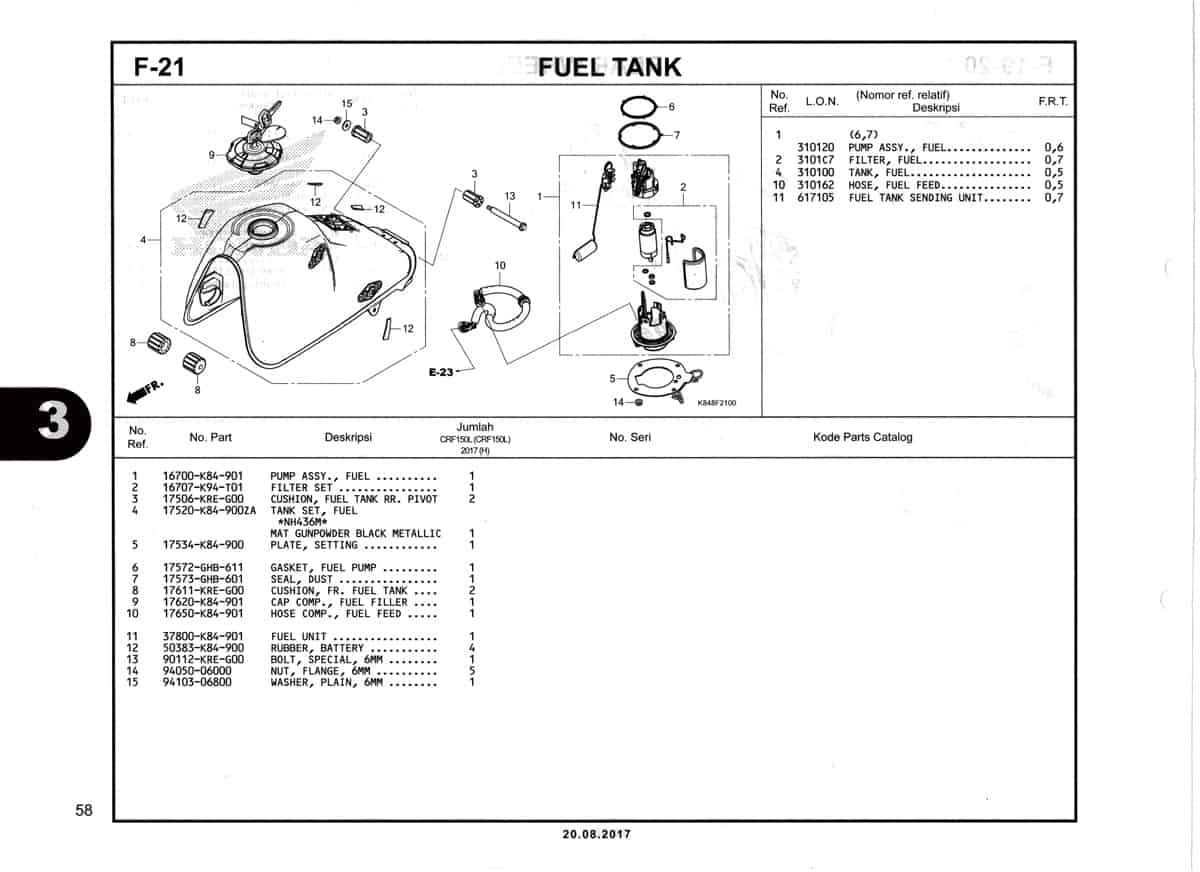

F21 – Fuel Tank – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Unit Assy Fuel Pump Part Number : `16700K84901`
2	Filter Set Part Number : `16707K94T01`
3	Cushion Fuel Tank RR Pivot Part Number : `17506KREG00`
4	Set Fuel Tank Part Number : `17520K84900ZA`
5	Plate Setting Part Number : `17534K84900`
6	Gasket Fuel Pump Part Number : `17572GHB611`
6	Gasket Fuel Pump Part Number : `17572KPNA71`
7	Seal Dust Part Number : `17573GHB601`
8	Cushion Front Fuel Tank Part Number : `17611KREG00`
9	Cap Comp Fuel Filler Part Number : `17620K84901`
10	Hose Comp Fuel Feed Part Number : `17650K84901`
11	Fuel Unit Part Number : `37800K84901`
12	Rubber Battery Part Number : `50383K84900`
13	Bolt Special 6MM Part Number : `90112KREG00`
14	Nut Flange 6MM Part Number : `9405006000`
15	Washer Plain 6MM Part Number : `9410306800`
