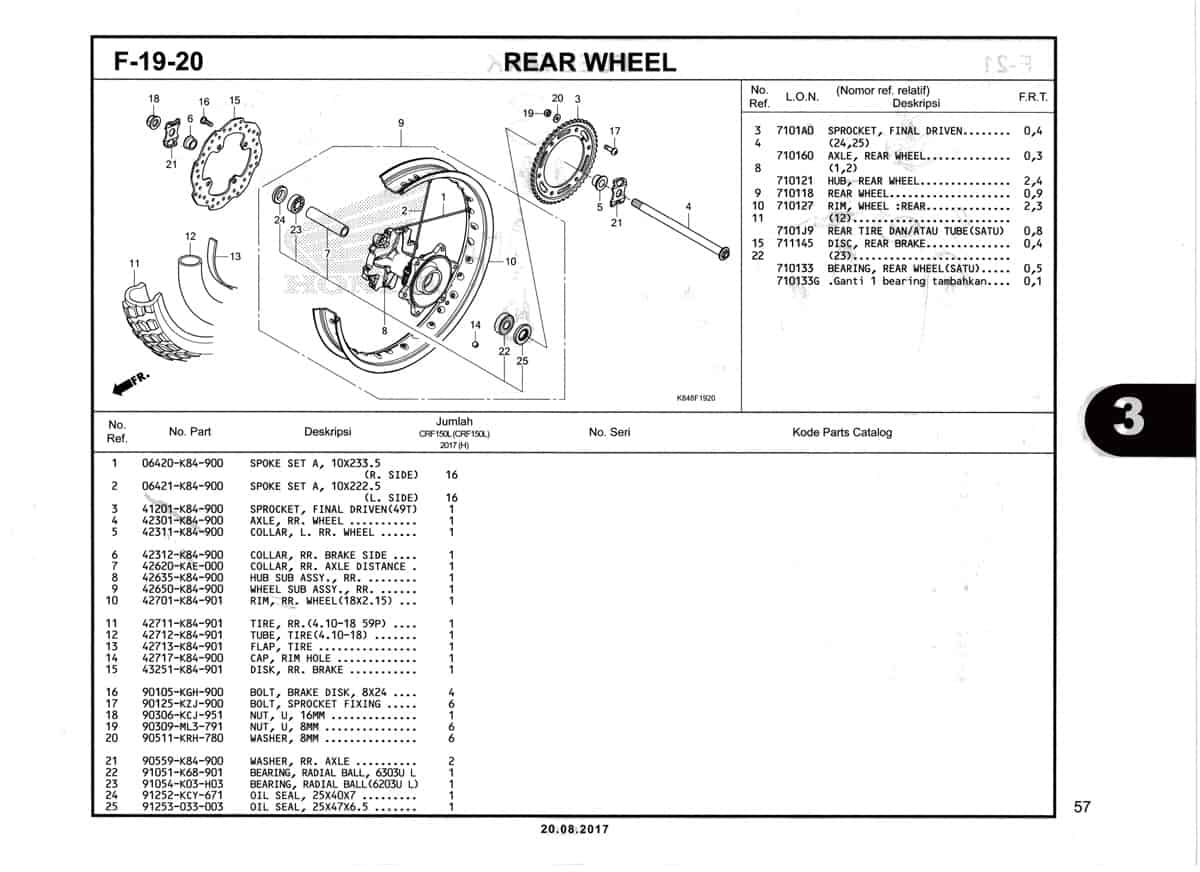

F19-20 – Rear Wheel – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Spoke Set A 10X223.5 Part Number : `06420K84900`
2	Spoke Set A 10X222.5 Part Number : `06421K84900`
3	Sprocket Final Part Number : `41201K84900`
4	Axle RR Wheel L Part Number : `42301K84900`
5	Collar L RR Wheel Part Number : `42311K84900`
6	Collar RR Brake Side Part Number : `42312K84900`
7	Collar RR Axle Dist Part Number : `42620KAE000`
8	Hub Sub Assy Rear Part Number : `42635K84900`
9	Wheel Sub Assy Rear Part Number : `42650K84900`
10	Rim RR Wheel (18X2.15) Part Number : `42701K84901`
11	Tire RR (IRC)(4.10-18 59P) Part Number : `42711K84901`
12	Tube Tire (IRC)(4.10-18) Part Number : `42712K84901`
13	Flap Tire (IRC) Part Number : `42713K84901`
14	Cap Rim Hole Part Number : `42717K84900`
15	Disk RR Brake (SUNSTAR) Part Number : `43251K84901`
16	Bolt Brake Disk 8X24 Part Number : `90105KGH900`
17	Bolt Sprocket Fixing Part Number : `90125KZJ900`
18	Nut U 16MM Part Number : `90306KCJ951`
19	Nut U 8MM Part Number : `90309ML3791`
20	Washer 8MM Part Number : `90511KRH780`
21	Washer RR Axle Part Number : `90559K84900`
22	Bearing Radial Ball 6303U L (NACHI) Part Number : `91051K68901`
23	Bearing Radial Ball 6203U L Part Number : `91054K03H03`
24	Oil Seal 25X40X7 Part Number : `91252KCY671`
25	Oil Seal 25X47X6.5 Part Number : `91253033003`
