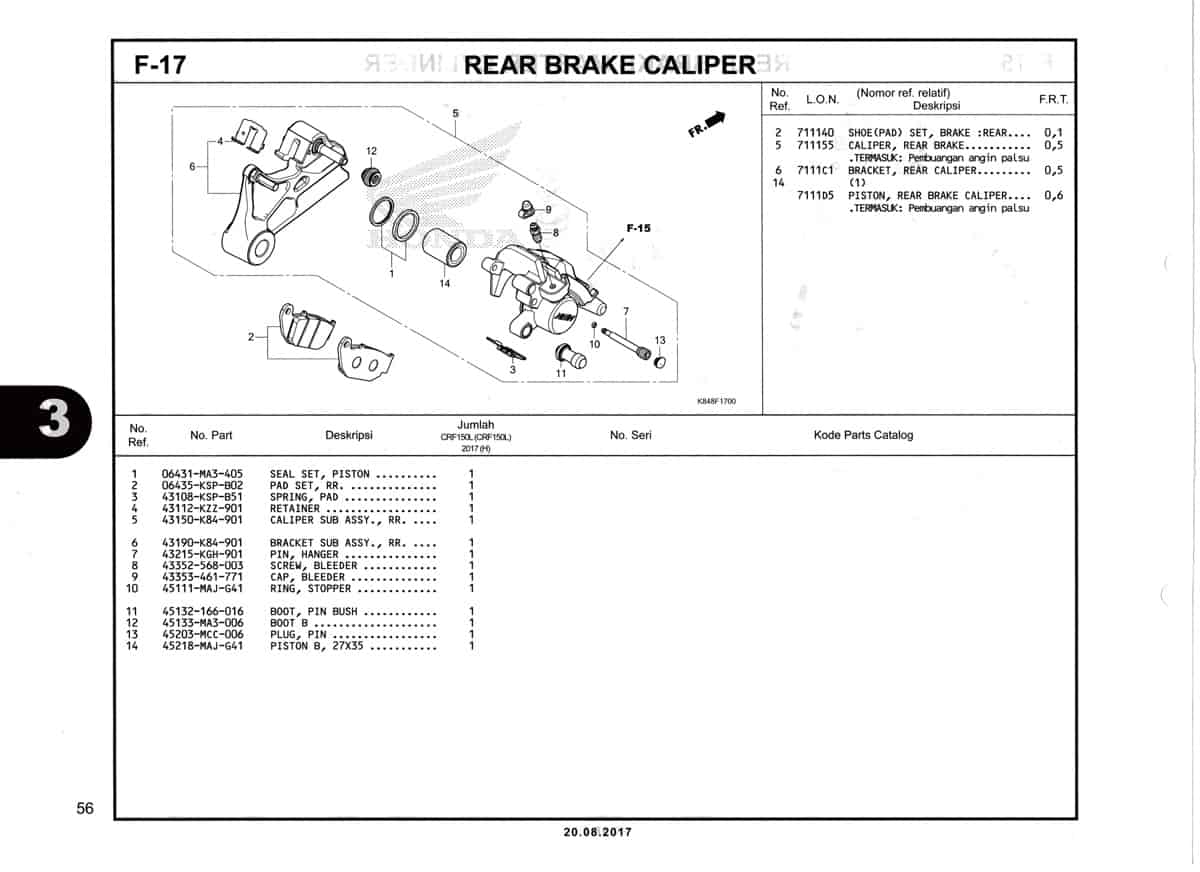

F17 – Rear Brake Caliper – Katalog Honda CRF 150L

#	Informasi Produk	Visual
1	Seal Set Piston Part Number : `06431MA3405`
2	Pad Set RR Part Number : `06435KSPB02`
3	Pad Spring Part Number : `43108KSPB51`
4	Retainer Part Number : `43112KZZ901`
5	Caliper Sub Assy RR Part Number : `43150K84901`
6	Bracket Sub Assy RR Part Number : `43190K84901`
7	Pin Hanger Part Number : `43215KGH901`
8	Screw Bleeder Part Number : `43352568003`
9	Cap Bleeder Part Number : `43353461771`
10	O-Ring 2.5X1.5 Part Number : `45111MAJG41`
11	Bush Pin Part Number : `45132166016`
12	Boot B Pin Part Number : `45133MA3006`
13	Plug Pin Part Number : `45203MCC006`
14	Piston 27B Part Number : `45218MAJG41`
