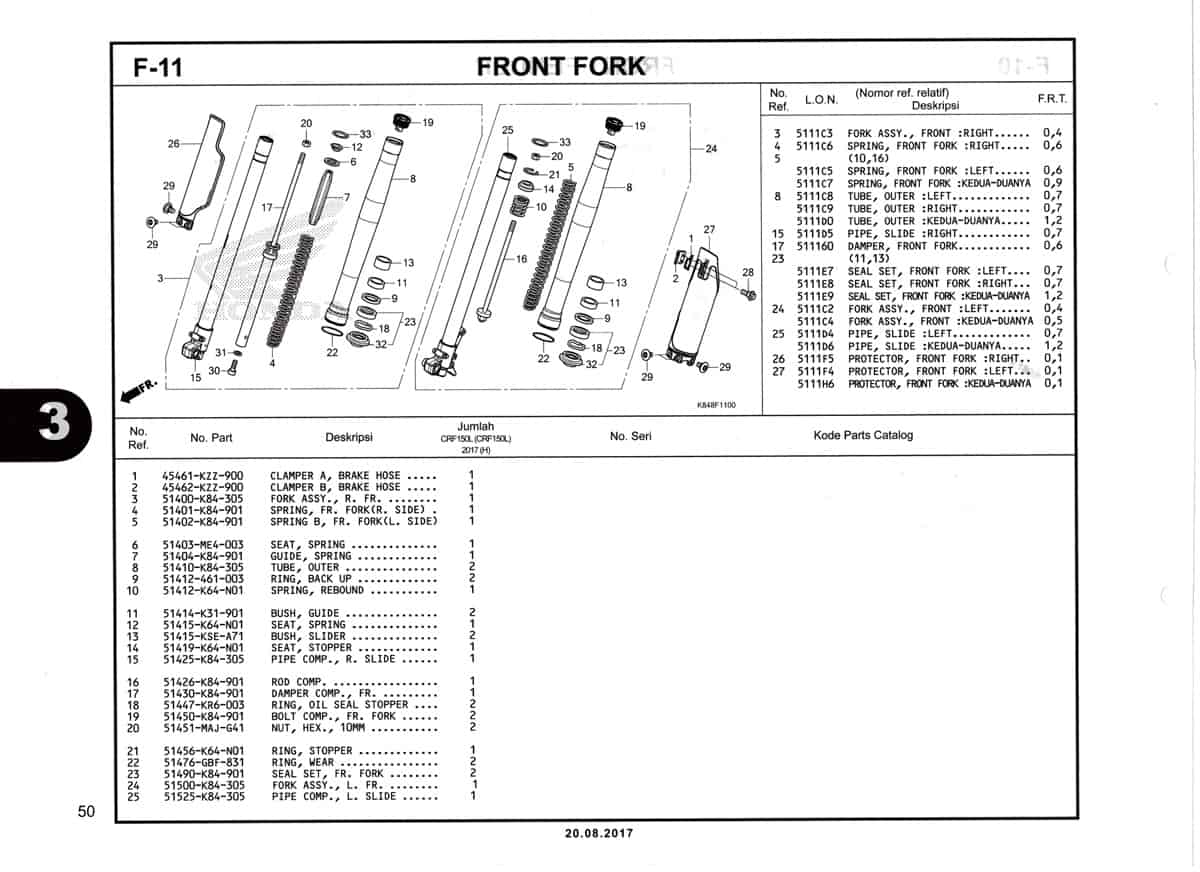

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Clamper A Brake Hose | 45461KZZ900 |
|
| 2 | Clamper B Brake Hose | 45462KZZ900 |
|
| 3 | Fork Assy R FR (SHOWA) | 51400K84305 |
|
| 4 | Spring FR Fork (SHOWA) | 51401K84901 |
|
| 5 | Spring B FR Fork (SHOWA) | 51402K84901 |
|
| 6 | Plate Spring Joint | 51403ME4003 |
|
| 7 | Guide Spring (SHOWA) | 51404K84901 |
|
| 8 | Tube Outer | 51410K84305 |
|
| 9 | Ring Back Up | 51412461003 |
|
| 10 | Spring Rebound | 51412K64N01 |
|
| 11 | Bush Guide | 51414K31901 |
|
| 12 | Seat Spring | 51415K64N01 |
|
| 13 | Bush Slider | 51415KSEA71 |
|
| 14 | Seat Stopper | 51419K64N01 |
|
| 15 | Pipe Comp R Slide | 51425K84305 |
|
| 16 | Rod Comp (SHOWA) | 51426K84901 |
|
| 17 | Damper Comp FR (SHOWA) | 51430K84901 |
|
| 18 | Ring Oil Seat Stopper | 51447KR6003 |
|
| 19 | Bolt Comp FR Fork (SHOWA) | 51450K84901 |
|
| 20 | Nut Hex 10MM | 51451MAJG41 |
|
| 21 | Ring Stopper | 51456K64N01 |
|
| 22 | Ring Wear | 51476GBF831 |
|
| 23 | Seal Set FR Fork (SHOWA) | 51490K84901 |
|
| 24 | Fork Assy L FR (SHOWA) | 51500K84305 |
|
| 25 | Pipe Comp L Slide | 51525K84305 |
|
| 26 | Protector R FR Fork | 51610K84900ZB |
|
| 27 | Protector L FR Fork | 51620K84900ZB |
|
| 28 | Bolt Flange 6MM | 90113KZZ900 |
|
| 29 | Bolt Protector | 90113MAC780 |
|
| 30 | Bolt Socket 8MM | 90116KV3701 |
|
| 31 | Washer Special (8MM) | 90544283000 |
|
| 32 | Seal Dust | 91254GBF831 |
|
| 33 | O-Ring 37.2X2.4 (SHOWA) | 91356MW0003 |
|
