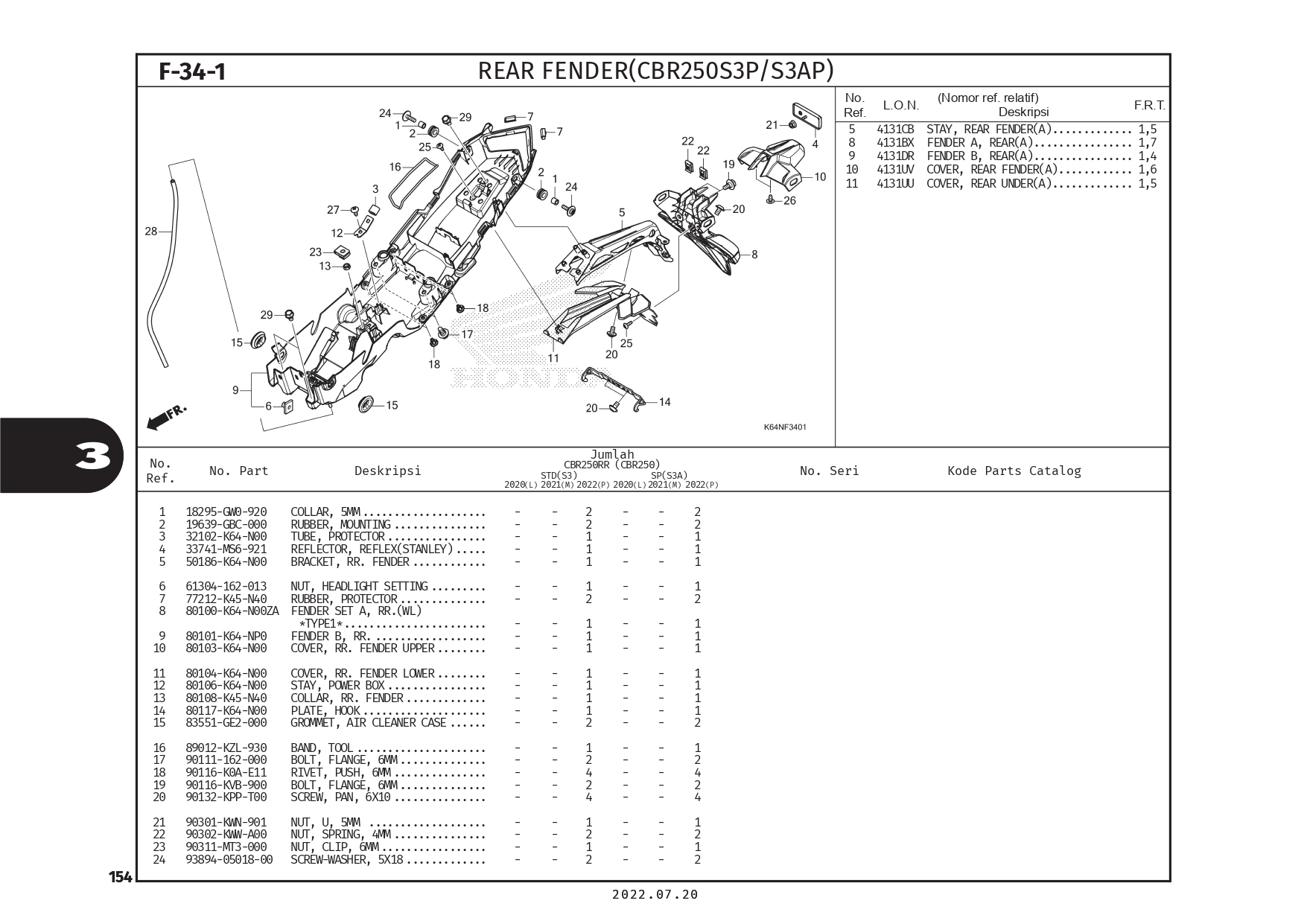

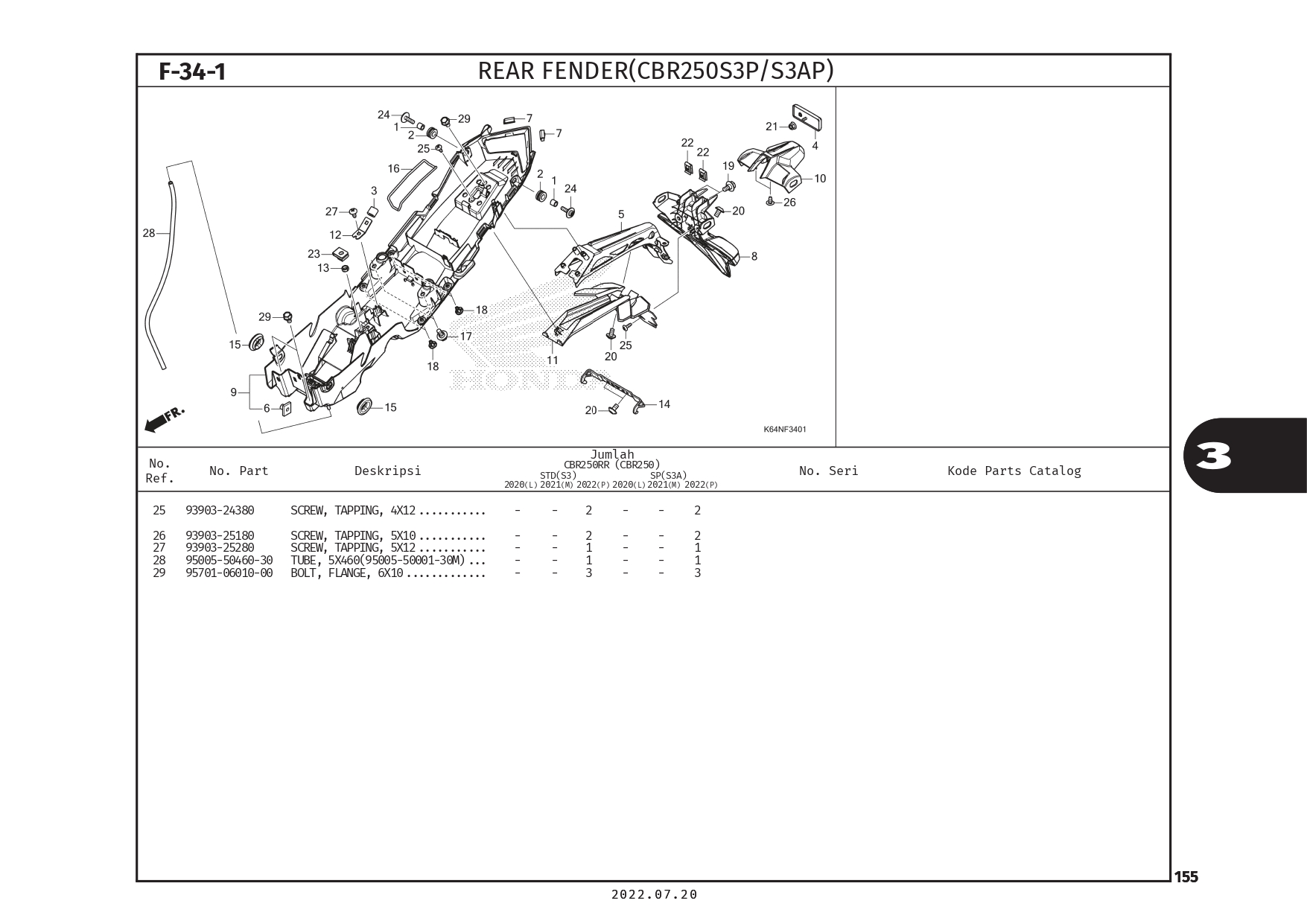

F-34-1 Rear Fender – Katalog Honda CBR 250RR K64N

#	Informasi Produk	Visual
1	COLLAR, 5MM Part Number : `18295GW0920`
2	RUBBER MOUNT Part Number : `19639GBC000`
3	TUBE,PROTECTOR Part Number : `32102K64N00`
4	REFLECTOR REFLEX(ST) Part Number : `33741MS6921`
5	BRACKET, RR. FENDER Part Number : `50186K64N00`
6	NUT, HEADLIGHT SETTING Part Number : `61304162013`
7	RUBBER, PROTECTOR Part Number : `77212K45N40`
8	SET ILLUST,REAR FENDER Part Number : `80100K64N00ZA`
9	FENDER B,REAR Part Number : `80101K64NP0`
10	COVER, RR. FENDER UPPER Part Number : `80103K64N00`
11	COVER, RR. FENDER LOWER Part Number : `80104K64N00`
12	STAY, POWER BOX Part Number : `80106K64N00`
13	COLLAR RR FENDER Part Number : `80108K45N40`
13	COLLAR RR FENDER Part Number : `80108K1Z920`
14	PLATE, HOOK Part Number : `80117K64N00`
15	GROMMET A/C Part Number : `83551GE2000`
16	BAND TOOL Part Number : `89012KZL930`
17	BOLT FLANGE 6MM Part Number : `90111162000`
18	RIVET PUSH 6MM Part Number : `90116K0AE11`
19	BOLT FLANGE 6MM Part Number : `90116KVB900`
20	SCREW,PAN 6X10 Part Number : `90132KPPT00`
21	NUT, U, 5MM Part Number : `90301KWN901`
22	NUT SPRING 4MM Part Number : `90302KWWA00`
23	NUT CLIP 6MM Part Number : `90311MT3000`
24	SCREW-WASHER, 5X18 Part Number : `938940501800`
25	SCREW TAPPING 4X12 Part Number : `9390324380`
26	SCREW, TAPPING, 5X10 Part Number : `9390325180`
27	SCREW, TAPPING, 5X12 Part Number : `9390325280`
28	TUBE, DRAIN, 5X460 Part Number : `950055046030`
29	BOLT FLANGE 6X10 Part Number : `957010601000`
