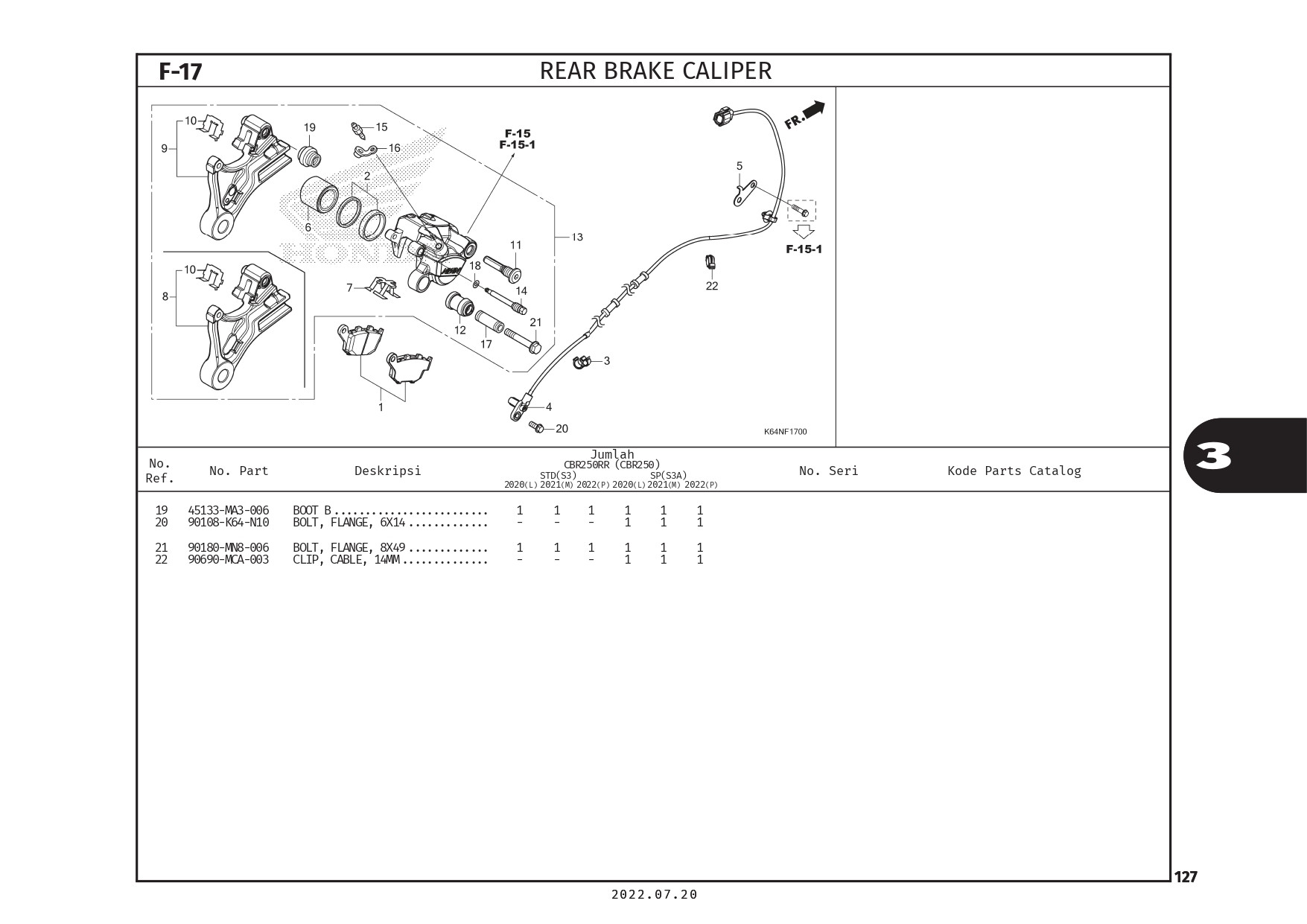

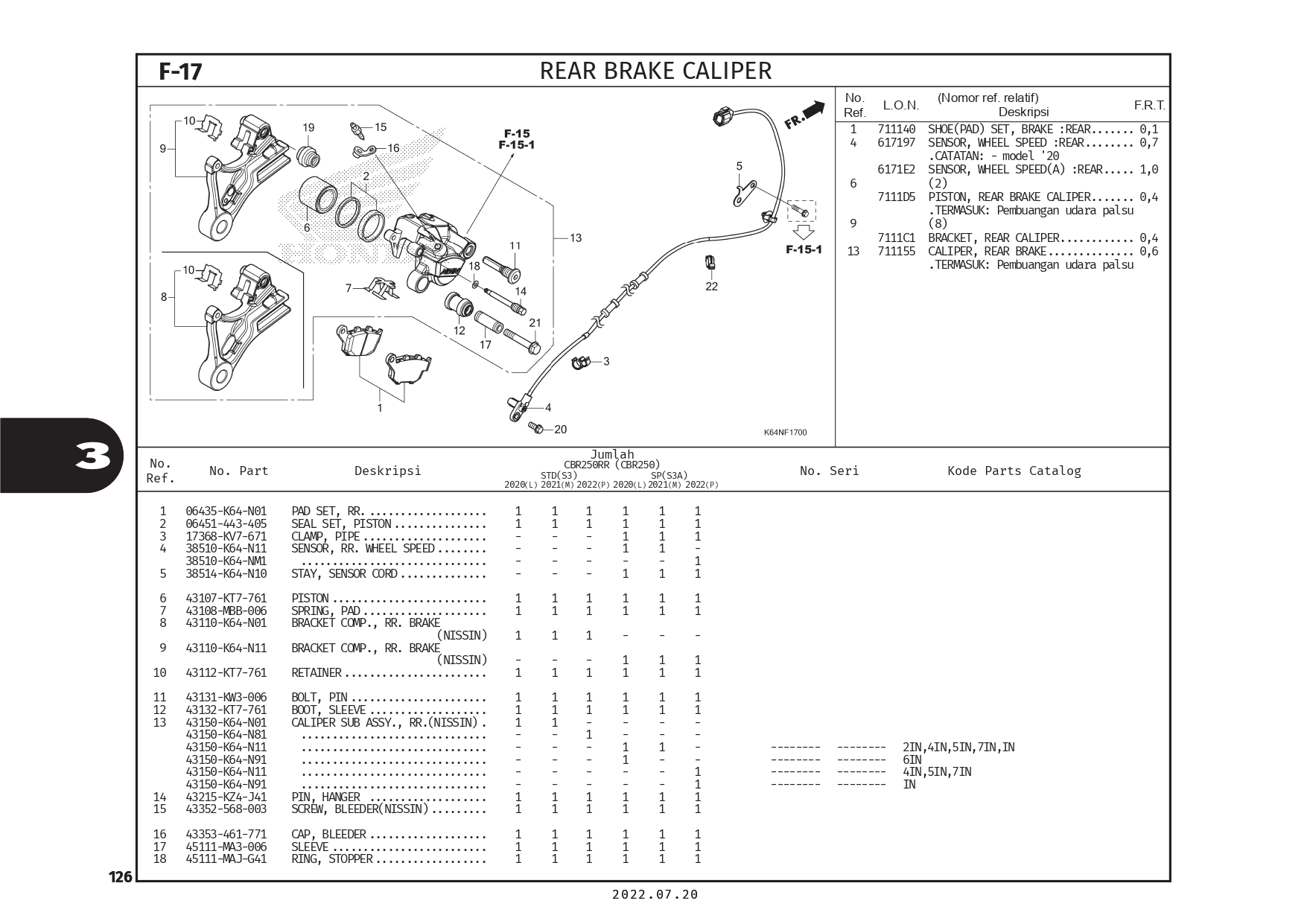

F-17 Rear Brake Caliper – Katalog Honda CBR 250RR K64N

#	Informasi Produk	Visual
1	PAD SET, RR. Part Number : `06435K64N01`
2	SEAL SET,PISTON Part Number : `06451443405`
3	CLAMP, PIPE Part Number : `17368KV7671`
4	SENSOR,WHEEL SPD RR Part Number : `38510K64NM1`
5	STAY, SENSOR CORD Part Number : `38514K64N10`
6	PISTON Part Number : `43107KT7761`
7	SPRING,PAD Part Number : `43108MBB006`
8	BRACKET COMP., RR. BRAKE Part Number : `43110K64N01`
9	BRACKET COMP., RR. BRAKE Part Number : `43110K64N11`
10	RETAINER Part Number : `43112KT7761`
11	BOLT, PIN Part Number : `43131KW3006`
12	BOOT,SLEEVE Part Number : `43132KT7761`
13	CALIPER SUB ASSY., RR. Part Number : `43150K64N81`
13	CALIPER SUB ASSY., RR. Part Number : `43150K64N11`
13	CALIPER SUB ASSY., RR. Part Number : `43150K64N91`
14	PIN HANGER Part Number : `43215KZ4J41`
15	SCREW,BLEEDER Part Number : `43352568003`
16	CAP,BLEEDER Part Number : `43353461771`
17	SLEEVE Part Number : `45111MA3006`
18	O-RING,2.5X1.5 Part Number : `45111MAJG41`
19	BOOT B,PIN Part Number : `45133MA3006`
20	BOLT FLANGE NSHF Part Number : `90108K64N10`
21	BOLT,FLANGE,8X49 Part Number : `90180MN8006`
22	CLIP CABLE 14MM Part Number : `90690MCA003`
