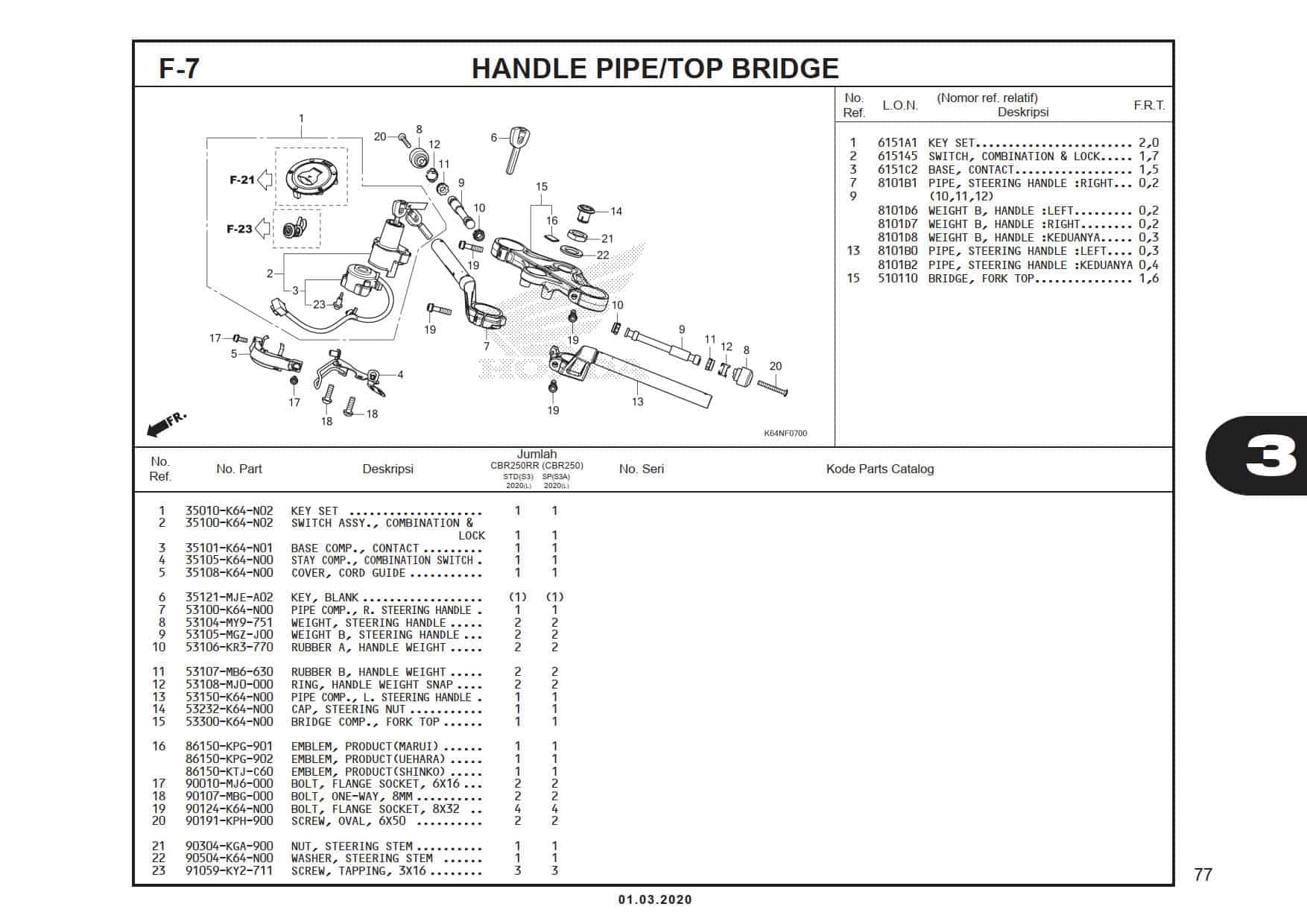

F-7 Handle Pipe/Top Bridge – Katalog Suku Cadang Honda CBR 250RR K64J

#	Informasi Produk	Visual
1	KEY SET Part Number : `35010K64N04`
2	SWITCH ASSY,COMB&LOCK Part Number : `35100K64N02`
3	BASE COMP CONTACT LOCK Part Number : `35101K64N01`
4	STAY COMP., COMBINATION SWITCH Part Number : `35105K64N00`
5	COVER, CORD GUIDE Part Number : `35108K64N00`
6	KEY BLANK Part Number : `35121MJEA02`
7	PIPE COMP., R. STEERING HANDLE Part Number : `53100K64N00`
8	WEIGHT, STEERING HANDLE Part Number : `53104MY9751`
9	WEIGHT B, STEERING HANDLE Part Number : `53105MGZJ00`
10	RUBBER A HDL WEIGHT Part Number : `53106KR3770`
11	RUBBER B HANDLE WEIGHT Part Number : `53107MB6630`
12	SNAPRING,HNDL.WT. Part Number : `53108MJ0000`
13	PIPE COMP., L. STEERING HANDLE Part Number : `53150K64N00`
14	CAP, STEERING NUT Part Number : `53232K64N00`
15	BRIDGE COMP., FORK TOP Part Number : `53300K64N00`
16	EMBLEM, WING MARK Part Number : `86150KPG901`
17	BOLT, FLANGE SOCKET, 6X16 Part Number : `90010MJ6000`
18	BOLT,ONE-WAY 8MM Part Number : `90107MBG000`
19	BOLT, FLANGE SOCKET, 8X32 Part Number : `90124K64N00`
20	SCREW, OVAL, 6X50 Part Number : `90191KPH900`
21	NUT,STRG STEM Part Number : `90304KGA900`
22	WASHER, STEERING STEM Part Number : `90504K64N00`
23	SCREW,TAPP 3X16 Part Number : `91059KY2711`
