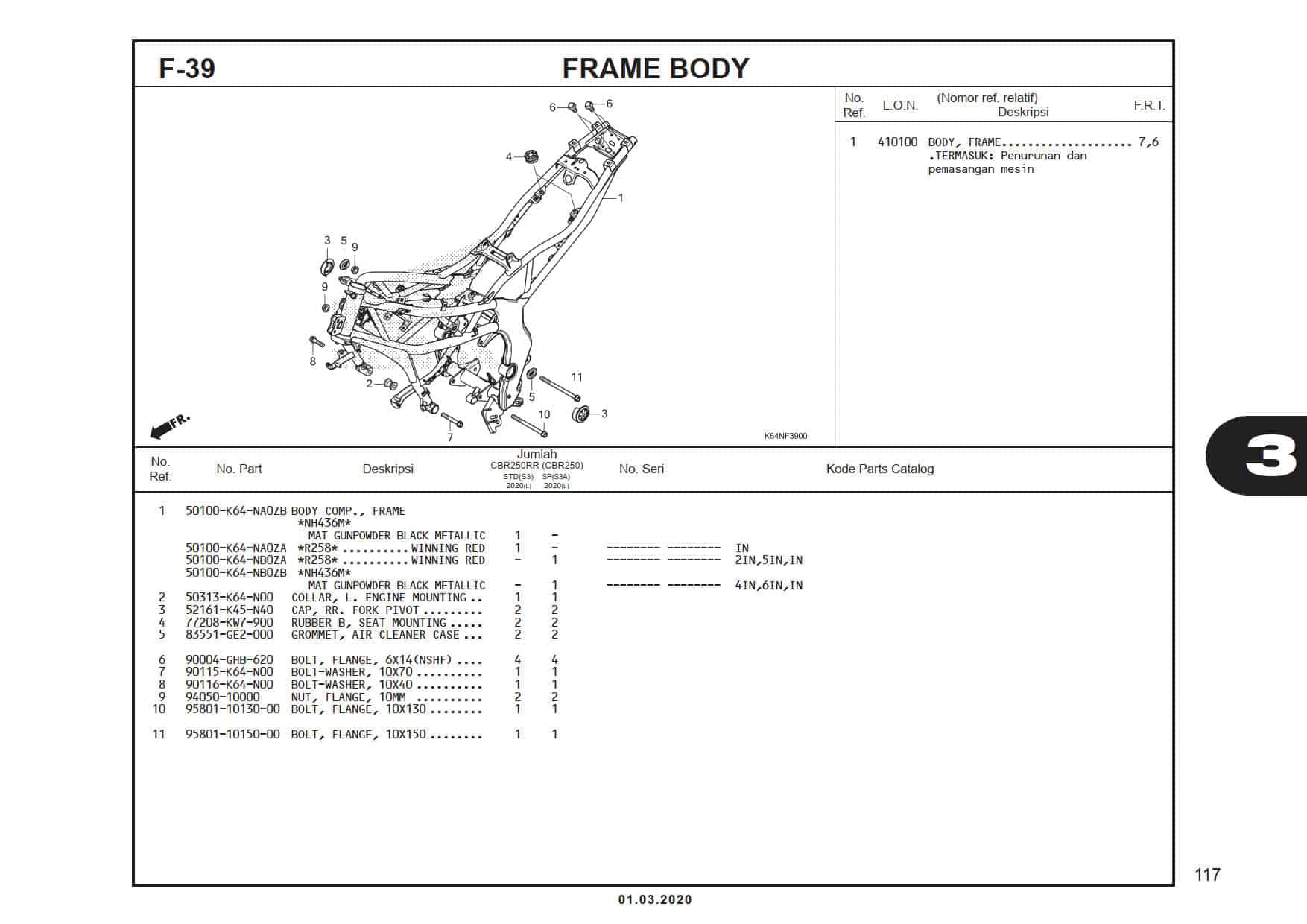

F-39 Frame Body – Katalog Suku Cadang Honda CBR250RR K64J

#	Informasi Produk	Visual
1	FRAME BODY COMP (MT GN BL) Part Number : `50100K64NA0ZB`
2	COLLAR, L. ENGINE MOUNTING Part Number : `50313K64N00`
3	CAP, RR. FORK PIVOT Part Number : `52161K45N40`
4	RUBR.B SEAT MNT. Part Number : `77208KW7900`
5	GROMMET A/C Part Number : `83551GE2000`
6	BOLT, FLANGE, 6X14(NSHF) Part Number : `90004GHB620`
7	BOLT-WASHER, 10X70 Part Number : `90115K64N00`
8	BOLT-WASHER, 10X40 Part Number : `90116K64N00`
9	NUT FLANGE10MM Part Number : `9405010000`
10	BOLT,FLANGE 10X130 Part Number : `958011013000`
11	BOLT, FLANGE, 10X150 Part Number : `958011015000`
