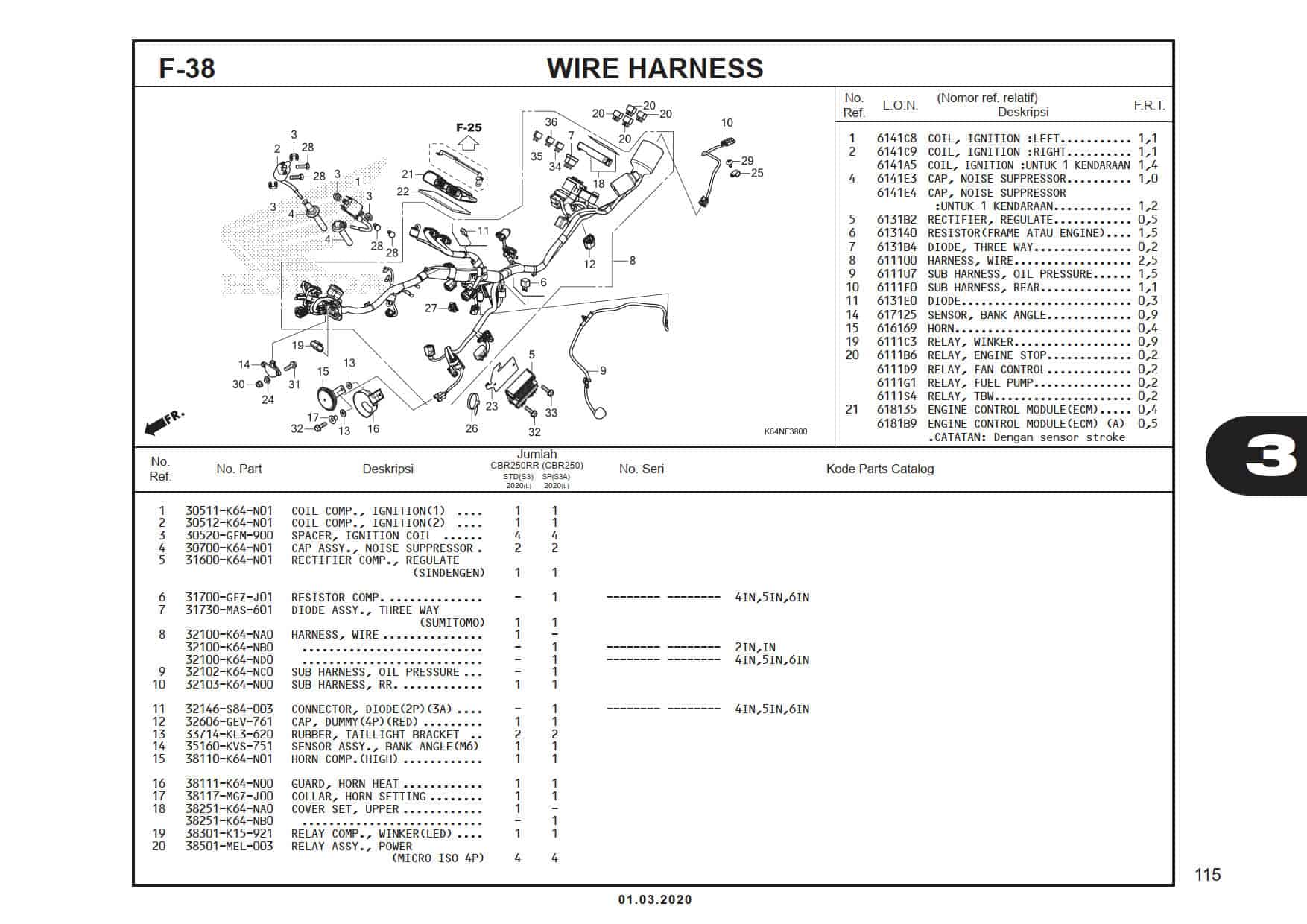

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COIL COMP IGN | 30511K64N01 |
|
| 2 | COIL COMP IGN | 30512K64N01 |
|
| 3 | SPACER IGN COIL | 30520GFM900 |
|
| 4 | CAP ASSY., NOISE SUPPRESSOR | 30700K64N01 |
|
| 5 | REG RECT COMP | 31600K64N01 |
|
| 6 | RESISTOR COMP | 31700GFZJ01 |
|
| 7 | DIODE ASSY,3WAY | 31730MAS601 |
|
| 8 | HARNESS WIRE | 32100K64NA0 |
|
| 8 | HARNESS WIRE | 32100K64NM1 |
|
| 8 | HARNESS WIRE | 32100K64NN1 |
|
| 8 | HARNESS WIRE | 32100K64TG1 |
|
| 9 | SUB HARNESS, OIL P | 32102K64NC0 |
|
| 10 | SUB HARNESS, RR. | 32103K64N00 |
|
| 11 | CONNECTOR DIODE(2P)(3A) | 32146S84003 |
|
| 12 | DUMMY,WPC 4P 090 M (RED) | 32606GEV761 |
|
| 13 | RUBTAIL/LT BRKT. | 33714KL3620 |
|
| 14 | SENSOR ASSY,BANK ANGLE M6 | 35160KVS751 |
|
| 15 | HORN COMP(HIGH) | 38110K64N01 |
|
| 16 | HEAT GUARD HORN | 38111K64N00 |
|
| 17 | COLLAR, HORN SETTING | 38117MGZJ00 |
|
| 18 | UPPER COVER(LABEL) | 38251K64NA0 |
|
| 19 | RELAY COMP LED WINKER | 38301K15921 |
|
| 20 | RELAY ASSY., POWER | 38501MEL003 |
|
| 21 | UNIT COMP, PGM-FI/IGN | 38770K64NA1 |
|
| 22 | RUBBER,PGM-FI IGN | 38772K64N00 |
|
| 23 | PLATE, HEAT GUARD | 50183K64N00 |
|
| 24 | COLLAR | 77103K64N00 |
|
| 25 | CLIP(14MM) | 90628750000 |
|
| 26 | BAND WIRE | 90651KV6003 |
|
| 27 | CLIP COUPLER ND | 91533S5A003 |
|
| 28 | BOLT, HEX., 6X22 | 92101060224J |
|
| 29 | SCREW, TAPPING, 5X12 | 9390325280 |
|
| 30 | NUT,FLANGE 6MM | 9405006000 |
|
| 31 | BOLT FLANGE 6X20 | 957010602000 |
|
| 32 | BOLT FLANGE 6X20 | 957010602007 |
|
| 33 | BOLT FLANGE 6X22 | 957010602200 |
|
| 34 | FUSE, MINI(10A) | 9820041000 |
|
| 35 | FUSE F (15A) | 9820041500 |
|
| 36 | FUSE 30A (MINI) | 9820043000 |
|
