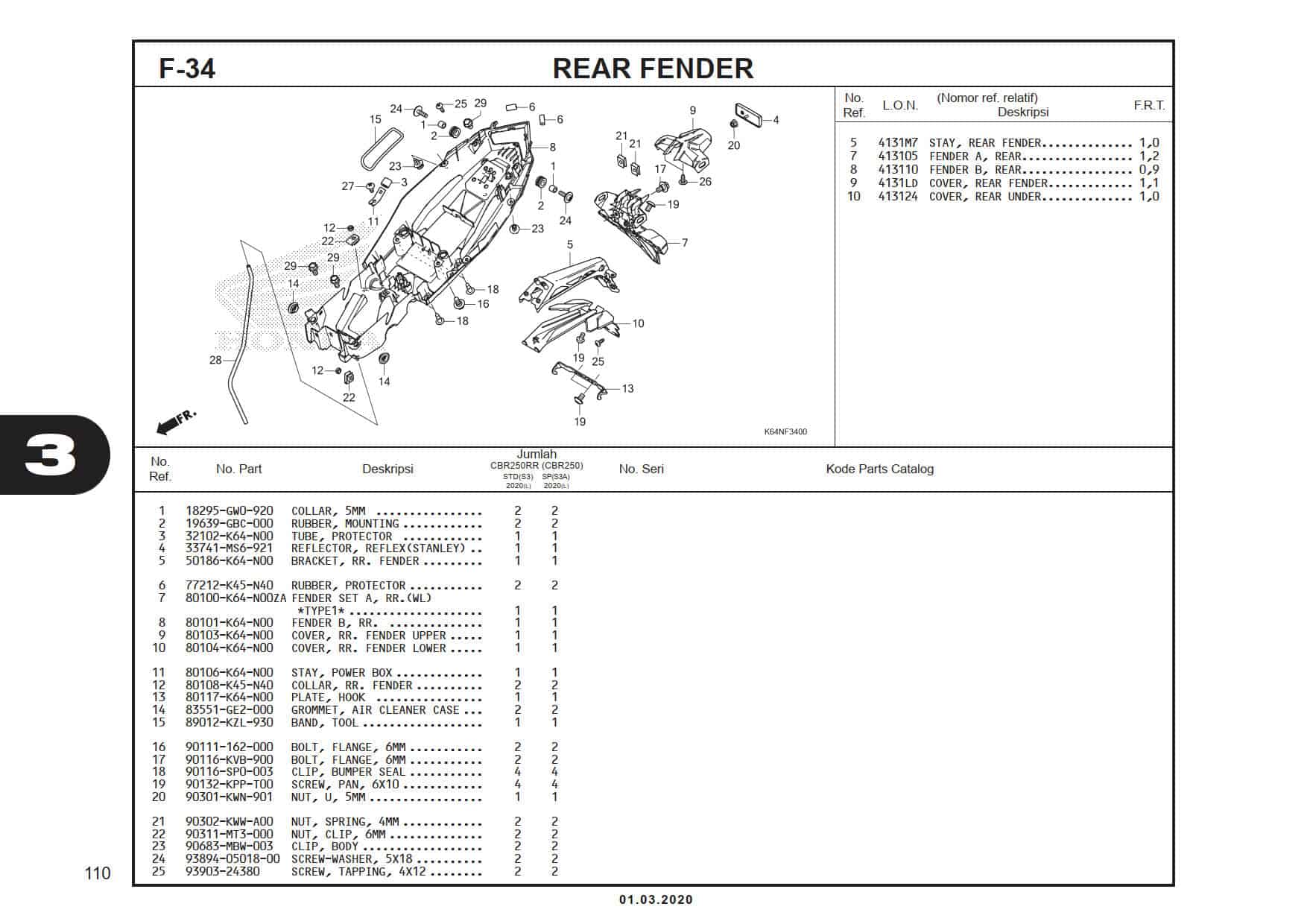

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COLLAR, 5MM | 18295GW0920 |
|
| 2 | RUBBER MOUNT | 19639GBC000 |
|
| 3 | TUBE,PROTECTOR | 32102K64N00 |
|
| 4 | REFLECTOR REFLEX(ST) | 33741MS6921 |
|
| 5 | BRACKET, RR. FENDER | 50186K64N00 |
|
| 6 | RUBBER, PROTECTOR | 77212K45N40 |
|
| 7 | SET ILLUST,REAR FENDER | 80100K64N00ZA |
|
| 8 | FENDER B, RR. | 80101K64N00 |
|
| 9 | COVER, RR. FENDER UPPER | 80103K64N00 |
|
| 10 | COVER, RR. FENDER LOWER | 80104K64N00 |
|
| 11 | STAY, POWER BOX | 80106K64N00 |
|
| 12 | COLLAR RR FENDER | 80108K45N40 |
|
| 12 | COLLAR RR FENDER | 80108K1Z920 |
|
| 13 | PLATE, HOOK | 80117K64N00 |
|
| 14 | GROMMET A/C | 83551GE2000 |
|
| 15 | BAND TOOL | 89012KZL930 |
|
| 16 | BOLT FLANGE 6MM | 90111162000 |
|
| 17 | BOLT FLANGE 6MM | 90116KVB900 |
|
| 18 | CLIP BUMPER HEX,6MM | 90116SP0003 |
|
| 18 | Clip Bumper Seal | 90116K2PV61 |
|
| 19 | SCREW,PAN 6X10 | 90132KPPT00 |
|
| 20 | NUT, U, 5MM | 90301KWN901 |
|
| 21 | NUT SPRING 4MM | 90302KWWA00 |
|
| 22 | NUT CLIP 6MM | 90311MT3000 |
|
| 23 | CLIP, BODY | 90683MBW003 |
|
| 24 | SCREW-WASHER, 5X18 | 938940501800 |
|
| 25 | SCREW TAPPING 4X12 | 9390324380 |
|
| 26 | SCREW TAPPING 5X10 | 9390325120 |
|
| 27 | SCREW,TAPPING,5X12 | 9390325220 |
|
| 28 | TUBE, DRAIN, 5X460 | 950055046030 |
|
| 29 | BOLT FLANGE 6X10 | 957010601000 |
|
