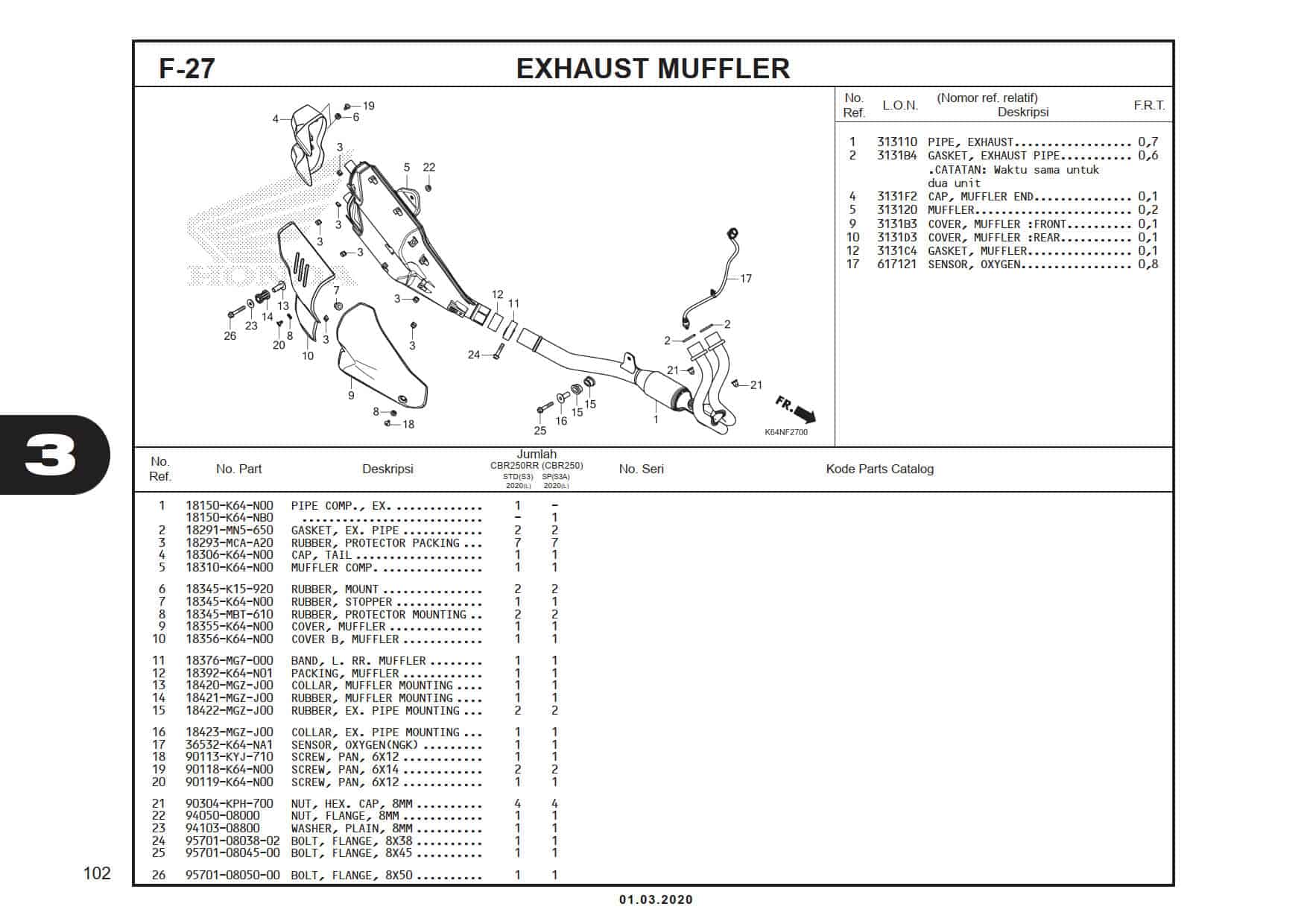

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | PIPE COMP EX | 18150K64N00 |
|
| 1 | PIPE COMP EX | 18150K64JH0 |
|
| 2 | GASKET EXH.PIPE | 18291MN5650 |
|
| 3 | RUBBER PROTECTOR PACK | 18293MCAA20 |
|
| 4 | CAP, TAIL | 18306K64N00 |
|
| 4 | Cap Tail | 18306K64NP0 |
|
| 5 | MUFFLER COMP. | 18310K64N00 |
|
| 5 | MUFFLER COMP | 18310K64JC1 |
|
| 6 | RUBBER,MOUNT | 18345K15920 |
|
| 7 | RUBBER, STOPPER | 18345K64N00 |
|
| 8 | RUBBER PROTECTOR MOUNT | 18345MBT610 |
|
| 9 | COVER, MUFFLER | 18355K64N00 |
|
| 10 | COVER B, MUFFLER | 18356K64N00 |
|
| 11 | BAND, L. RR. MUFFLER | 18376MG7000 |
|
| 12 | PACKING, MUFFLER | 18392K64N01 |
|
| 13 | COLLAR, MUFFLER MOUNTING | 18420MGZJ00 |
|
| 14 | RUBBER, MUFFLER MOUNTING | 18421MGZJ00 |
|
| 15 | RUBBER, EX. PIPE MOUNTING | 18422MGZJ00 |
|
| 16 | COLLAR, EX. PIPE MOUNTING | 18423MGZJ00 |
|
| 17 | SENSOR, OXYGEN | 36532K64NA1 |
|
| 17 | SENSOR, OXYGEN | 36532K64NP1 |
|
| 18 | SCREW PAN 6X12 | 90113KYJ710 |
|
| 19 | SCREW, PAN, 6X14 | 90118K64N00 |
|
| 20 | SCREW, PAN, 6X12 | 90119K64N00 |
|
| 21 | NUT HEX CAP,8MM | 90304KPH700 |
|
| 22 | NUT FLANGE 8MM | 9405008000 |
|
| 23 | WASHER, PLAIN, 8MM | 9410308800 |
|
| 24 | BOLT,FLANGE,8X38 | 957010803802 |
|
| 25 | BOLT FLANGE 8X45 | 957010804500 |
|
| 26 | BOLT FLANGE 8X50 | 957010805000 |
|
