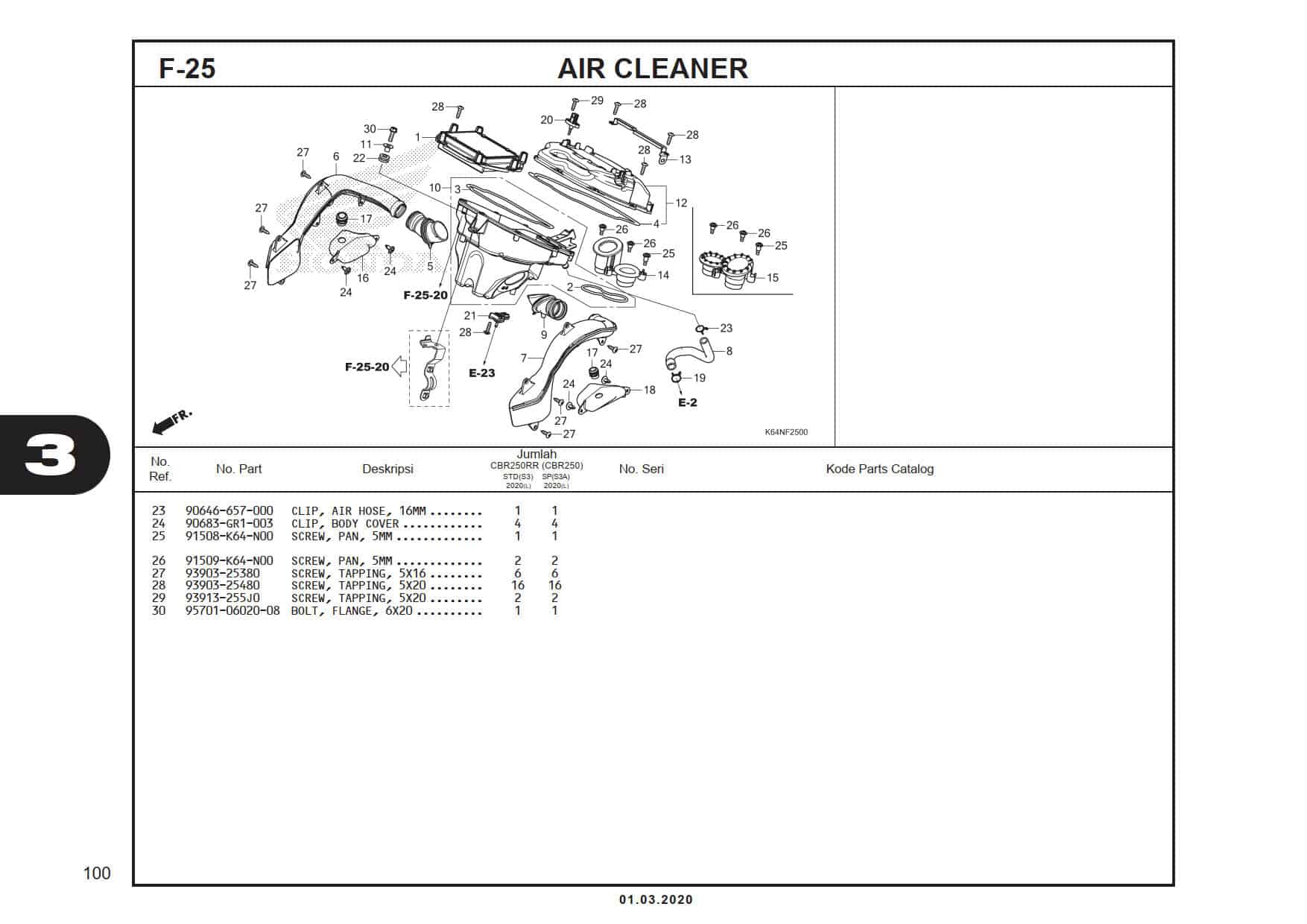

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | ELEMENT COMP AIR CLEANER | 17210K64N00 |
|
| 2 | SEAL AIR CLEANER | 17212K64N00 |
|
| 3 | SEAL B AIR CLEANER | 17213K64N00 |
|
| 4 | SEAL C AIR CLEANER | 17214K64N00 |
|
| 5 | DUCT R AIR CLEANER RUB | 17215K64N00 |
|
| 6 | DUCT, R. AIR CLEANER | 17216K64N00 |
|
| 7 | DUCT, L. AIR CLEANER | 17217K64N00 |
|
| 8 | TUBE BREATHER | 17218K64N00 |
|
| 9 | DUCT L AIR CLEANER RUB | 17219K64N00 |
|
| 9 | DUCT L AIR CLEANER RUB | 17219K64NP0 |
|
| 10 | CASE SUB ASSY AIR CLEANER | 17225K64N00 |
|
| 11 | COLLAR, AIR CLEANER MOUNTING | 17232KYJ900 |
|
| 12 | CVR SUB ASSY AIR CLEANER | 17235K64N00 |
|
| 13 | PLATE, PGM-FI UNIT | 17239K64N00 |
|
| 14 | FUNNEL | 17253K64N00 |
|
| 15 | FUNNEL | 17253K64NB0 |
|
| 16 | RESONATOR, R. | 17262K64N00 |
|
| 17 | JOINT RESONATOR | 17263K64NB0 |
|
| 18 | RESONATOR, L. | 17264K64N00 |
|
| 19 | CLIP,TANK HOSE | 17724102700 |
|
| 20 | SENSOR ASSY., AIR TEMP | 37880KWWC01 |
|
| 21 | SENSOR,M/P PRESSURE | 46401TM8A01 |
|
| 22 | RUBBER COVER | 83545KCJ690 |
|
| 23 | CLIP,AIR HOSE,16 | 90646657000 |
|
| 24 | CLIP, BODY COVER | 90683GR1003 |
|
| 25 | SCREW PAN 5MM | 91508K64N00 |
|
| 26 | SCREW PAN 5MM | 91509K64N00 |
|
| 27 | SCREW, TAPPING, 5X16 | 9390325380 |
|
| 28 | SCREW,TAPP 5X2 | 9390325480 |
|
| 29 | SCREW, TAPPING, 5X20 | 93913255J0 |
|
| 30 | BOLT FLANGE 6X20 | 957010602008 |
|
