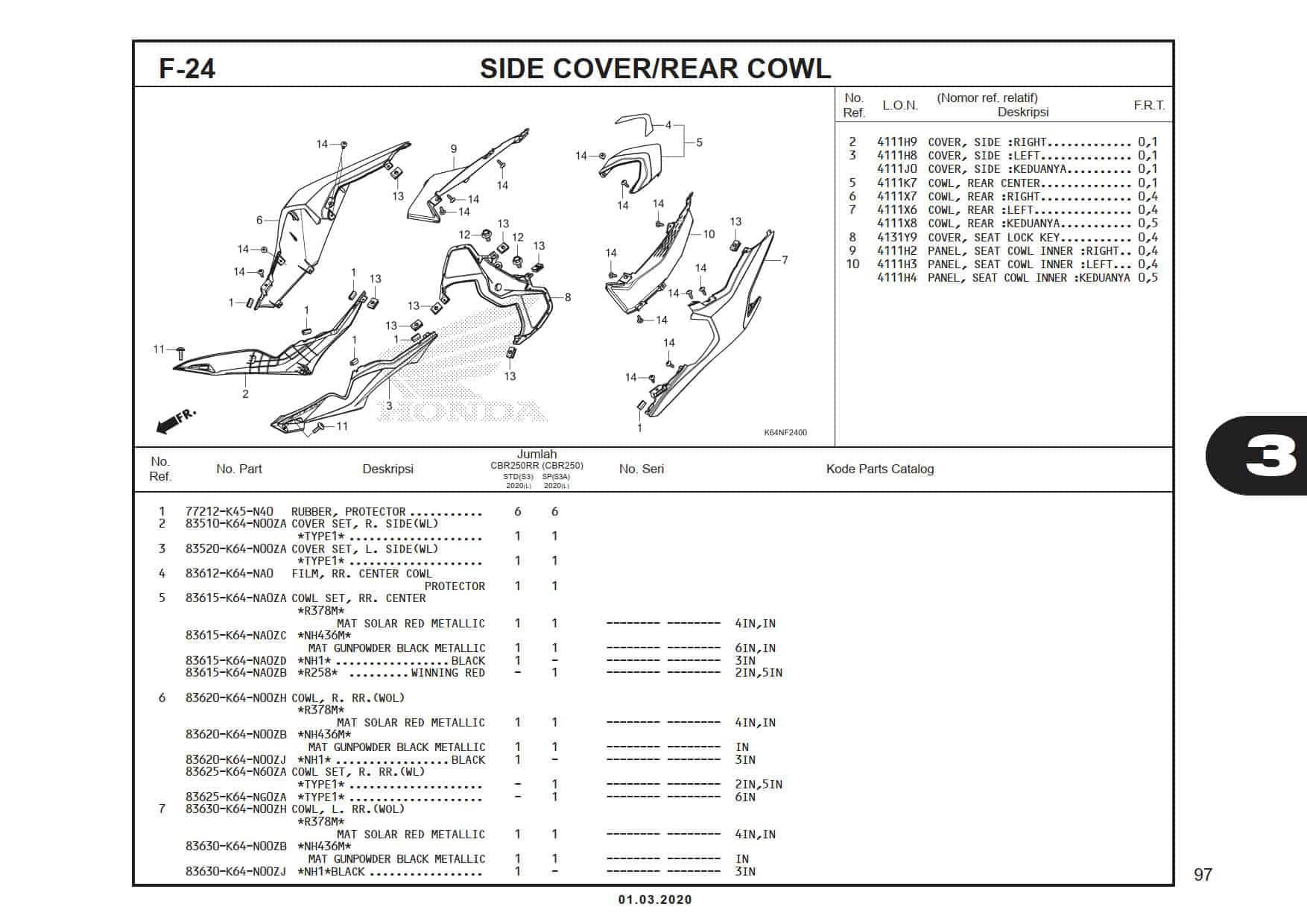

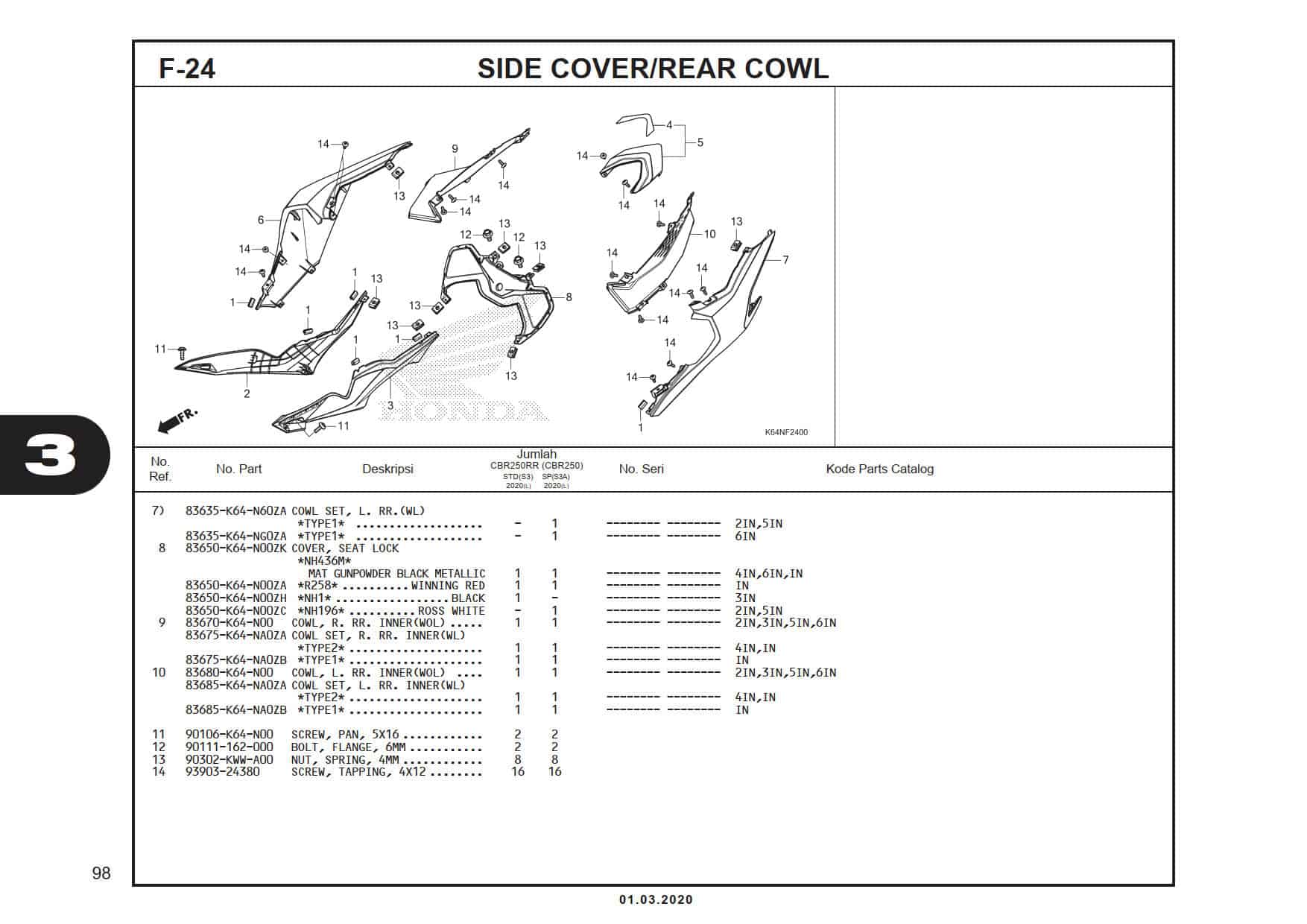

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER, PROTECTOR | 77212K45N40 |
|
| 2 | SET ILLUST,R SIDE | 83510K64N00ZA |
|
| 3 | SET ILLUST,L SIDE | 83520K64N00ZA |
|
| 4 | FILM, RR CENTER COWL PROTECTOR | 83612K64NA0 |
|
| 5 | SET, RR CENTER COWL, R-378M | 83615K64NA0ZA |
|
| 5 | SET, RR CENTER COWL, NH-436M | 83615K64NA0ZC |
|
| 5 | SET, RR CENTER COWL (WN RD) | 83615K64NA0ZB |
|
| 6 | COWL,R REAR (MT SO RED) | 83620K64N00ZH |
|
| 6 | COWL R REAR (MT GN BL) | 83620K64N00ZB |
|
| 6 | COWL,R REAR (BLK) | 83620K64N00ZJ |
|
| 6 | COWL SET, R. RR.(WL) | 83625K64N60ZA |
|
| 6 | Cowl R Rear (MA AX GY) | 83620K64NP0ZF |
|
| 6 | Cowl R Rear WN RD | 83620K64NP0ZD |
|
| 7 | Cowl L Rear WN RD | 83630K64NP0ZD |
|
| 7 | Cowl L Rear (MA AX GY) | 83630K64NP0ZF |
|
| 7 | COWL,L REAR (MT SO RED) | 83630K64N00ZH |
|
| 7 | COWL L REAR (MT GN BL) | 83630K64N00ZB |
|
| 7 | COWL,L REAR (BLK) | 83630K64N00ZJ |
|
| 7 | COWL SET, L. RR.(WL) | 83635K64N60ZA |
|
| 8 | COVER, SEAT LOCK (MT GN BL) | 83650K64N00ZK |
|
| 8 | CVR SEAT LOCK (WN RD) | 83650K64N00ZA |
|
| 8 | COVER,SEAT LOCK (BLK) | 83650K64N00ZH |
|
| 8 | CVR SEAT LOCK (RO WH) | 83650K64N00ZC |
|
| 9 | COWL R. RR. INNER | 83670K64N00 |
|
| 9 | SET ILLUST, R RR CWL INNER TYP 2 | 83675K64NA0ZA |
|
| 9 | SET ILLUST, R REAR COWL INNER, TYPE 1 | 83675K64NA0ZB |
|
| 10 | COWL L. RR. INNER | 83680K64N00 |
|
| 10 | SET ILLUST, L RR CWL INNER TYP 2 | 83685K64NA0ZA |
|
| 10 | SET ILLUST, L REAR COWL INNER, TYPE 1 | 83685K64NA0ZB |
|
| 11 | SCREW, PAN, 5X16 | 90106K64N00 |
|
| 12 | BOLT FLANGE 6MM | 90111162000 |
|
| 13 | NUT SPRING 4MM | 90302KWWA00 |
|
| 14 | SCREW TAPPING 4X12 | 9390324380 |
|
