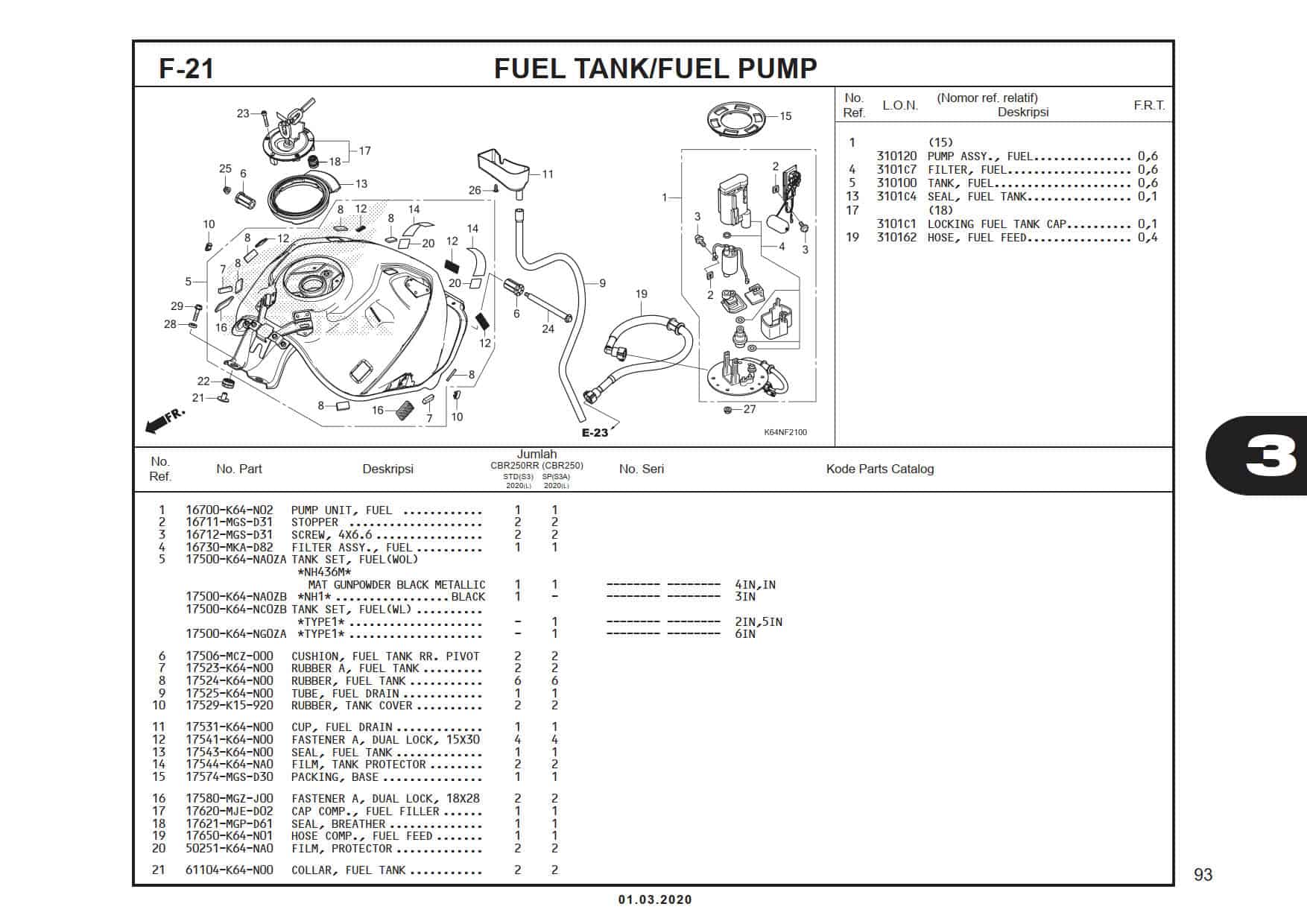

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | UNIT ASSY,FUEL PUMP | 16700K64N02 |
|
| 1 | UNIT ASSY,FUEL PUMP | 16700K64N03 |
|
| 2 | STOPPER | 16711MGSD31 |
|
| 3 | SCREW, 4X6.6 | 16712MGSD31 |
|
| 4 | FILTER ASSY,FUEL | 16730MKTD01 |
|
| 5 | SET, FUEL TANK (MT GN BL) | 17500K64NA0ZA |
|
| 5 | SET, FUEL TANK (TYPE 1) | 17500K64NC0ZB |
|
| 5 | SET FUEL TANK (WN RD) | 17500K64NK0ZA |
|
| 5 | Tank Comp Fuel (MT ZO BL) | 17510K64N00MZB |
|
| 6 | CUSHION, FUEL TANK RR. PIVOT | 17506MCZ000 |
|
| 7 | RUBBER A, FUEL TANK | 17523K64N00 |
|
| 8 | RUBBER, FUEL TANK | 17524K64N00 |
|
| 9 | TUBE, FUEL DRAIN | 17525K64N00 |
|
| 10 | RUBBER, TANK COVER | 17529K15920 |
|
| 11 | CUP, FUEL DRAIN | 17531K64N00 |
|
| 12 | FASTENER A, DUAL LOCK, 15X30 | 17541K64N00 |
|
| 13 | SEAL, FUEL TANK | 17543K64N00 |
|
| 14 | FILM, TANK PROTECTOR | 17544K64NA0 |
|
| 15 | PACKING, BASE | 17574MGSD30 |
|
| 16 | FASTENER A DUAL L(18X28) | 17580MGZJ00 |
|
| 17 | CAP COMP, FUEL FILLER | 17620MJED04 | - |
| 18 | SEAL, BREATHER | 17621MGPD62 |
|
| 19 | HOSE COMP., FUEL FEED | 17650K64N01 |
|
| 20 | FILM, PROTECTOR | 50251K64NA0 |
|
| 21 | COLLAR, FUEL TANK | 61104K64N00 |
|
| 22 | RUBBER,TAILLIGHT | 84703425000 |
|
| 23 | BOLT, SOCKET, 4X24(SUS) | 90110MGPD60 |
|
| 24 | BOLT, TANK HINGE | 90135K64N00 |
|
| 25 | NUT U 6MM | 90301473003 |
|
| 26 | SCREW TAPPING 4X12 | 9390324320 |
|
| 27 | NUT,FLANGE 6MM | 9405006080 |
|
| 28 | WASHER, PLAIN, 6MM | 9410306700 |
|
| 29 | BOLT, FLANGE, 6X25 | 957010602507 |
|
