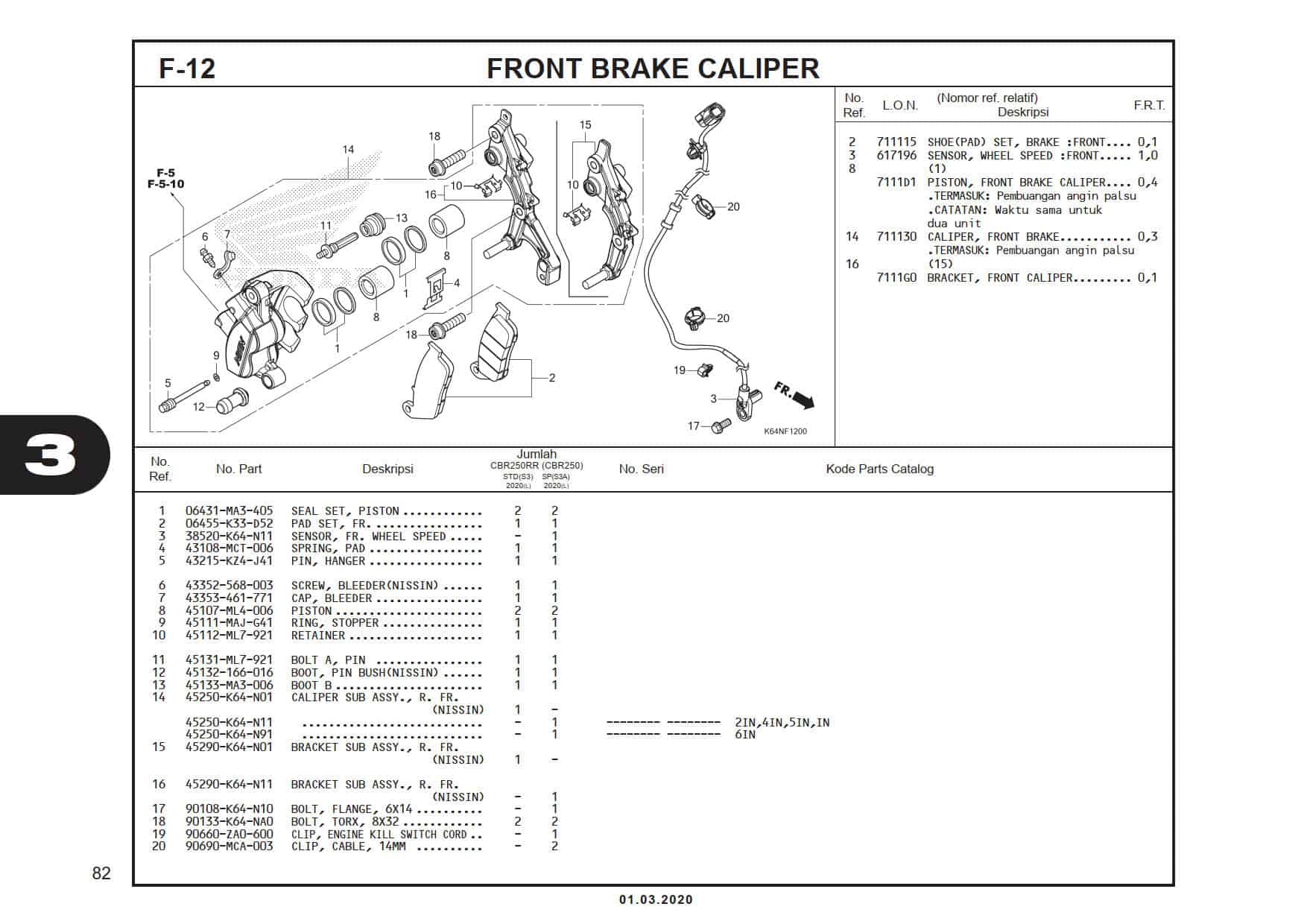

F-12 Front Brake Caliper – Katalog Suku Cadang Honda CBR250RR K64J

#	Informasi Produk	Visual
1	SEAL SET,PISTON Part Number : `06431MA3405`
2	PAD SET, FR. Part Number : `06455K33D52`
3	SENSOR WHEEL SPD Part Number : `38520K64N11`
4	SPRING PAD Part Number : `43108MCT006`
5	PIN HANGER Part Number : `43215KZ4J41`
6	SCREW,BLEEDER Part Number : `43352568003`
7	CAP,BLEEDER Part Number : `43353461771`
8	PISTON Part Number : `45107ML4006`
9	O-RING,2.5X1.5 Part Number : `45111MAJG41`
10	RETAINER,BRKT Part Number : `45112ML7921`
11	BOLT A,PIN Part Number : `45131ML7921`
12	BUSH PIN Part Number : `45132166016`
13	BOOT B,PIN Part Number : `45133MA3006`
14	CALIPER SUB ASSY., R. FR. Part Number : `45250K64N01`
14	CALIPER SUB ASSY., R. FR. Part Number : `45250K64N11`
14	CALIPER SUB ASSY., R. FR. Part Number : `45250K64N91`
15	BRACKET SUB ASSY., R. FR. Part Number : `45290K64N01`
16	BRACKET SUB ASSY., R. FR. Part Number : `45290K64N11`
17	BOLT FLANGE NSHF Part Number : `90108K64N10`
18	BOLT, TORX 8X32 Part Number : `90133K64NA0`
19	CLIP, ENGINE KILL SWITCH CORD Part Number : `90660ZA0600`
20	CLIP CABLE 14MM Part Number : `90690MCA003`
