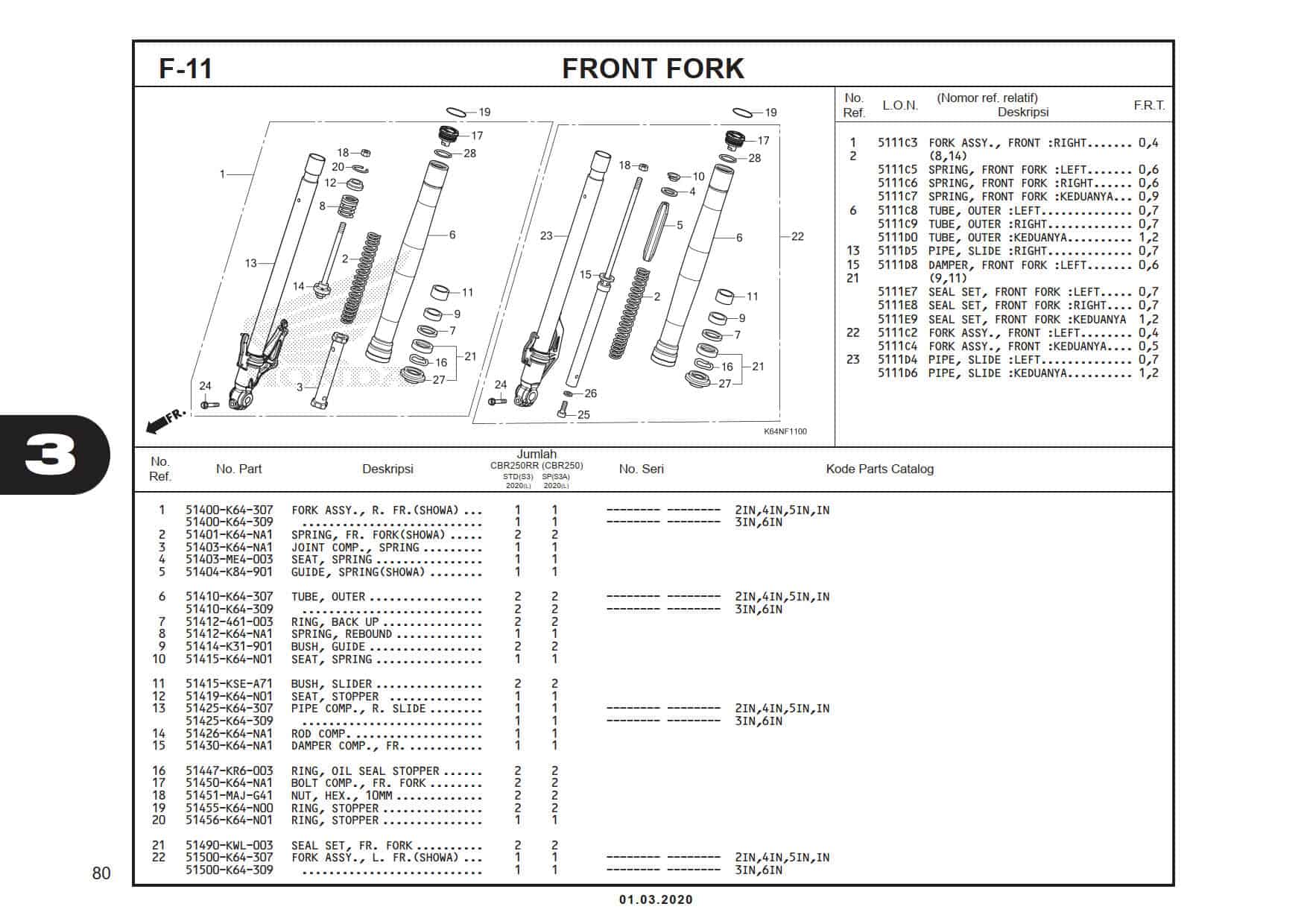

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY,R FRONT | 51400K64307 |
|
| 1 | FORK ASSY,R FRONT | 51400K64309 |
|
| 2 | SPRING, FR FORK | 51401K64NA1 |
|
| 3 | SPG JOINT COMP | 51403K64NA1 |
|
| 4 | PLATE,SPG.JOINT | 51403ME4003 |
|
| 5 | GUIDE, SPRING(SHOWA) | 51404K84901 |
|
| 6 | TUBE,OUTER | 51410K64307 |
|
| 6 | TUBE,OUTER | 51410K64309 |
|
| 7 | RING,BACK UP | 51412461003 |
|
| 8 | SPRING, REBOUND | 51412K64NA1 |
|
| 9 | BUSH, GUIDE | 51414K31901 |
|
| 10 | SEAT, SPRING | 51415K64N01 |
|
| 11 | BUSH, SLIDER | 51415KSEA71 |
|
| 12 | SEAT, STOPPER | 51419K64N01 |
|
| 13 | PIPE COMP,R SLIDE | 51425K64307 |
|
| 13 | PIPE COMP,R SLIDE | 51425K64309 |
|
| 14 | ROD COMP | 51426K64NA1 |
|
| 15 | DAMPER COMP, FRONT | 51430K64NA1 |
|
| 16 | RING,OIL SEAT STOP | 51447KR6003 |
|
| 17 | BOLT COMP, FR FORK | 51450K64NA1 |
|
| 18 | NUT, HEX., 10MM | 51451MAJG41 |
|
| 19 | RING STOPPER | 51455K64N00 |
|
| 20 | RING, STOPPER | 51456K64N01 |
|
| 21 | SEAL SET,FR FORK | 51490KWL003 |
|
| 22 | FORK ASSY,L FRONT | 51500K64307 |
|
| 22 | FORK ASSY,L FRONT | 51500K64309 |
|

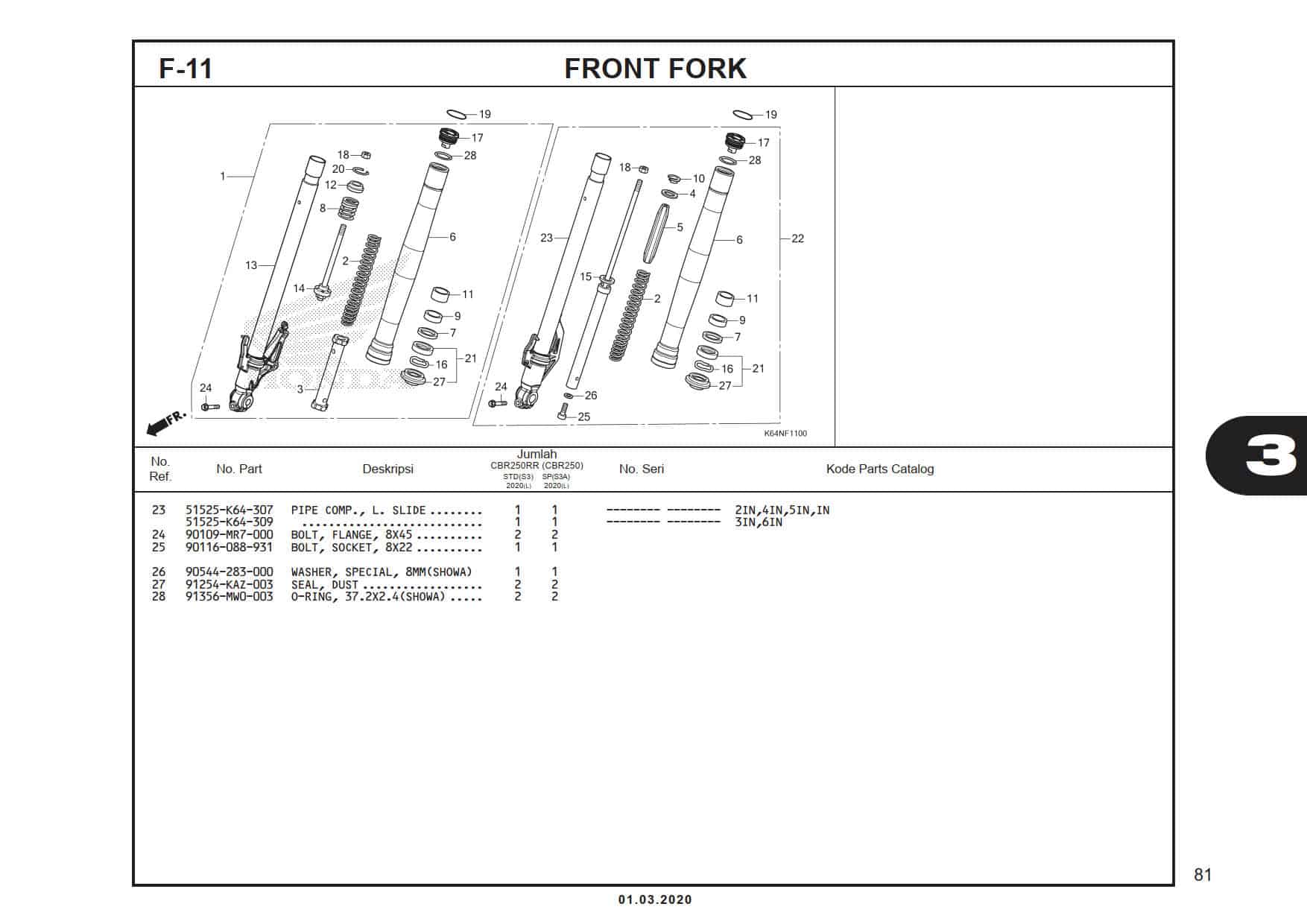

| 23 | PIPE COMP,L SLIDE | 51525K64307 |
|
| 23 | PIPE COMP,L SLIDE | 51525K64309 |
|
| 24 | BOLT,FLANGE,8X45 | 90109MR7000 |
|
| 25 | BOLT, SOCKET, 8X22 | 90116088931 |
|
| 26 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 27 | SEAL DUST | 91254KAZ003 |
|
| 28 | O-RING, 37.2X2.4(SHOWA) | 91356MW0003 |
|
