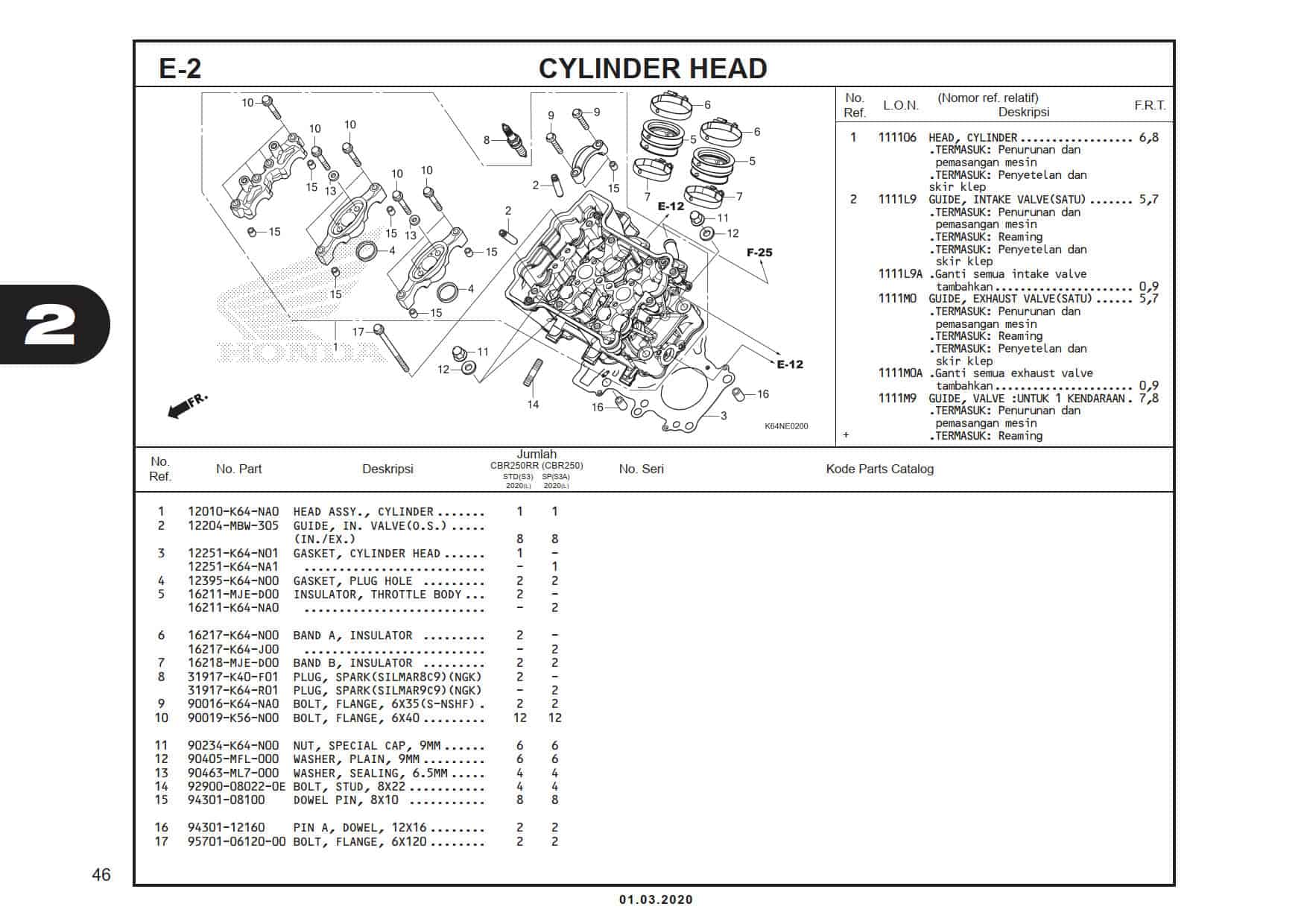

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD ASSY, CYLINDER | 12010K64NA0 |
|
| 1 | Head Assy Cylinder | 12010K64NM0 |
|
| 2 | GUIDE, IN. VALVE(O.S.) | 12204MBW305 |
|
| 3 | GASKET, CYLINDER HEAD | 12251K64N01 |
|
| 3 | GASKET, CYLINDER HEAD | 12251K64NA1 |
|
| 4 | GASKET PLUG HOLE | 12395K64N00 |
|
| 5 | INSULATOR, THROTTLE BODY | 16211MJED00 |
|
| 5 | INSULATOR, THROTTLE BODY | 16211K64NA0 |
|
| 6 | BAND A INSULATOR | 16217K64N00 |
|
| 6 | BAND A, INSULATOR | 16217K64J00 |
|
| 7 | BAND B, INSULATOR | 16218MJED00 |
|
| 8 | PLUG, SPARK(SILMAR8C9)(NGK) | 31917K40F01 |
|
| 8 | SPARK PLUGSILMAR9C9(NGK) | 31917K64NA1 |
|
| 9 | BOLT, FLANGE S-NSHF 6X35 | 90016K64NA0 |
|
| 10 | BOLT FLANGE 6X40 | 90019K56N00 |
|
| 11 | NUT, SPECIAL CAP, 9MM | 90234K64N00 |
|
| 12 | WASHER, PLAIN, 9MM | 90405MFL000 |
|
| 13 | WASHER SEALING 6.5MM | 90463ML7000 |
|
| 14 | BOLT,STUD 2 8X22 | 92900080220E |
|
| 15 | PIN DOWEL 8X10 | 9430108100 |
|
| 16 | PIN KNCK,12X16 | 9430112160 |
|
| 17 | BOLT,FLANGE,6X120 | 957010612000 |
|
