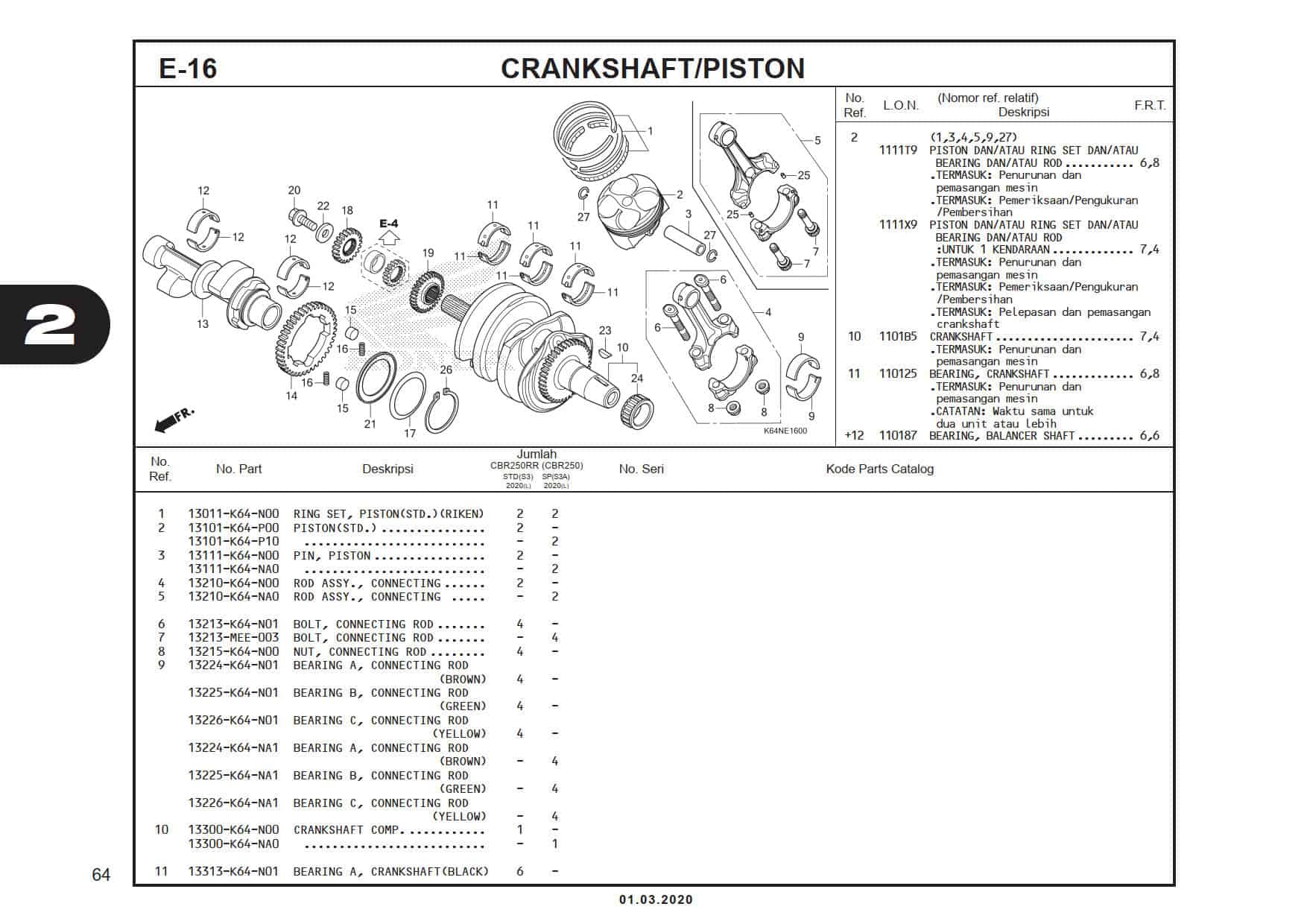

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RING SET PISTON (STD) | 13011K64N00 |
|
| 1 | Ring Set Piston (std) | 13011K64NM0 |
|
| 1 | PISTON (STD) | 13101K64P00 |
|
| 2 | PISTON | 13101K64P11 |
|
| 3 | PIN PISTON | 13111K64N00 |
|
| 3 | PIN, PISTON | 13111K64NA0 |
|
| 4 | ROD ASSY., CONNECTING | 13210K64N00 |
|
| 5 | CONN ROD ASSY | 13210K64NA0 |
|
| 6 | BOLT, CONNECTING ROD | 13213K64N01 |
|
| 7 | BOLT, CONN ROD | 13213MEE003 |
|
| 8 | NUT, CONNECTING ROD | 13215K64N00 |
|
| 9 | BRG CONN-ROD A | 13224K64N01 |
|
| 9 | BRG CONN-ROD B | 13225K64N01 |
|
| 9 | BRG CONN-ROD C | 13226K64N01 |
|
| 9 | BRG, CONN-ROB A | 13224K64NA1 |
|
| 9 | BRG, CONN-ROD B | 13225K64NA1 |
|
| 9 | BRG, CONN-ROD C | 13226K64NA1 |
|
| 10 | CRANKSHAFT COMP D | 13300K64N00 |
|
| 10 | CRANKSHAFT COMP | 13300K64NA0 |
|
| 11 | BRG A CRANK | 13313K64N01 |
|
| 11 | BRG B CRANK | 13314K64N01 |
|
| 11 | BRG C CRANK | 13315K64N01 |
|
| 11 | BRG D CRANK | 13316K64N01 |
|
| 11 | BRG E CRANK | 13317K64N01 |
|
| 11 | BRG, A CRANK | 13313K64NA1 |
|
| 11 | BRG, B CRANK | 13314K64NA1 |
|
| 11 | BRG, C CRANK | 13315K64NA1 |
|
| 11 | BRG, D CRANK | 13316K64NA1 |
|
| 11 | BRG, E CRANK | 13317K64NA1 |
|
| 11 | BRG BALANCER SHAF | 13323K64N01 |
|
| 11 | BRG BALANCER SHAF | 13324K64N01 |
|
| 11 | BRG BALANCER SHAF | 13325K64N01 |
|
| 11 | BRG BALANCER SHAF | 13326K64N01 |
|
| 11 | BRG BALANCER SHAF-SIDE E | 13327K64N01 |
|
| 12 | BRG, BALANCER SHAFT A | 13323K64NA1 |
|
| 12 | BRG, BALANCER SHAFT B | 13324K64NA1 |
|
| 12 | BRG, BALANCER SHAFT C | 13325K64NA1 |
|
| 12 | BRG, BALANCER SHAFT D | 13326K64NA1 |
|
| 12 | BRG, BALANCER SHAFT E | 13327K64NA1 |
|
| 13 | SHAFT COMP., BALANCER | 13420K64N00 |
|
| 13 | SHAFT COMP, BALANCER | 13420K64NA0 |
|
| 14 | GEAR, BALANCER DRIVEN(40T) | 13422K64N00 |
|
| 15 | RUBBER, BALANCER DUMPER | 13425K64NA1 |
|
| 15 | RUBBER, BALANCER DUMPER(IKP) | 13425KWC901 |
|
| 15 | RUBBER, BALANCER DUMPER | 13425KGH901 |
|
| 16 | SPRING BALANCER GEAR | 13427KPP860 |
|
| 17 | SPRING, THRUST | 13438K64N00 |
|
| 18 | GEAR, OIL PUMP DRIVE(21T) | 15131K64N00 |
|
| 19 | GEAR A, PRIMARY DRIVE | 23121K64NA0 |
|
| 19 | GEAR B, PRIMARY DRIVE | 23122K64NA0 |
|
| 19 | GEAR C, PRIMARY DRIVE | 23123K64NA0 |
|
| 20 | BOLT, SPECIAL, 10X25 | 90013430000 |
|
| 21 | WASHER, 38X52 | 90403K64N00 |
|
| 22 | WASHER, PLAIN, 10X26X4 | 90406K64N00 |
|
| 23 | KEY,WOODRUFF,25X18 | 90742KYJ900 |
|
| 24 | BRG NEEDLE 30X41X21 LBL | 91021MBWJ21 |
|
| 25 | PIN DOWEL,3X5 | 9430303050 |
|
| 26 | CIRCLIP, EXTERNAL, 38MM | 9451038150 |
|
| 27 | CLIP,PISTON PIN | 9460115000 |
|
