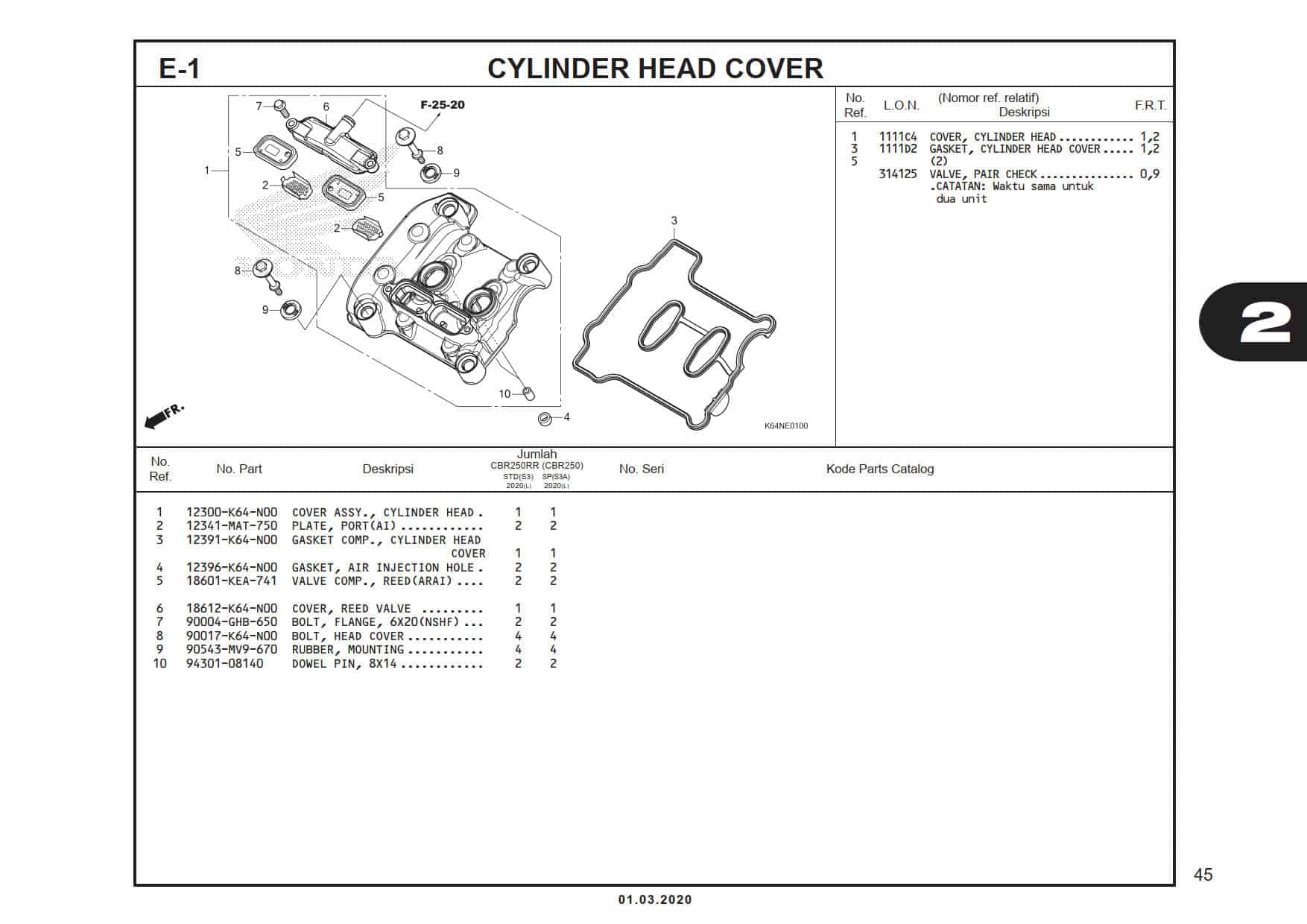

E-1 Cylinder Head Cover – Katalog Suku Cadang Honda CBR 250RR K64J

#	Informasi Produk	Visual
1	COVER ASSY., CYLINDER HEAD Part Number : `12300K64N00`
2	PLATE,AI PORT Part Number : `12341MAT750`
3	GASKET COMP HEAD Part Number : `12391K64N00`
4	GASKET AI HOLE COVER Part Number : `12396K64N00`
5	REED VALVE COMP Part Number : `18601KEA741`
6	COVER, REED VALVE Part Number : `18612K64N00`
7	BOLT FLANGE 6X20 Part Number : `90004GHB650`
8	BOLT, HEAD COVER Part Number : `90017K64N00`
9	RUBBER, MOUNTING Part Number : `90543MV9670`
10	PIN DOWEL 8X14 Part Number : `9430108140`
