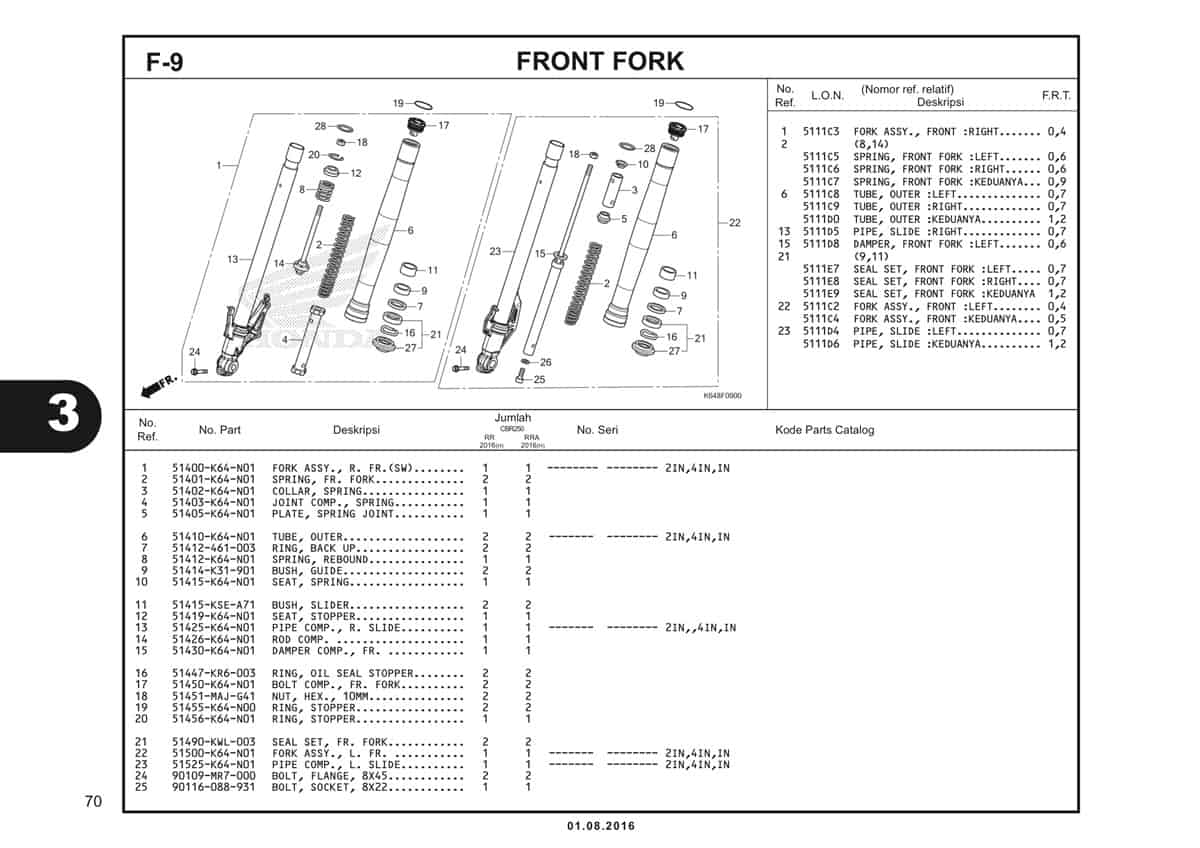

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Fork Assy R FR (SW) | 51400K64N01 |
|
| 2 | Spring FR Fork | 51401K64N01 |
|
| 3 | Collar Spring | 51402K64N01 |
|
| 4 | Joint Comp Spring | 51403K64N01 |
|
| 5 | Plate Spring Joint | 51405K64N01 |
|
| 6 | Tube Outer | 51410K64N01 |
|
| 7 | Ring Back Up | 51412461003 |
|
| 8 | Spring Rebound | 51412K64N01 |
|
| 9 | Bush Guide | 51414K31901 |
|
| 10 | Seat Spring | 51415K64N01 |
|
| 11 | Bush Slider | 51415KSEA71 |
|
| 12 | SEAT, STOPPER | 51419K64N01 |
|
| 13 | Pipe Comp R Slide | 51425K64N01 |
|
| 14 | Rod Comp | 51426K64N01 |
|
| 15 | Damper Comp FR | 51430K64N01 |
|
| 16 | Ring Oil Seat Stop | 51447KR6003 |
|
| 17 | Bolt Comp FR Fork | 51450K64N01 |
|
| 18 | Nut Hex 10MM | 51451MAJG41 |
|
| 19 | Ring Stopper | 51455K64N00 |
|
| 20 | Ring Stopper | 51456K64N01 |
|
| 21 | Seal Set FR Fork | 51490KWL003 |
|
| 22 | Fork Assy L FR (SW) | 51500K64N01 |
|
| 23 | Pipe Comp L Slide | 51525K64N01 |
|
| 24 | Collar 10.5X5.3X3 | 90109MR7000 |
|
| 25 | Bolt Socket 8X22 | 90116088931 |
|
| 26 | Washer Special (8MM) | 90544283000 |
|
| 27 | Seal Dust | 91254KAZ003 |
|
| 28 | O-Ring 37.2X2.4 (SW) | 91356MW0003 |
|
