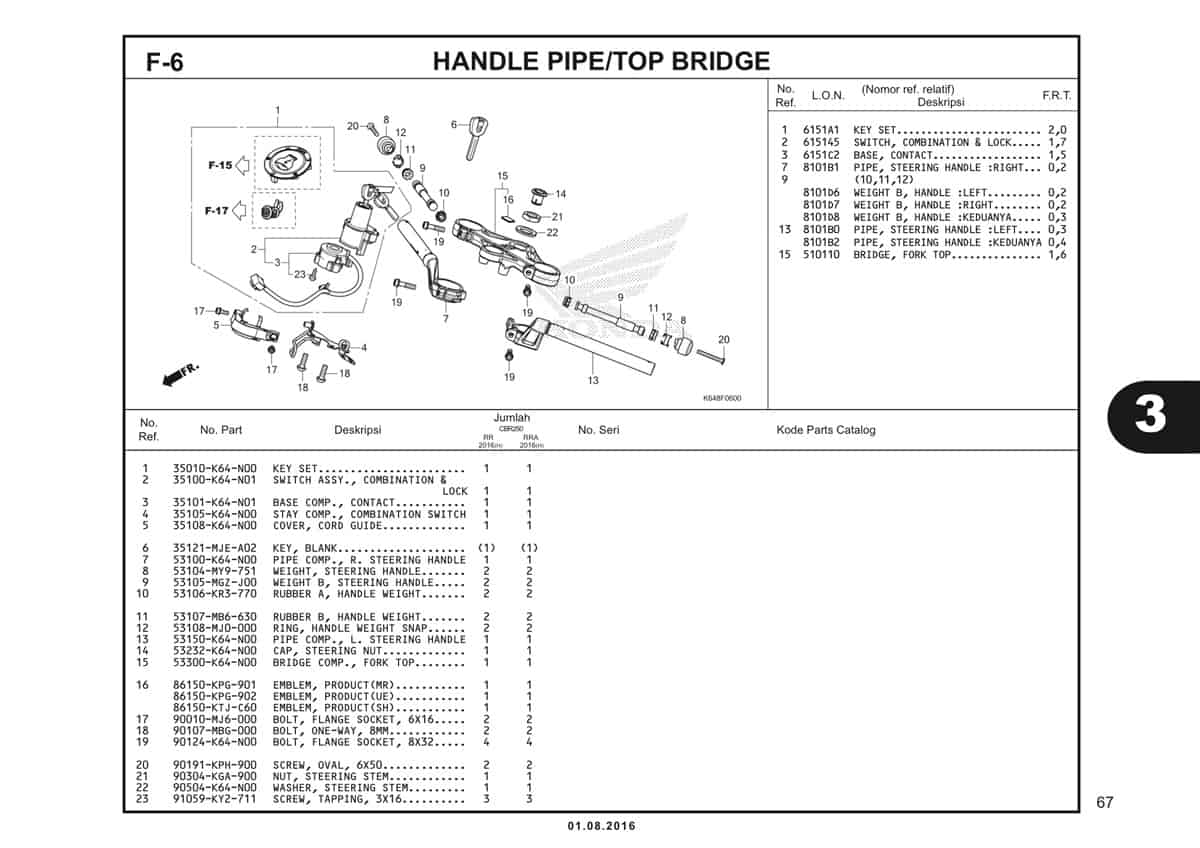

F6 – Handle Pipe/Top Bridge – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Key Set Part Number : `35010K64N00`
2	Switch Assy Combination Part Number : `35100K64N01`
3	Base Comp Contact Lock Part Number : `35101K64N01`
4	Stay Comp Combination Switch Part Number : `35105K64N00`
5	Cover Cord Guide Part Number : `35108K64N00`
6	Key Blank Part Number : `35121MJEA02`
7	Pipe Comp R Steering Handle Part Number : `53100K64N00`
8	Weight Steering Handle Part Number : `53104MY9751`
9	Weight B Steering Handle Part Number : `53105MGZJ00`
10	Rubber A Handle Weight Part Number : `53106KR3770`
11	Rubber B Handle Weight Part Number : `53107MB6630`
12	Snapring Handle Weight Part Number : `53108MJ0000`
13	Pipe Comp L Steering Handle Part Number : `53150K64N00`
14	Cap Steering Nut Part Number : `53232K64N00`
15	Bridge Comp Fork Top Part Number : `53300K64N00`
16	Emblem Wing Mark Part Number : `86150KPG901`
17	Emblem Product (UEHARA) Part Number : `86150KPG902`
18	Emblem Product Part Number : `86150KTJC60`
19	Bolt Flange Socket 6X16 Part Number : `90010MJ6000`
20	Bolt One-Way 8MM Part Number : `90107MBG000`
21	Bolt Flange Socket 8X32 Part Number : `90124K64N00`
22	Screw Oval 6X50 Part Number : `90191KPH900`
23	Nut Steering Stem Part Number : `90304KGA900`
24	Washer Steering Stem Part Number : `90504K64N00`
25	Screw Tapping 3X16 Part Number : `91059KY2711`
