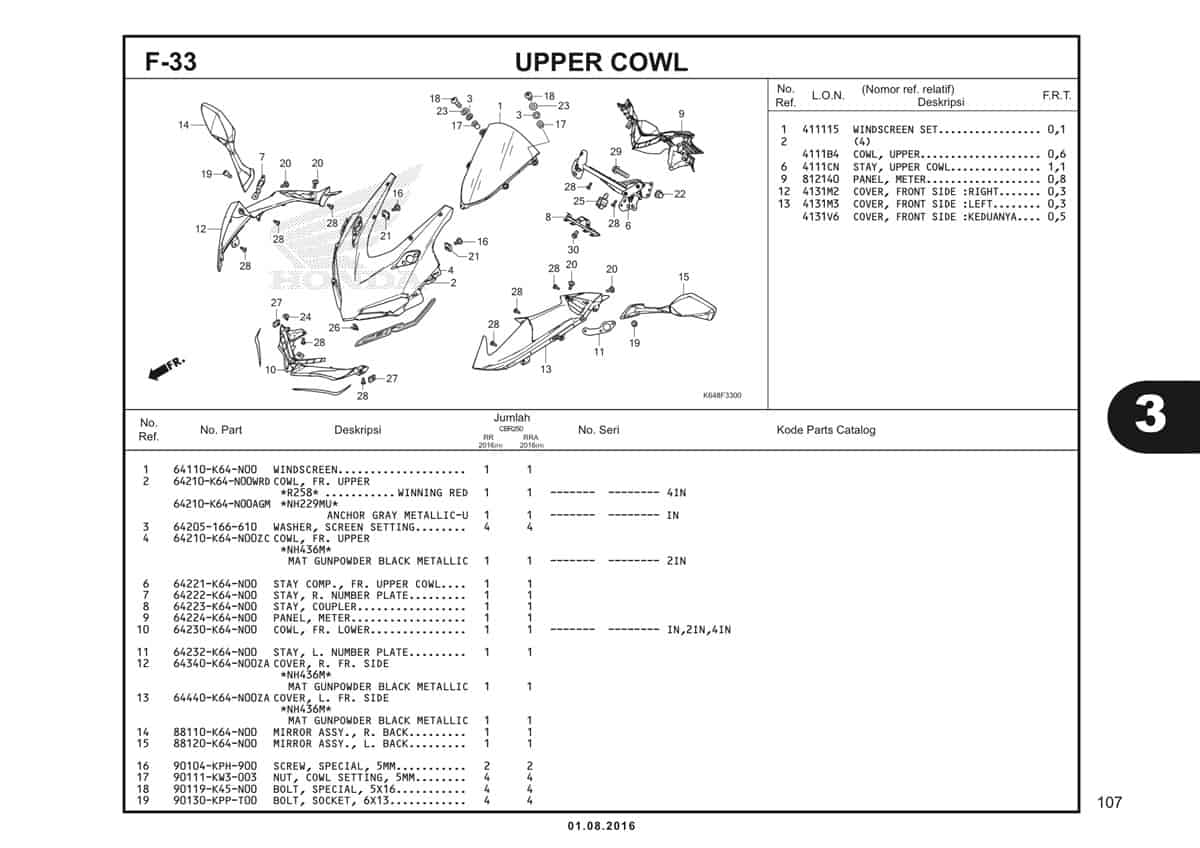

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Wind Screen | 64110K64N00 |
|
| 2 | Cowl FR Upper (WN RD) | 64210K64N00ZB |
|
| 2 | Cowl FR Upper (AN GY MT) | 64210K64N00AGM |
|
| 2 | Cowl FR Upper (BLK) | 64210K64N00ZK |
|
| 2 | Cowl FR Upper (MT SO RED) | 64210K64N00ZJ |
|
| 2 | Cowl FR Upper (NI OR) | 64210K64N00NOR |
|
| 2 | Cowl FR Upper (AS BL MT) | 64210K64N00ASB |
|
| 2 | Cowl FR Upper (WN RD) | 64210K64N00WRD |
|
| 2 | Cowl Front Upper MT GN BL | 64210K64NP0ZF |
|
| 3 | Washer Screen Set | 64205166610 |
|
| 4 | Cowl FR Upper (MT GN BL) | 64210K64N00ZC |
|
| 6 | Stay Comp FR Upper Cowl | 64221K64N00 |
|
| 7 | Stay R Number Plate | 64222K64N00 |
|
| 8 | Stay Coupler | 64223K64N00 |
|
| 9 | Panel Meter | 64224K64N00 |
|
| 10 | Cowl FR Lower | 64230K64N00 |
|
| 10 | Cowl Front Lower | 64230K64NP0 |
|
| 11 | Stay L Number plate | 64232K64N00 |
|
| 12 | Cover R FR Side (MT GN BL) | 64340K64N00ZA |
|
| 12 | Cover R Front Side (MT GN BL) | 64340K64J00ZA |
|
| 13 | Cover L FR Side (MT GN BL) | 64440K64N00ZA |
|
| 14 | Mirror Assy R Back | 88110K64N01 |
|
| 15 | Mirror Assy L Back | 88120K64N01 |
|
| 16 | Screw Special 5MM | 90104KPH900 |
|
| 17 | Nut Cowl Set M5X0.8 | 90111KW3003 |
|
| 18 | Bolt Special 5X16 | 90119K45N00 |
|
| 19 | Bolt Socket 6X13 | 90130KPPT00 |
|
| 20 | Screw Pan 5X14 | 90134KPPT00 |
|
| 21 | Nut Spring 5MM | 90320GC3000 |
|
| 22 | Nut Hex Cap | 90443107000 |
|
| 23 | Washer Thrust 5MM | 90504964000 |
|
| 24 | Push Clip Air Int Duct | 90601PV3003 |
|
| 25 | Clip Wire Harness | 90650SD9003 |
|
| 26 | Clip Snap Fit (P0) | 90666SDAA01 |
|
| 27 | Nut Clip 5MM. | 90677KANT00 |
|
| 28 | Screw Tapping 4X12 | 9390324380 |
|
| 29 | Bolt Flange 8X32 | 958010803200 |
|
| 30 | Bolt Flange 6X10 | 960010601000 |
|
