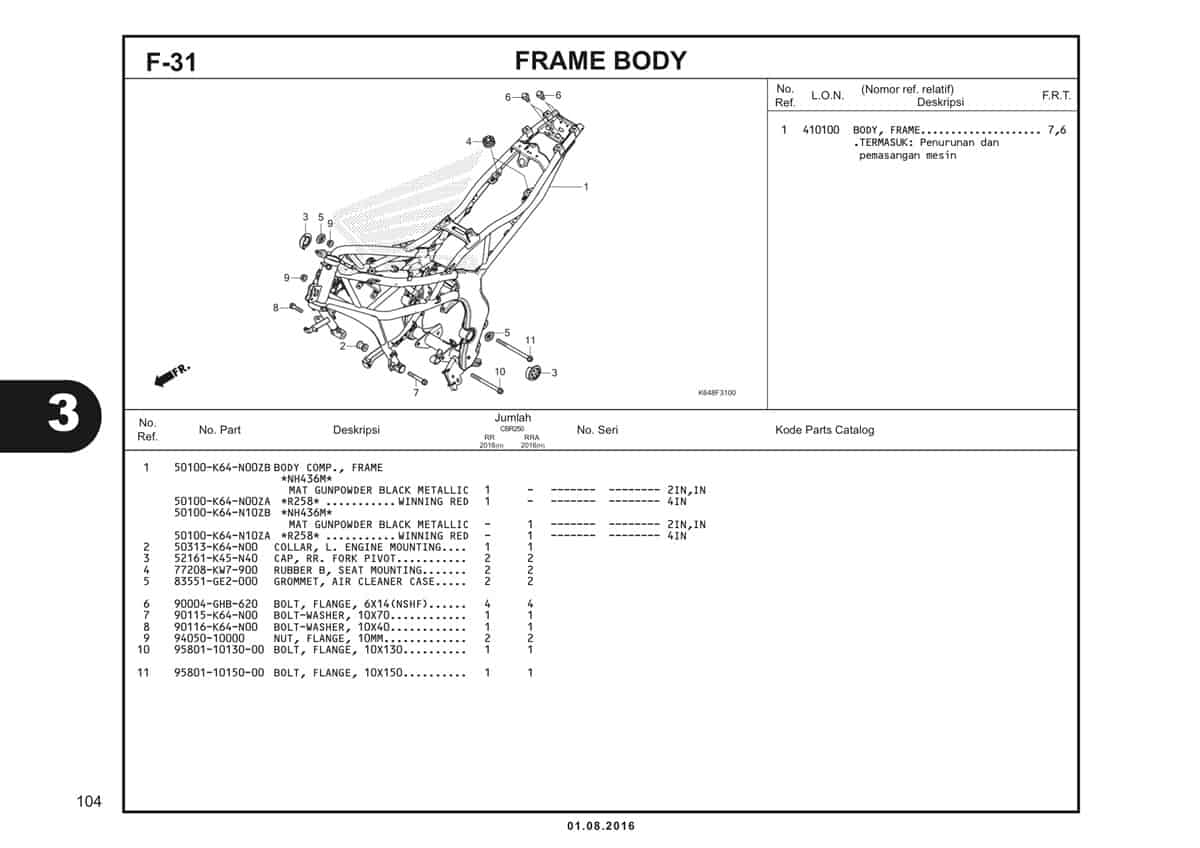

F31 – Frame Body – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Body Comp Frame Part Number : `50100K64N00ZB`
1	Body Comp Frame Part Number : `50100K64N00ZA`
1	Body Comp Frame Part Number : `50100K64N10ZB`
1	Body Comp Frame Part Number : `50100K64N10ZA`
2	Collar L Engine Mounting Part Number : `50313K64N00`
3	Cap RR Fork Pivot Part Number : `52161K45N40`
4	Rubber B Seat Mounting Part Number : `77208KW7900`
5	Grommet A/C Part Number : `83551GE2000`
6	Bolt Flange 6X14 (NSHF) Part Number : `90004GHB620`
7	Bolt-Washer 10X70 Part Number : `90115K64N00`
8	Bolt-Washer 10X40 Part Number : `90116K64N00`
9	Nut Flange 10MM Part Number : `9405010000`
10	Bolt Flange 10X130 Part Number : `958011013000`
11	Bolt Flange 10X150 Part Number : `958011015000`
